VPN tunnel between SCALANCE M-800 and S612
3.3 Secure VPN tunnel with certificates
SCALANCE M-800 Getting Started
130 Getting Started, 06/2015, C79000-G8976-C337-04

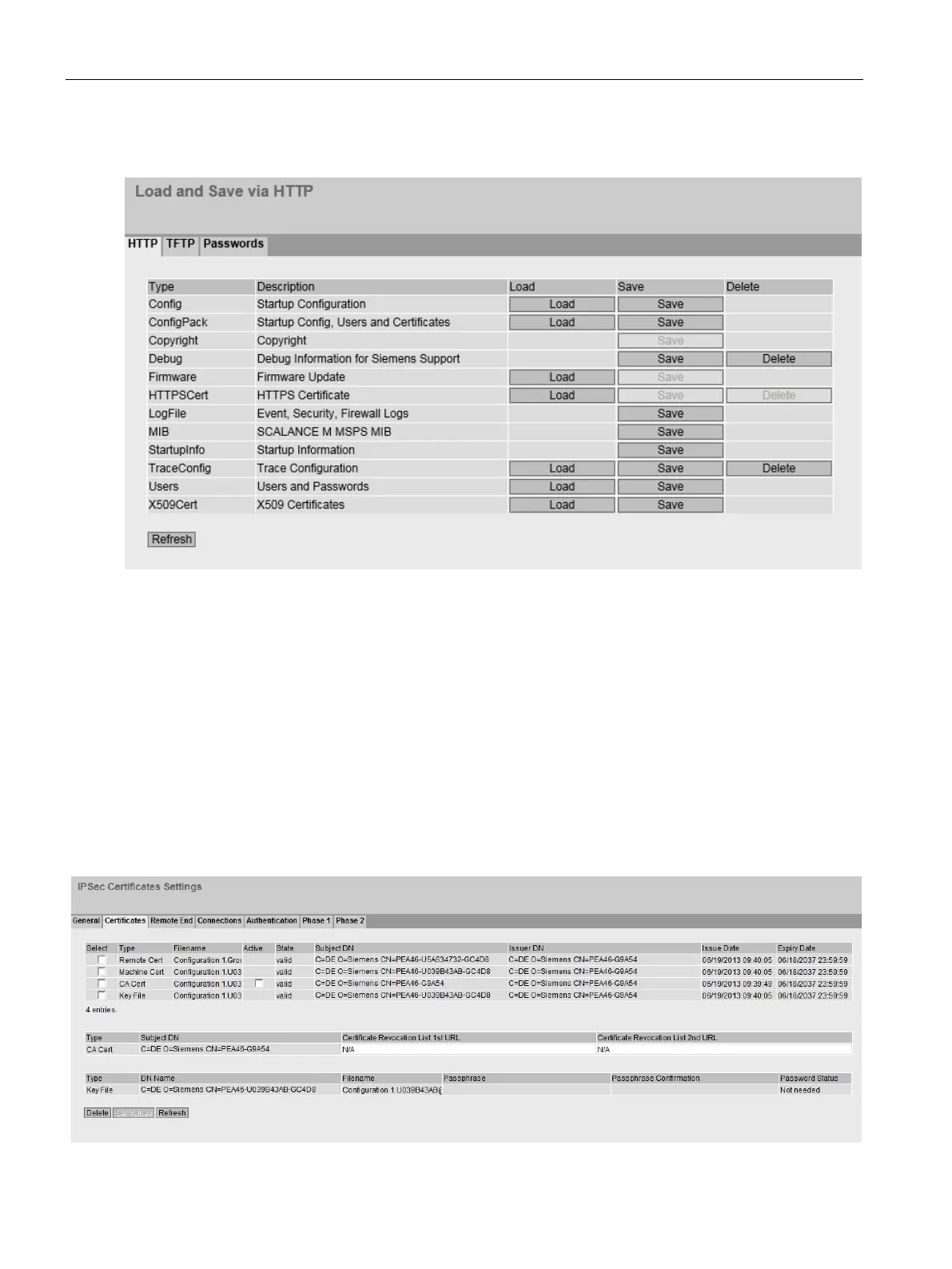

4. Click on the "HTTP" tab in the content area.
5. Click on the "Load" button beside "IPSecCert" or "X509cert". The dialog for loading a file
is opened.
Navigate to the remote certificate.
6. Click the "Open" button in the dialog.
The file is now loaded on the device. After loading successfully, confirm the next dialog
with "OK".
7. Repeat steps 5 and 6 for the PKCS12 file.
The certificates are loaded. With "Security" > "IPSec VPN" > "Certificates", you can display
the certificates. The loaded certificates must have the status "valid".
