1.3.2
SHDSL in 4-wire mode
1.3.2.1
Procedure in principle
In this example, the two SHDSL interfaces will be put together to form a single connection
with a higher transmission rate.
The SCALANCE M826 is in bridge mode. In this mode, the security features (IPsec VPN,
firewall, NAT/NAPT) are not available.

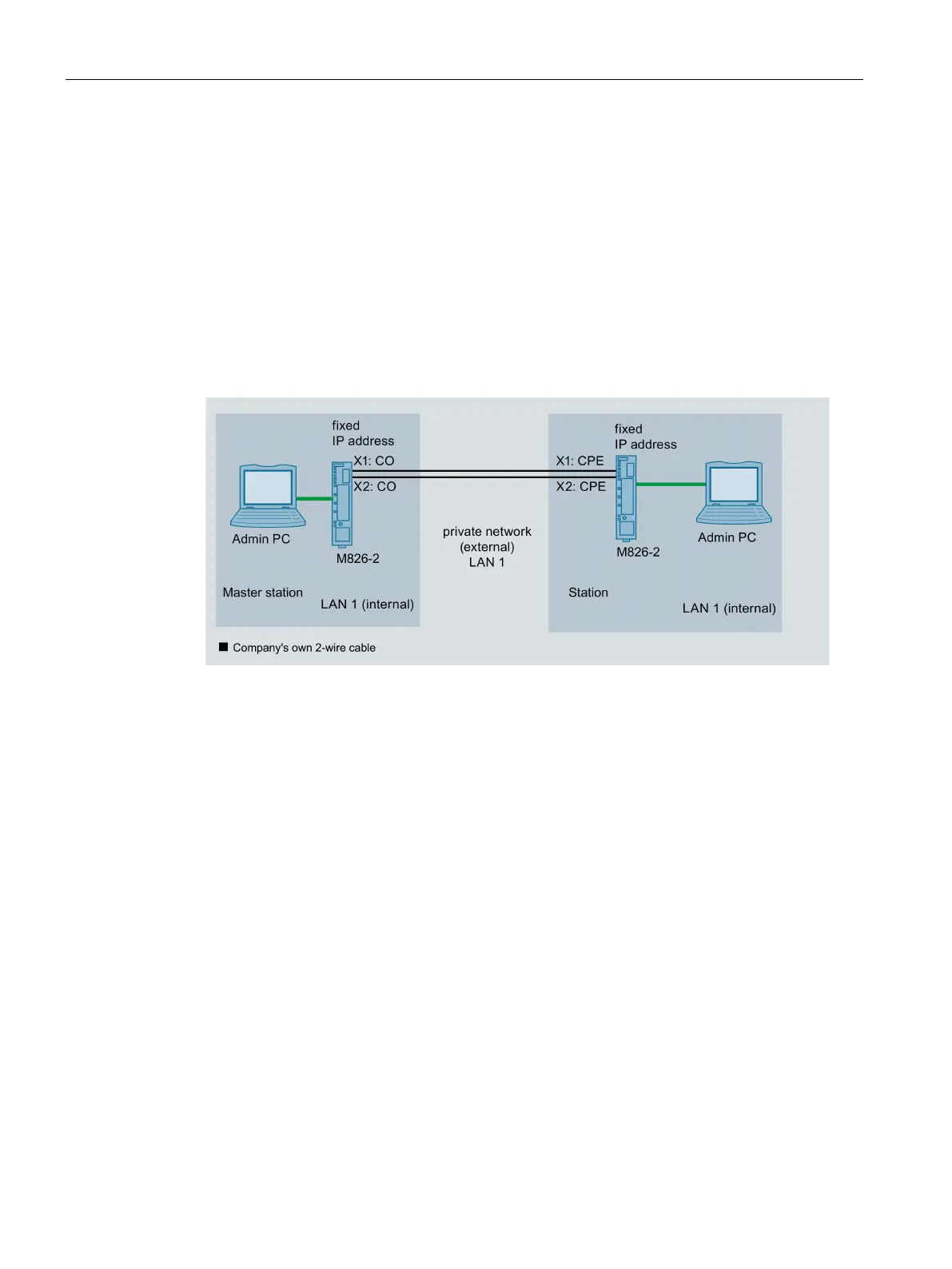

Setup
The network nodes are in the same IP subnet
Master station - connection to SCALANCE M826
● In the test setup, in the master station, a network node is implemented by an Admin PC
connected to an Ethernet interface of the M826.
– Admin PC: represents a node of the master station
● Connection to the private network:
– Cable connection via the SHDSL interface of the M826 on company owned 2-wire
cable.
Station - connection to SCALANCE M-800
● In the test setup, in the station, a network node is implemented by an Admin PC
connected to an Ethernet interface of the M826.
– Admin PC: represents a node of the station
● Connection to the private network:
– Cable connection via the SHDSL interface of the M826 on company owned 2-wire
cable.
