VPN tunnel between SCALANCE M-800 and S612
3.3 Secure VPN tunnel with certificates
SCALANCE M-800 Getting Started
132 Getting Started, 06/2015, C79000-G8976-C337-04
3.3.3.3
Configuring the VPN remote end
Procedure

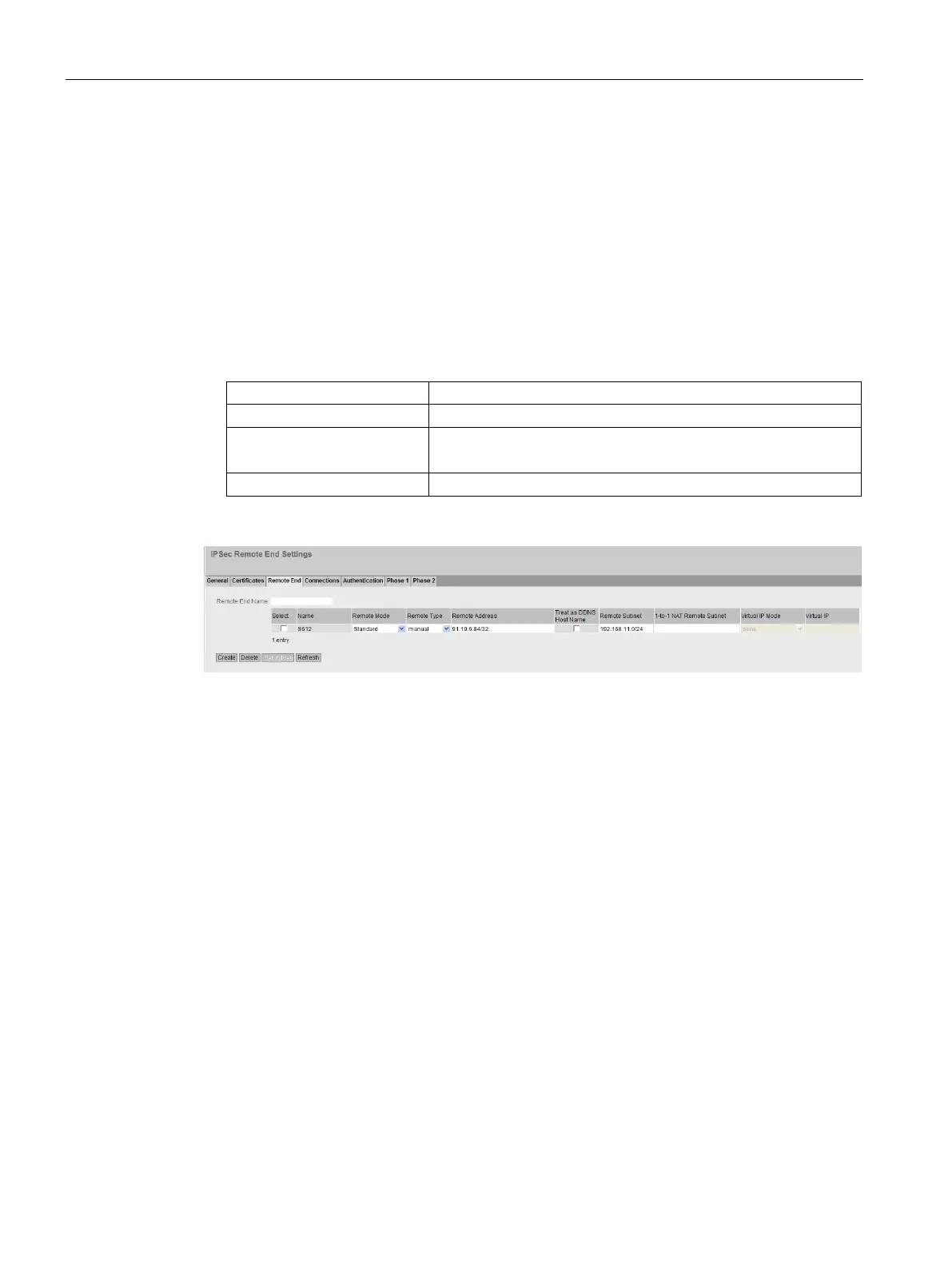

1. Click on "Security" > "IPSec VPN" in the navigation area and on the "Remote End" tab in
the content area.
2. Enter the name of the VPN partner (tunnel endpoint) in "Remote End Name", e.g. S612.
3. Click "Create". A new row is created in the table.
4. Configure the VPN remote end with the following settings from the configuration file:
Remote Mode
Standard
Remote Typ
manual
Remote Address 91.19.6.84/32
WAN IP address of the DSL router
Remote Subnet
192.168.11.0/24
5. Click "Set Values".
3.3.3.4
Configuring a VPN connection
Requirement
● The VPN remote end has been created.
Procedure
1. Click on "Security" > "IPSec VPN" in the navigation area and on the "Connection" tab in
the content area.
2. In "Connection Name" enter a name for the VPN connection.
3. Click "Create". A new row is created in the table.
