VPN tunnel between SCALANCE M-800 and security CPs
4.2 Secure VPN tunnel with PSK
SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
157
Configuring SCALANCE M-800
4.2.3.1

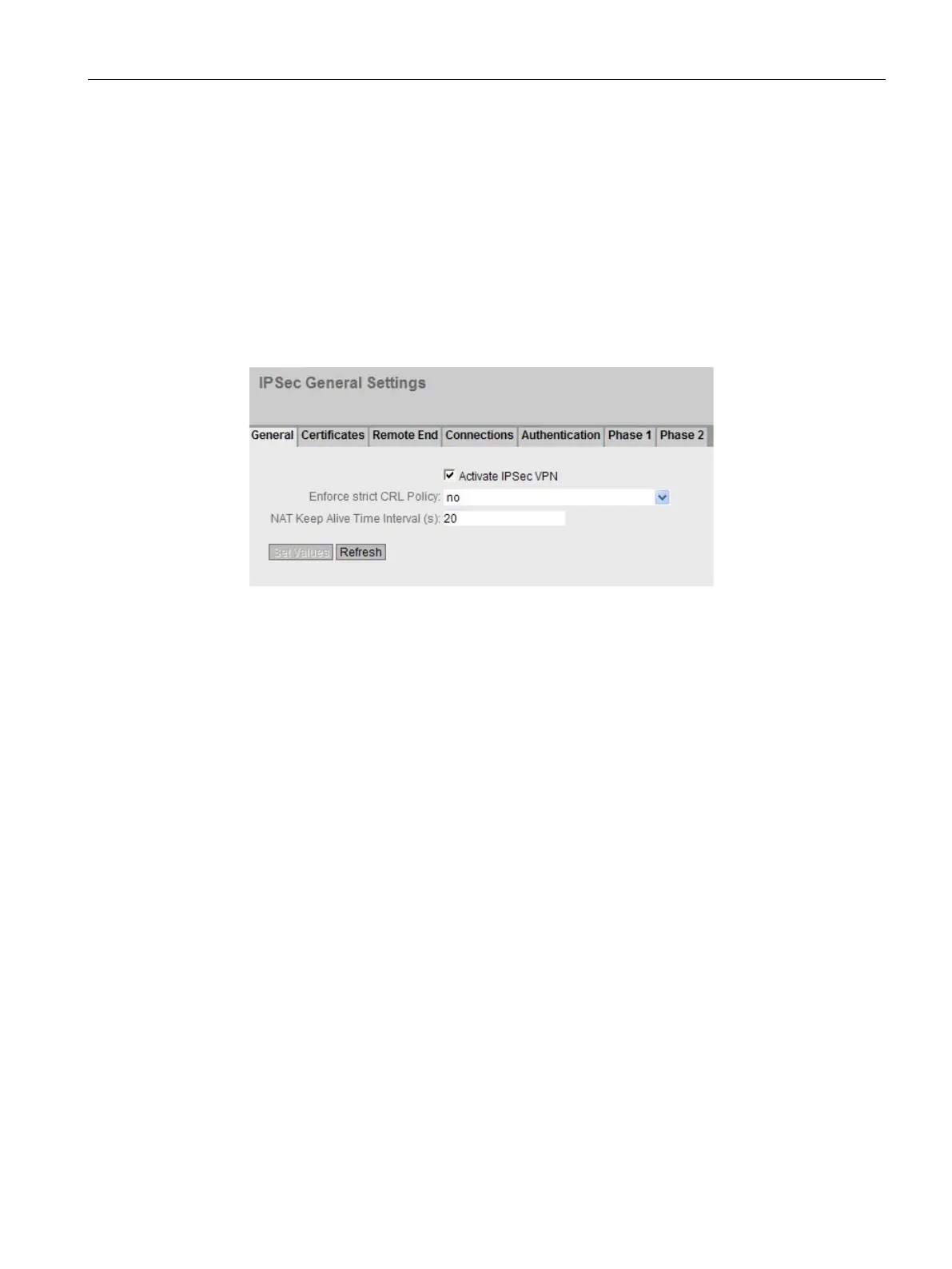

1. Click on "Security" > "IPSec VPN" in the navigation area and on the "General" tab in the
content area.
2. Select Activate IPSec VPN".
3. Click "Set Values"
Configuring the VPN remote end
Procedure
1. Click on "Security" > "IPSecVPN" in the navigation area and on the "Remote End" tab in
the content area.
2. Enter the name of the VPN partner (tunnel endpoint) in "Remote End Name", e.g.
CP1628.
3. Click "Create". A new row is created in the table.
