SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
143
VPN tunnel between SCALANCE M-800 and security
CPs
4
4.1
Procedure in principle
In these examples, a secure VPN tunnel is configured between a SCALANCE M-800 and the
CP 1628.
● Example 1: Secure VPN tunnel with pre-shared keys (PSK)
● Example 2: Secure VPN tunnel with certificates
Instead of the CP 1628, a CP 343-1 Advanced or CP 434-1 Advanced can be used.

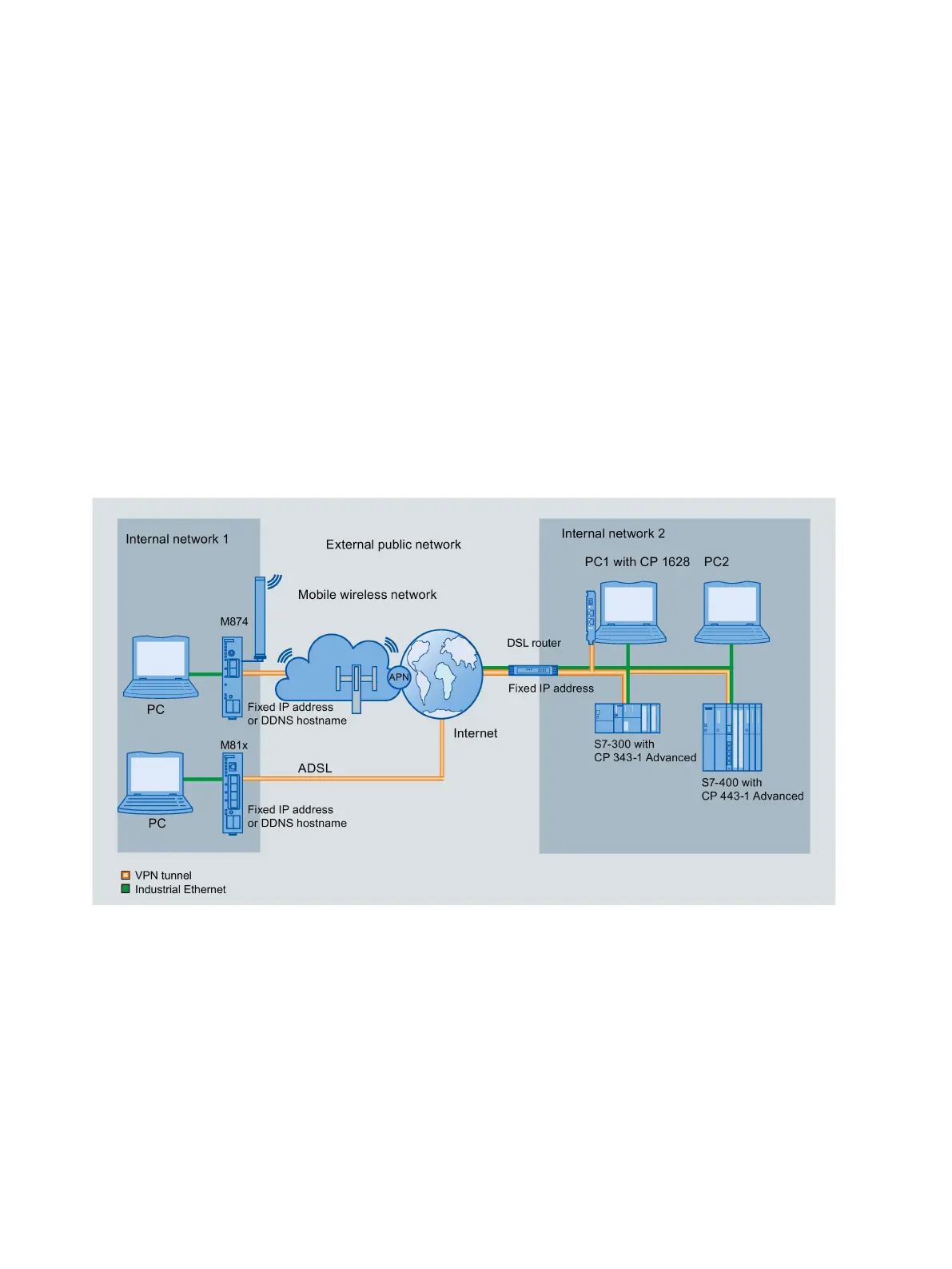

Structure
Internal network 1 - connection to SCALANCE M-800
● In the test setup, in the internal network, a network node is implemented by an Admin PC
connected to an Ethernet interface of the SCALANCE M.
– Admin PC: Represents a node in the internal network
– M-800: SCALANCE M module for protection of the internal network
● Connection to the external, public network.
– Wireless via the antenna of the M874 to the mobile wireless network.
– Wired via the RJ-45 jack of the M81x to ADSL.
