Connecting SCALANCE M-800 to WAN
1.3 Connecting M826 with SHDSL
SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
65
Configuring the SCALANCE M826 with the PST
Requirement
● The IP addresses within the IP subnet are unique.

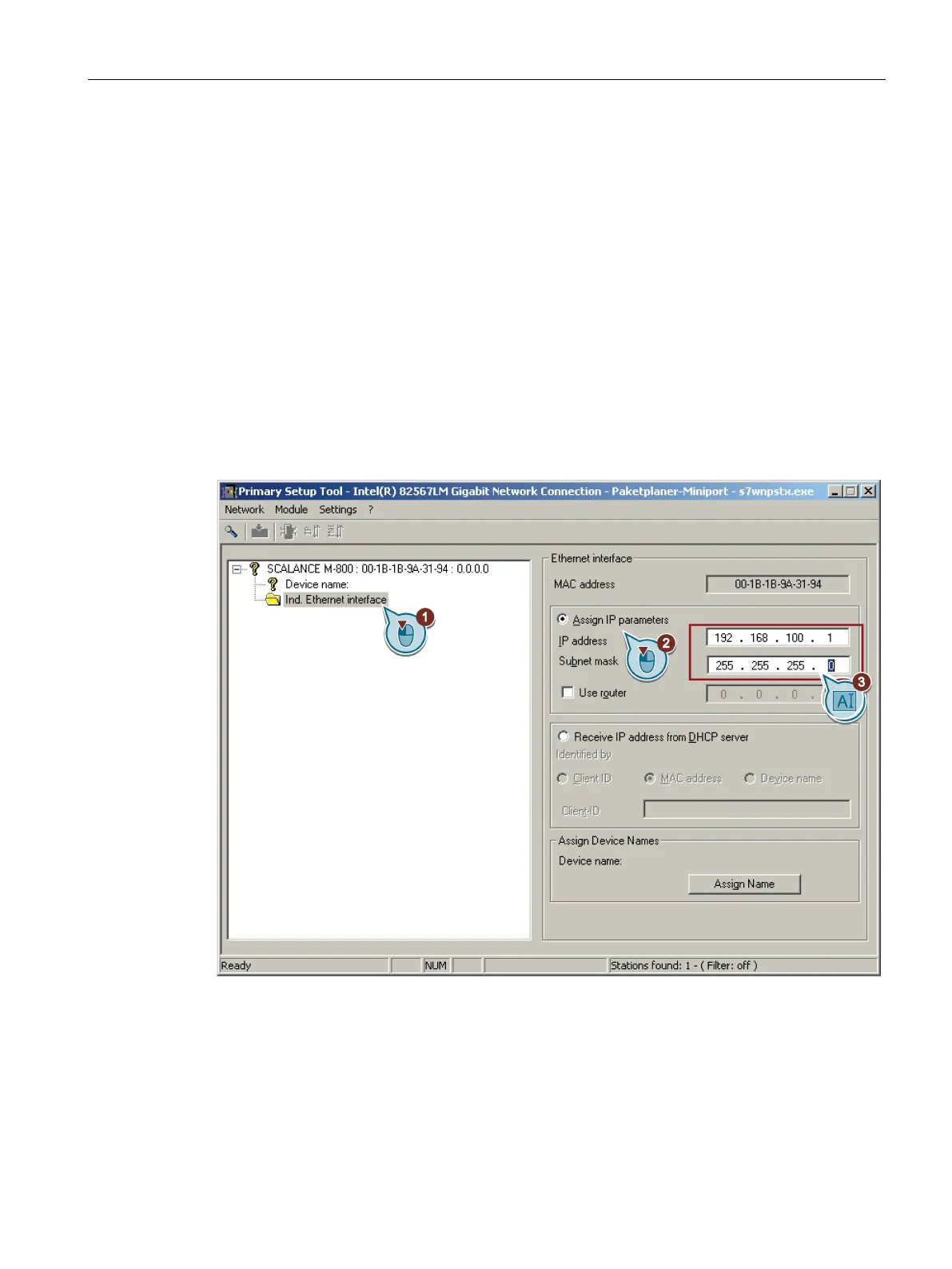

1. Start the Primary Setter Tool with "Start > SIMATIC > Primary Setup Tool".
If several network adapters are installed in the PC, select the network adapter connected
to the M826 in "Settings > Network adapter".
2. Click on the magnifier in the toolbar to start the search. Following the search, the M826 is
listed in the PST.
3. Enter the values assigned to the M826 from the "Settings used (Page 62)" table.
