Connecting SCALANCE M-800 to WAN
1.1 Connecting M874 with the mobile wireless network
SCALANCE M-800 Getting Started
18 Getting Started, 06/2015, C79000-G8976-C337-04

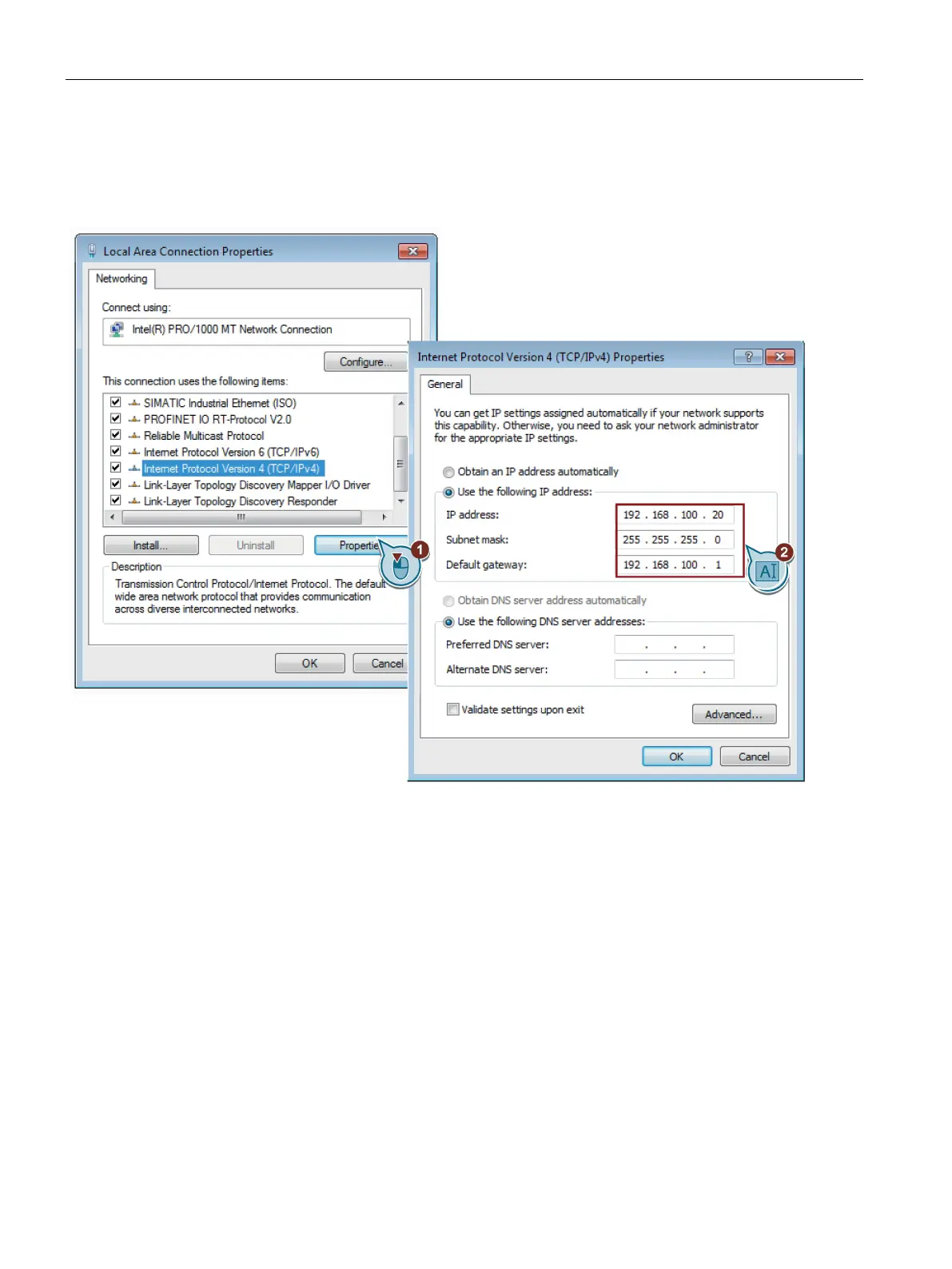

6. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box.
7. Enter the values assigned to the Admin PC from the table in the relevant boxes.
8. Confirm the dialogs with "OK" and close the Control Panel.
9. Enter the IP address "192.168.100.1" in the address box of the Web browser. If there is a
problem-free connection to the device, the login page of Web Based Management
(WBM)is displayed.
10.Log in with the user name "admin" and the modified password.
