Description of the device
3.2 Device views
SCALANCE XC-200
22 Operating Instructions, 07/2016, C79000-G8976-C442-01
3.2.3

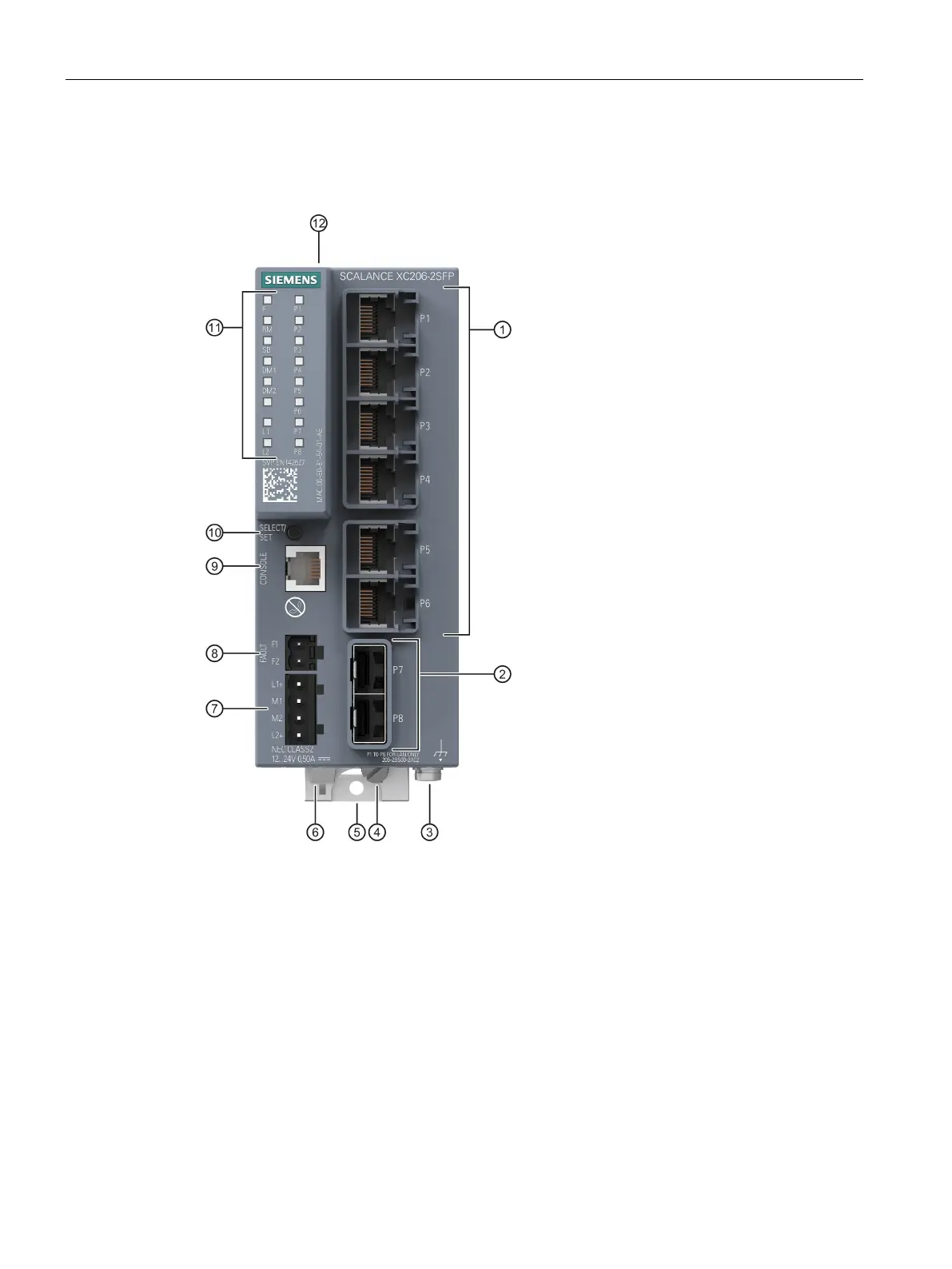

Device view of a SCALANCE XC206-2SFP
The following figure shows an overview of the components of the SCALANCE XC206-2SFP.
①
Electrical ports
⑦
Power supply
②
Pluggable transceiver slots
⑧
Signaling contact
③
Grounding screw
⑨
Serial interface
④
Knurled screw
⑩
"SELECT / SET" button
⑤
Securing bar
⑪
LED display
⑥
Levering aid for moving the securing bar with
a screwdriver
⑫
C-PLUG slot
