Description of the device
3.5 C-PLUG
SCALANCE XC-200
Operating Instructions, 07/2016, C79000-G8976-C442-01
35
Replacing the C-PLUG

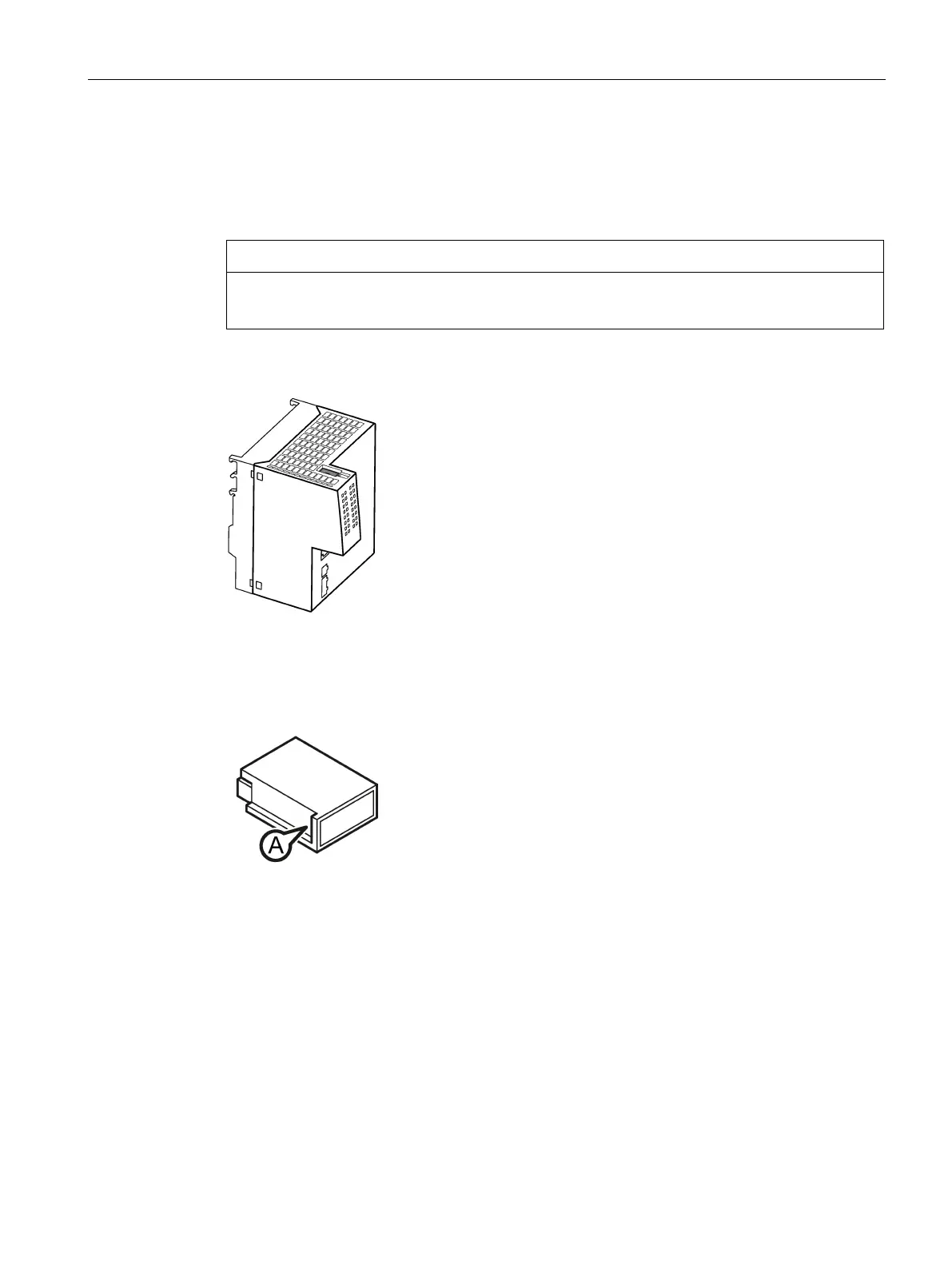

Position of the C-PLUG
Do not remove or insert a C-PLUG during operation
The C-PLUG may only be removed or inserted when the device is turned off.
The C-PLUG slot is on the top of the device housing.
Replacing a C-PLUG.
Removing a C-PLUG
1. Turn off the power to the device.
2. Insert a screwdriver between the front edge of the C-PLUG (A) and the slot and release
the C-PLUG.
3. Remove the C-PLUG.
