SCALANCE XC-200
Operating Instructions, 07/2016, C79000-G8976-C442-01
73
Dimension drawings
8
8.1
Dimension drawings SCALANCE XC-200
Note
Dimensions are specified in mm.
Front view SCALANCE XC206-2 (ST/BFOC), SCALANCE XC206-2 (SC), SCALANCE XC206-2SFP
and SCALANCE XC208
Securing bar in the rail mounting position
Securing bar in the wall mounting position (as supplied).

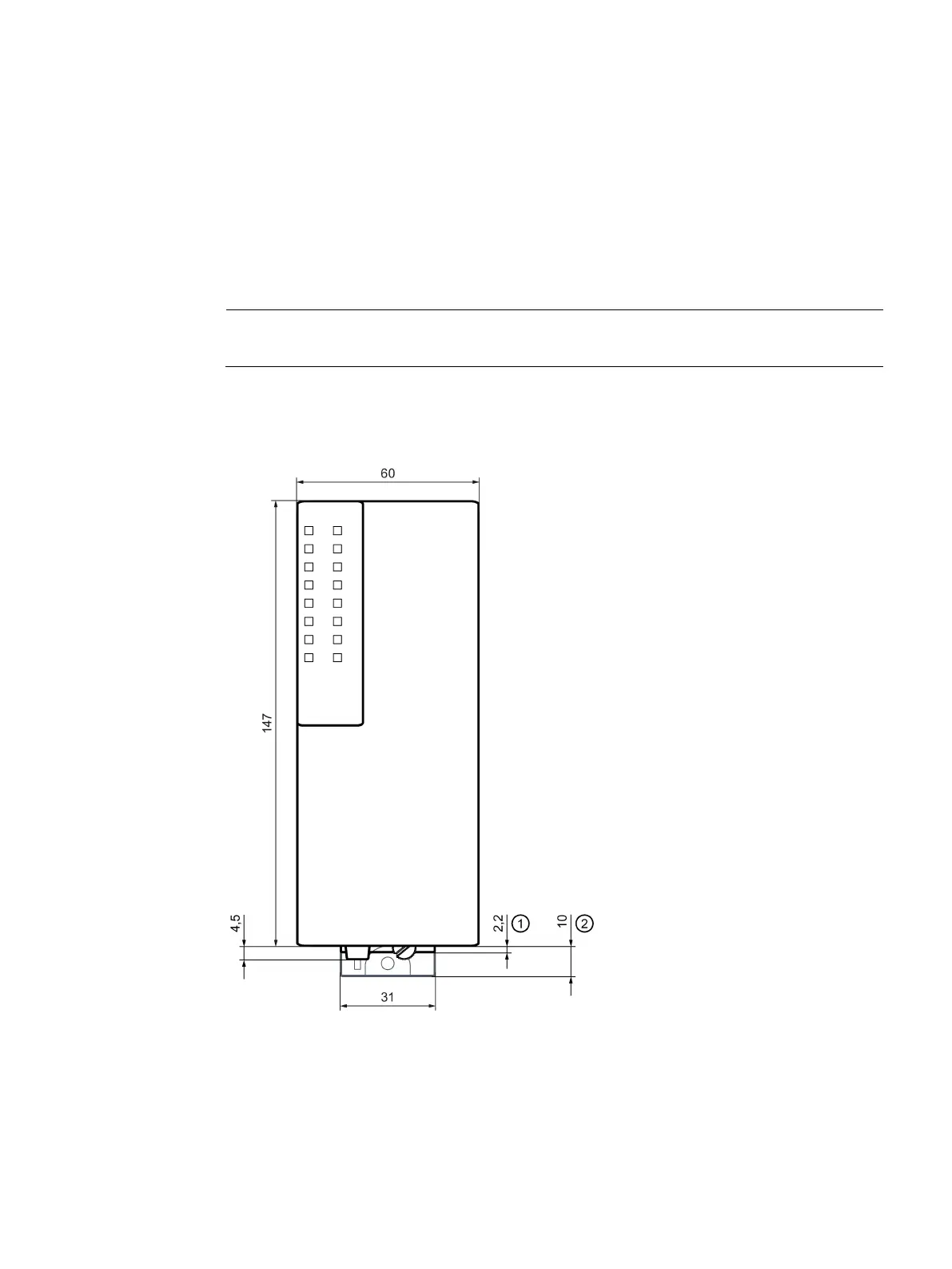

Figure 8-1 Width and height
