Dimension drawings
8.1 Dimension drawings SCALANCE XC-200
SCALANCE XC-200
74 Operating Instructions, 07/2016, C79000-G8976-C442-01

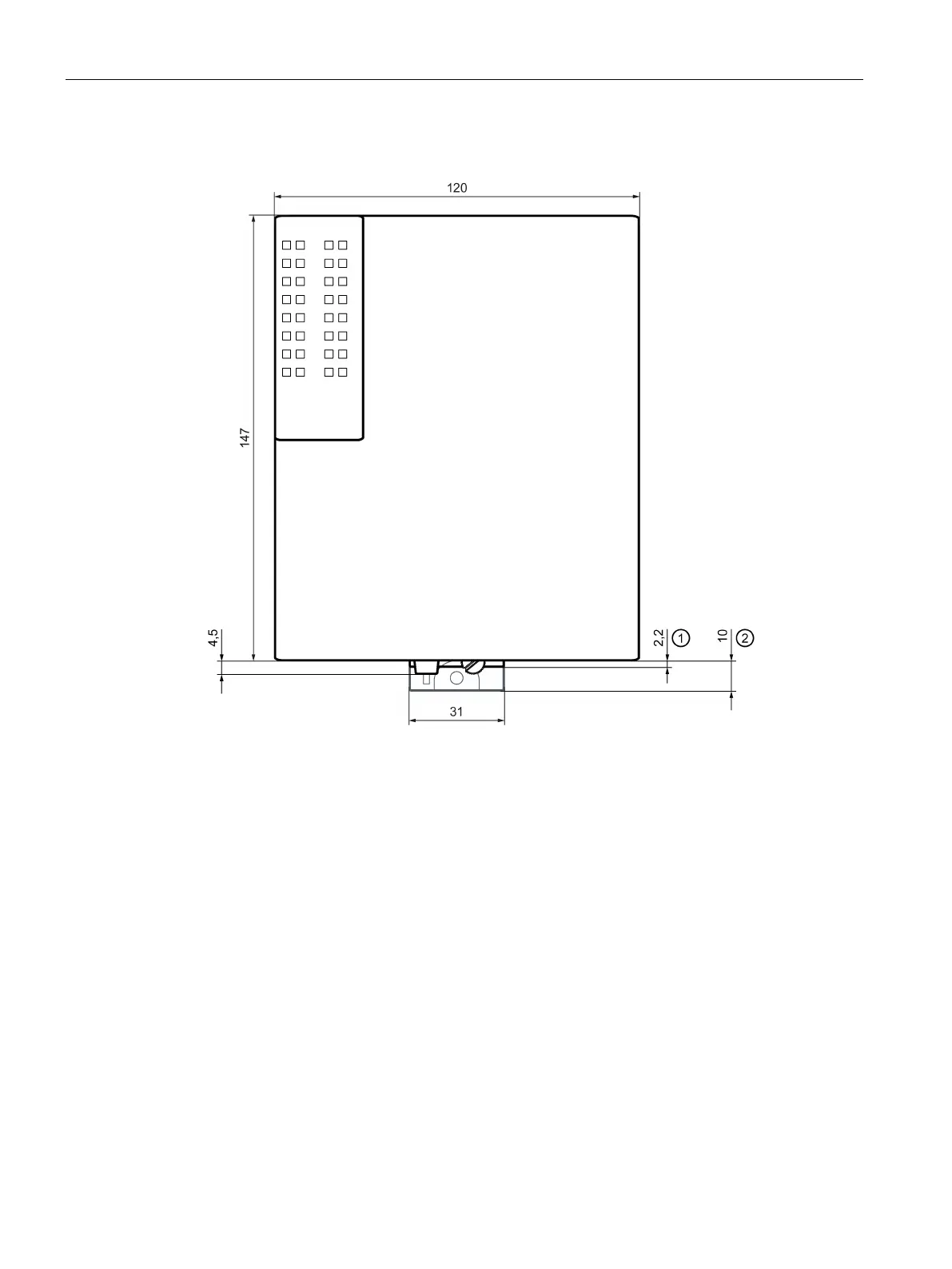

Front view SCALANCE XC216 and SCALANCE XC224
①
Securing bar in the rail mounting position
②
Securing bar in the wall mounting position (as supplied).
Figure 8-2 Width and height
