Dimension drawings
SCALANCE X-200
78 Operating Instructions, 03/2015, C79000-G8976-C284-06

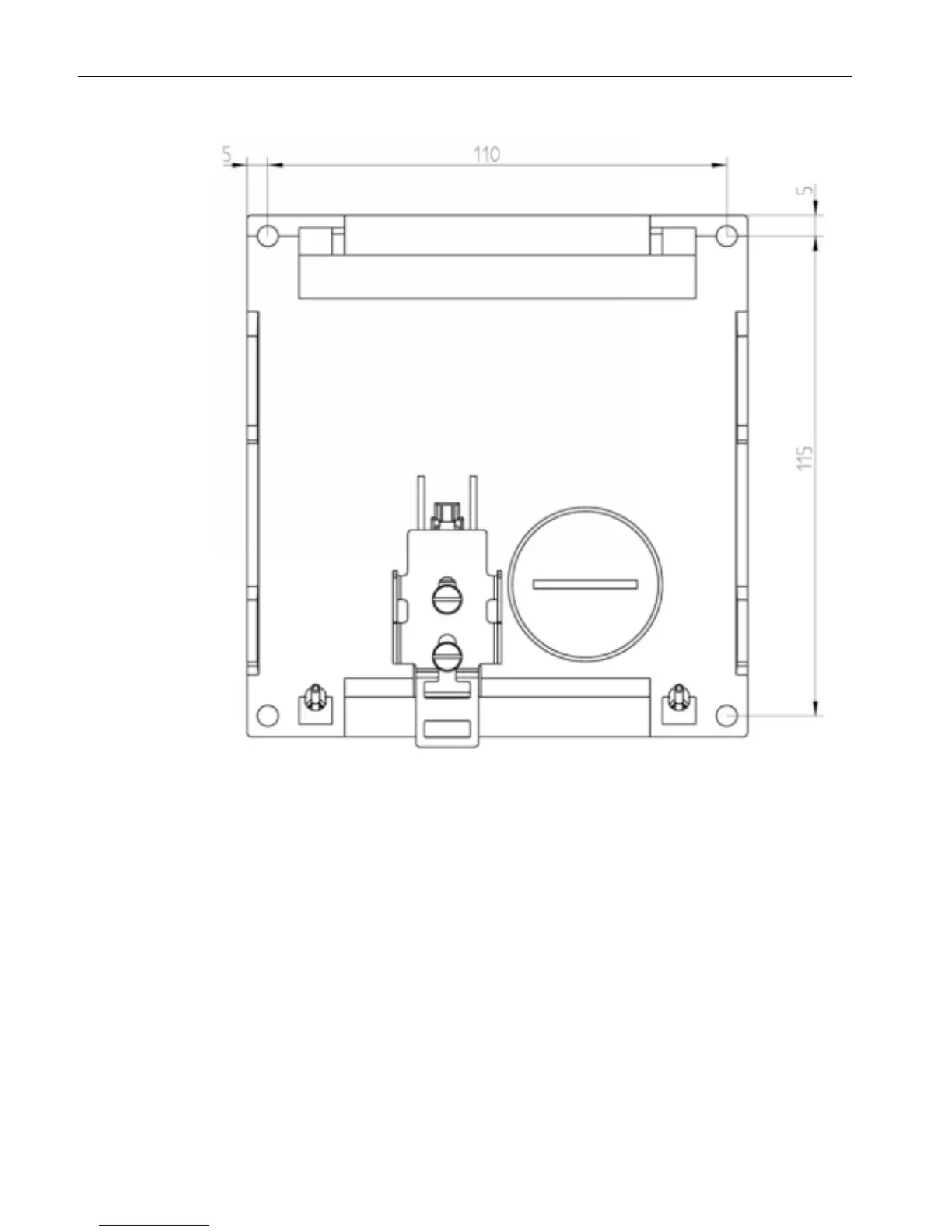

Figure A-2 Drilling pattern SCALANCE X212-2, X212-2LD and X216
