Installing and Wiring the C7-613

2-11

C7-613 Control System

A5E00138934-03

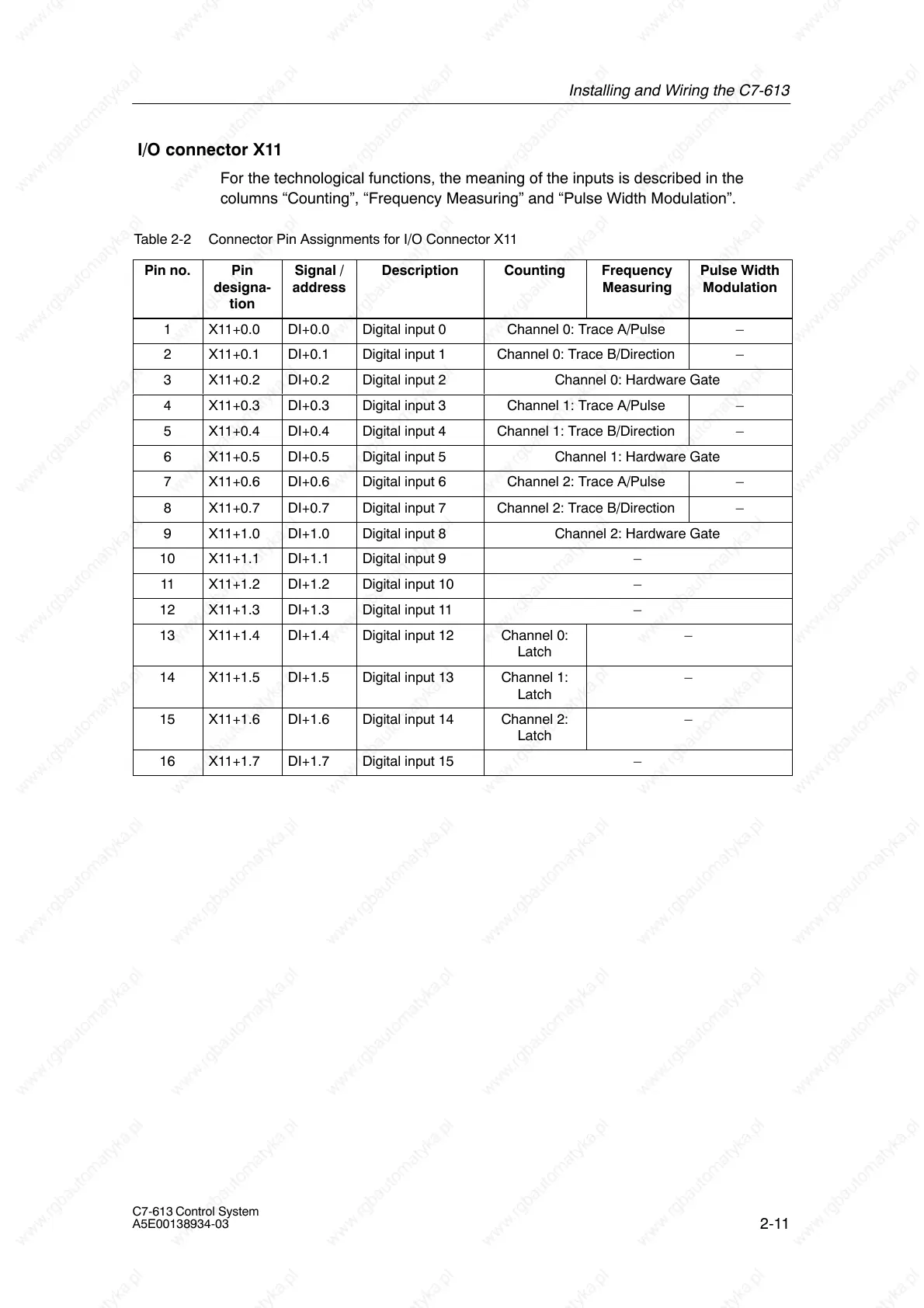

I/O connector X11

For the technological functions, the meaning of the inputs is described in the

columns “Counting”, “Frequency Measuring” and “Pulse Width Modulation”.

Table 2-2 Connector Pin Assignments for I/O Connector X11

Pin no.

designa-

tion

Signal /

address

Description Counting Frequency

Measuring

Pulse Width

Modulation

1 X11+0.0 DI+0.0 Digital input 0 Channel 0: Trace A/Pulse –

2 X11+0.1 DI+0.1 Digital input 1 Channel 0: Trace B/Direction –

3 X11+0.2 DI+0.2 Digital input 2 Channel 0: Hardware Gate

4 X11+0.3 DI+0.3 Digital input 3 Channel 1: Trace A/Pulse –

5 X11+0.4 DI+0.4 Digital input 4 Channel 1: Trace B/Direction –

6 X11+0.5 DI+0.5 Digital input 5 Channel 1: Hardware Gate

7 X11+0.6 DI+0.6 Digital input 6 Channel 2: Trace A/Pulse –

8 X11+0.7 DI+0.7 Digital input 7 Channel 2: Trace B/Direction –

9 X11+1.0 DI+1.0 Digital input 8 Channel 2: Hardware Gate

10 X11+1.1 DI+1.1 Digital input 9 –

11 X11+1.2 DI+1.2 Digital input 10 –

12 X11+1.3 DI+1.3 Digital input 11 –

13 X11+1.4 DI+1.4 Digital input 12 Channel 0:

Latch

–

14 X11+1.5 DI+1.5 Digital input 13 Channel 1:

Latch

–

15 X11+1.6 DI+1.6 Digital input 14 Channel 2:

Latch

–

16 X11+1.7 DI+1.7 Digital input 15 –
