Installing and Wiring the C7-613

2-12

C7-613 Control System

A5E00138934-03

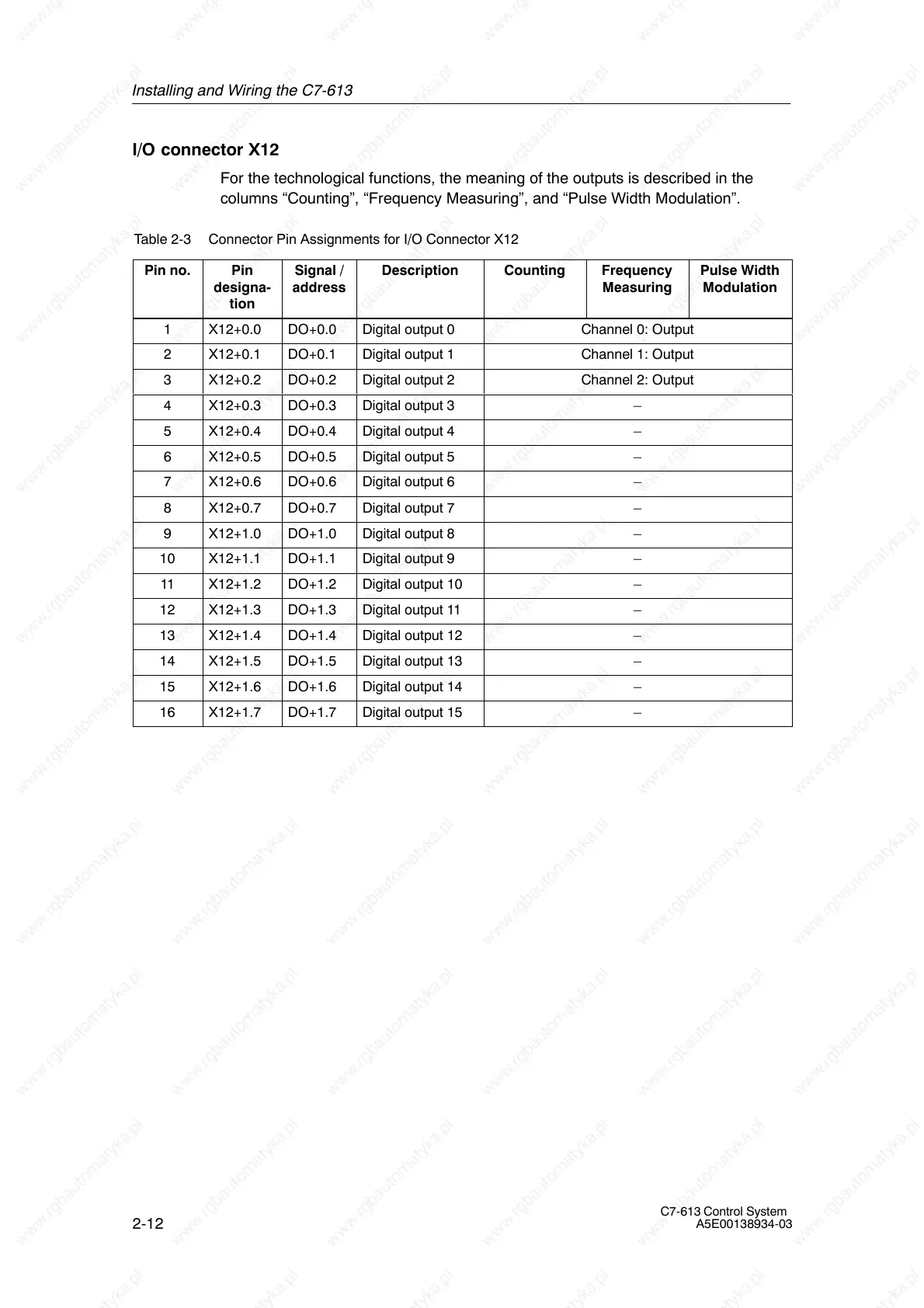

I/O connector X12

For the technological functions, the meaning of the outputs is described in the

columns “Counting”, “Frequency Measuring”, and “Pulse Width Modulation”.

Table 2-3 Connector Pin Assignments for I/O Connector X12

Pin no.

designa-

tion

Signal /

address

Description Counting Frequency

Measuring

Pulse Width

Modulation

1 X12+0.0 DO+0.0 Digital output 0 Channel 0: Output

2 X12+0.1 DO+0.1 Digital output 1 Channel 1: Output

3 X12+0.2 DO+0.2 Digital output 2 Channel 2: Output

4 X12+0.3 DO+0.3 Digital output 3 –

5 X12+0.4 DO+0.4 Digital output 4 –

6 X12+0.5 DO+0.5 Digital output 5 –

7 X12+0.6 DO+0.6 Digital output 6 –

8 X12+0.7 DO+0.7 Digital output 7 –

9 X12+1.0 DO+1.0 Digital output 8 –

10 X12+1.1 DO+1.1 Digital output 9 –

11 X12+1.2 DO+1.2 Digital output 10 –

12 X12+1.3 DO+1.3 Digital output 11 –

13 X12+1.4 DO+1.4 Digital output 12 –

14 X12+1.5 DO+1.5 Digital output 13 –

15 X12+1.6 DO+1.6 Digital output 14 –

16 X12+1.7 DO+1.7 Digital output 15 –
