Technical specifications
6.3 Pinout of the Ethernet interfaces
SIMATIC CC7
128 Operating Instructions, 10/2019, C79000-G8976-C503-02
Technical specifications - CloudConnect 716
During transportation -40 °C ... +70 °C
Relative humidity During operation ≤ 60 % at 25 °C, no condensation
Permitted contaminant concentration
Corrosive gas test according to ISA-S71.04 severity level G1, G2, G3
• SO
2
• H
2
S
• < 0.5 ppm
• < 0.1 ppm
Design, dimensions and weight
Module format
Compact module S7-1500
Degree of protection
IP20
Weight
400 g
Dimensions (W x H x D)
35 x 147 x 127 mm
Mounting type
• 35 mm DIN rail mounting
• S7-300 standard rail mounting
• S7-1500 standard rail mounting
• Wall mounting
*
The current load due to an external consumer connected between VP (pin 6) and DGND (pin 5) must not exceed a maxi-
mum of 15 mA (short-circuit proof) for bus termination.
For further data, refer to section Application and functions (Page 11).

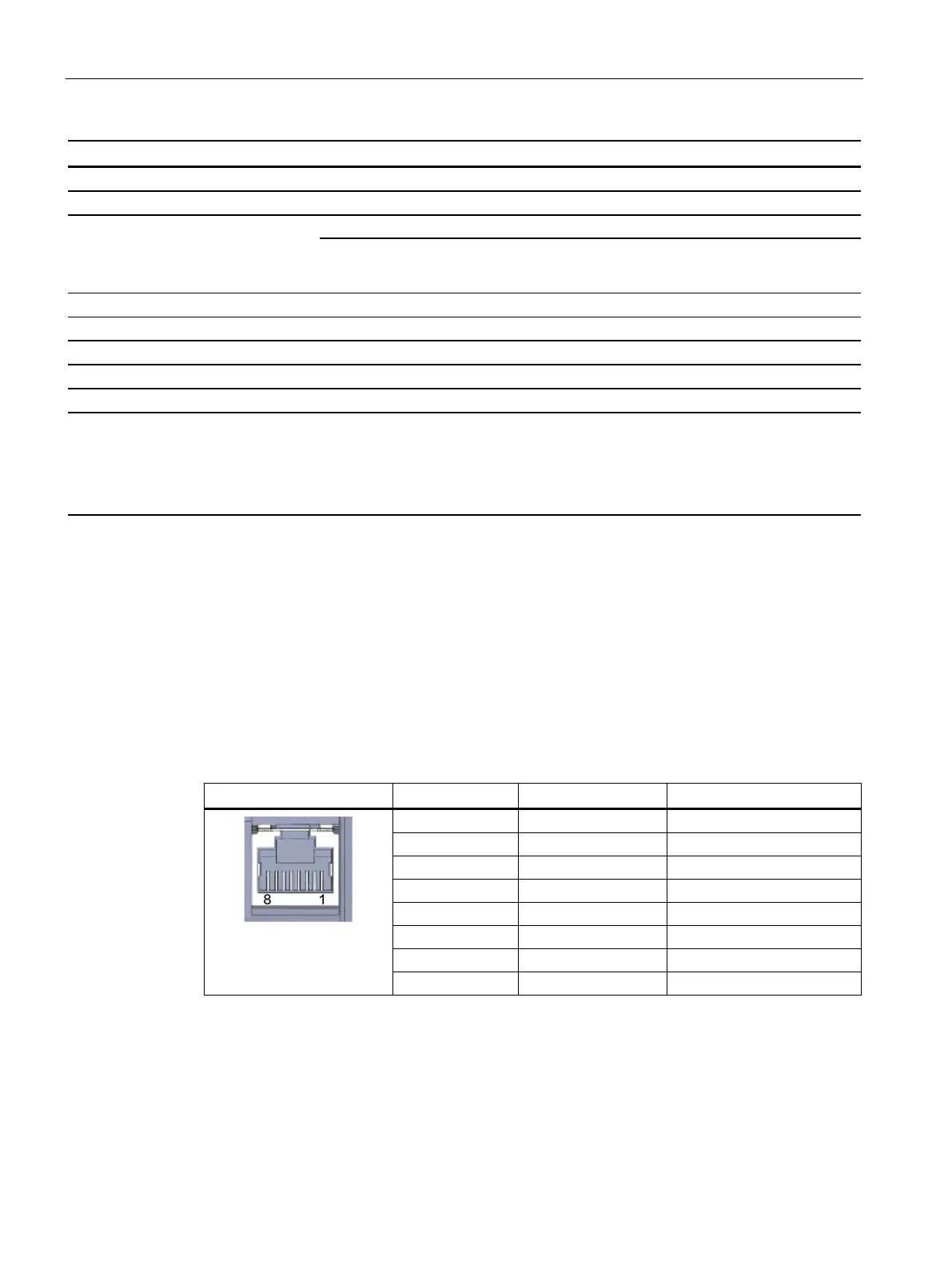

6.3 Pinout of the Ethernet interfaces
Pinout of the gigabit Ethernet interfaces
The table below shows the pin assignment of the two interfaces P1 and P2.
View of the RJ-45 jack
Pin
Signal name
Assignment
1
D1+
D1+ bidirectional
2
D1-
D1- bidirectional
3
D2+
D2+ bidirectional
4
D3+
D3+ bidirectional
5
D3-
D3- bidirectional
6
D2-
D2- bidirectional
7
D4+
D4+ bidirectional
8
D4-
D4- bidirectional
