Installation, wiring, commissioning
3.2 Installation
SIMATIC CC7
Operating Instructions, 10/2019, C79000-G8976-C503-02
37

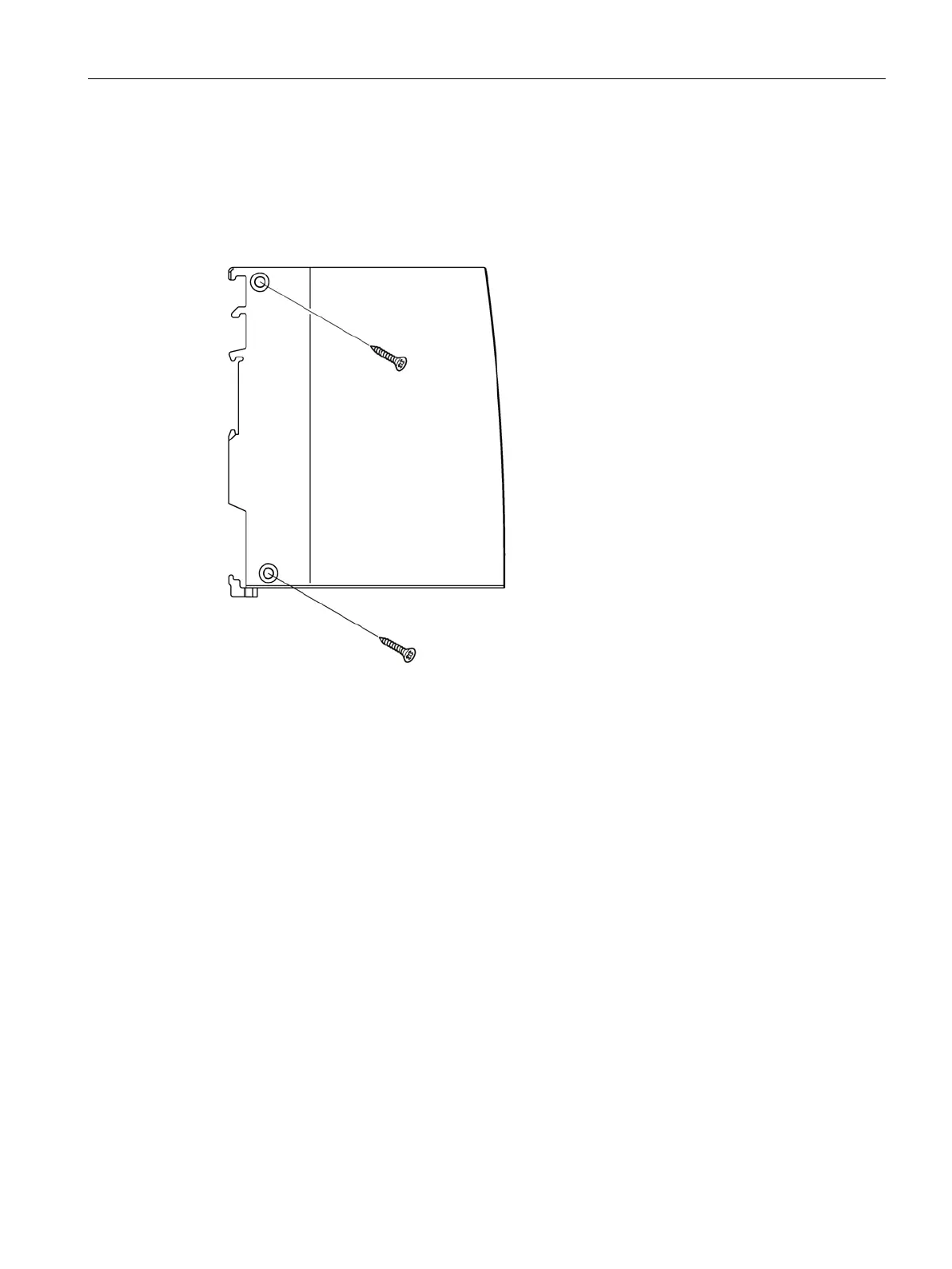

Wall mounting
1. Prepare the drill holes for wall mounting. For the dimensions, refer to the section
"Dimension drawings (Page 135)".
2. Secure the device to the wall with two screws (4 mm).
