Product overview
4.3 Sample configuration
CPU 1515SP PC2 (F/T/TF)
Operating Instructions, 09/2018, A5E42603425-AA
21
Sample configuration

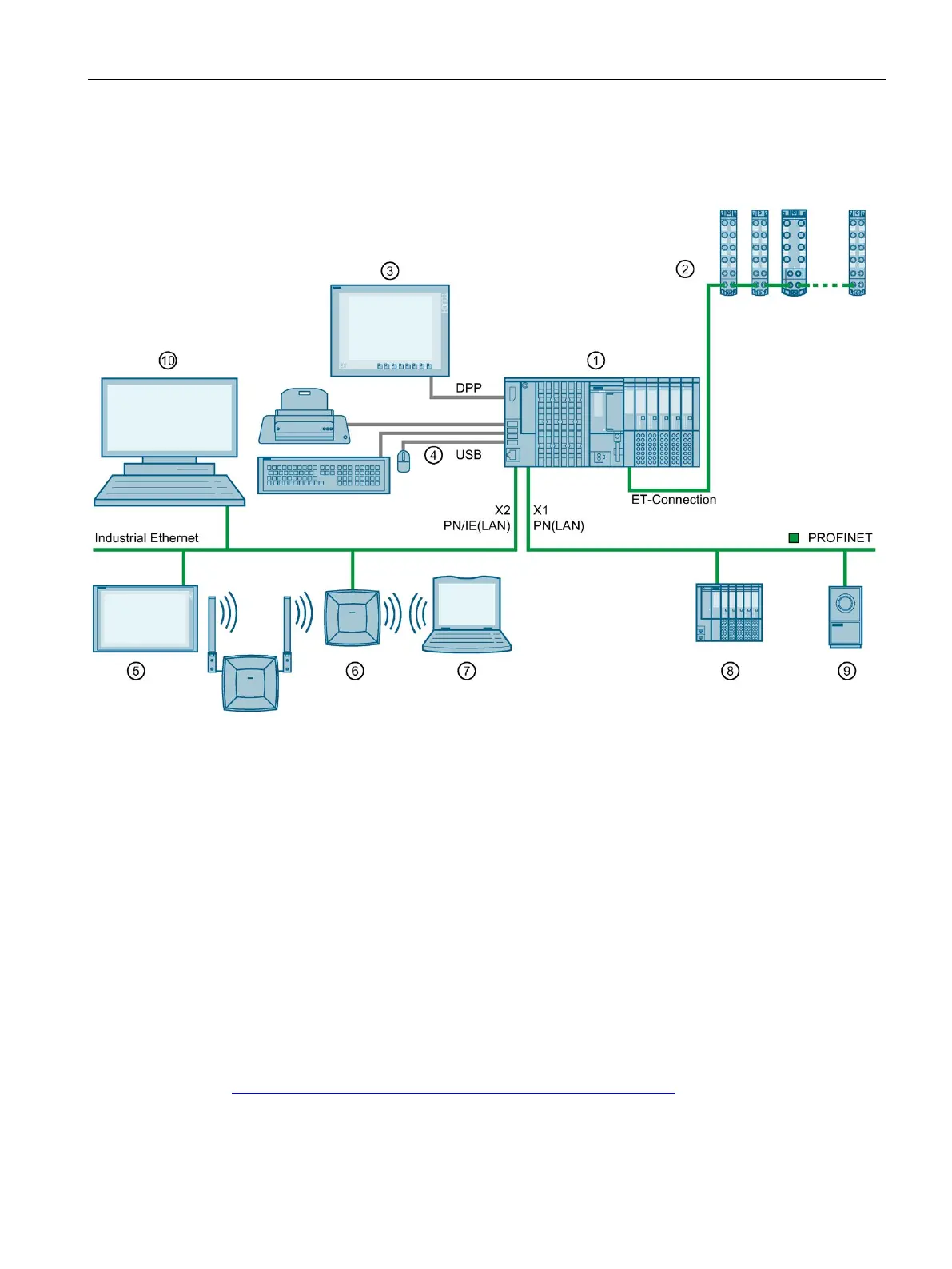

The following figure shows a sample configuration with the CPU 1515SP PC2:
①
CPU 1515SP PC2, I/O modules, server module, BusAdapter
②
ET 200AL modules with ET-Connection
③
Flat Panel - Wide Screen Display
④
USB devices: Keyboard, mouse, printer ...
⑤
Industrial Thin Client ITC
⑥
SCALANCE W786
⑦
Field PG
⑧
PROFINET IO device
⑨
Camera
⑩
PC/Programming device
Figure 4-2 Configuration example with the CPU 1515SP PC2
Reference
You can find more information about configuring the ET 200AL modules in the system
manual ET 200AL distributed I/O system
(https://support.industry.siemens.com/cs/ww/en/view/89254965
).
