Product overview
4.4 Components
CPU 1515SP PC2 (F/T/TF)
Operating Instructions, 09/2018, A5E42603425-AA
23
Component
Function
Figure

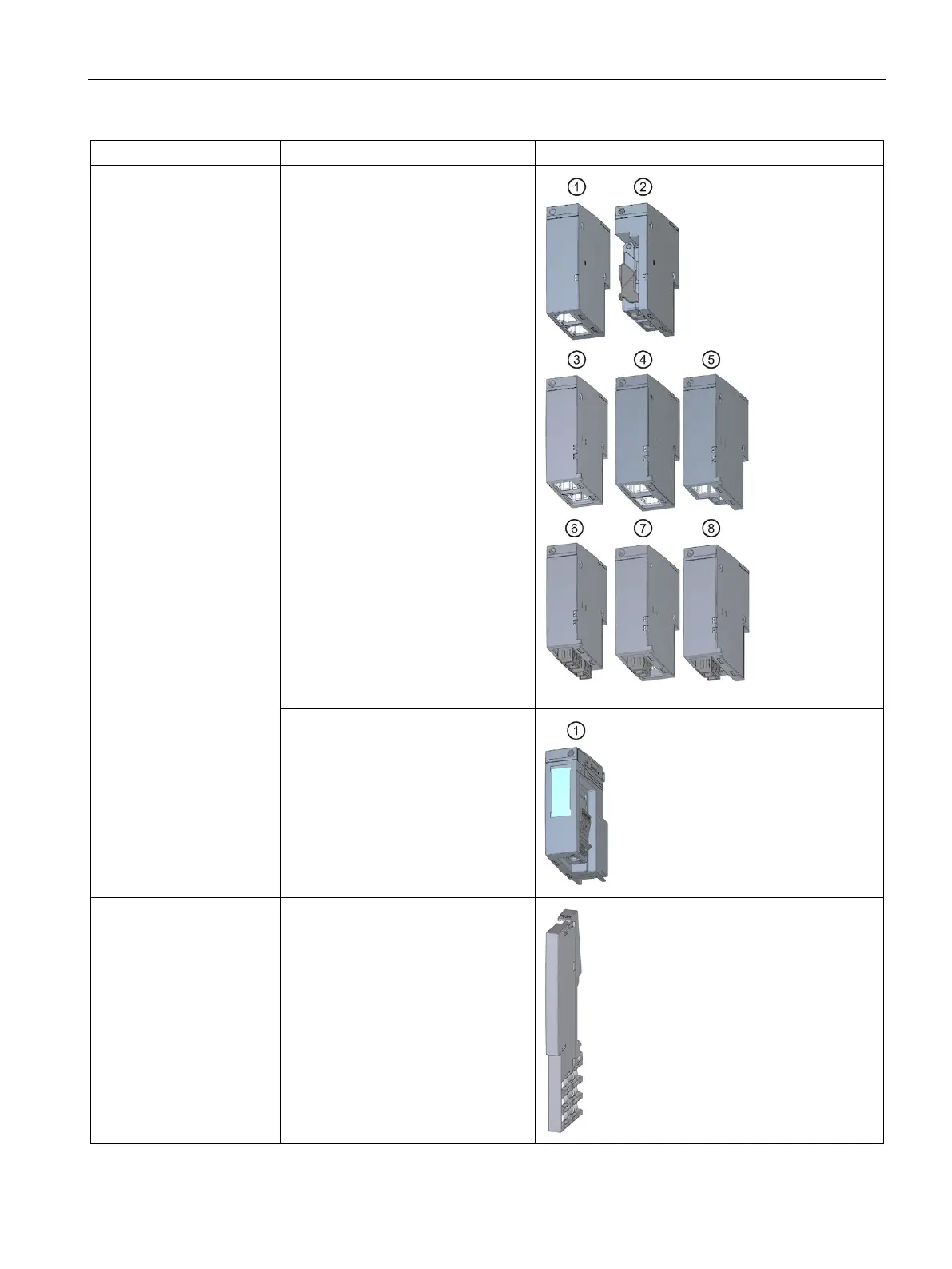

BusAdapter The BusAdapter allows free selection
of the connection technology for
PROFINET IO.
The following versions are available
for CPU 1515SP PC2:
• For standard RJ45 connector
(BA 2×RJ45) ①
• For direct connection of the bus
cable (BA 2×FC) ②
• For POF/PCF fiber-optic cable
(BA 2xSCRJ) ③
• As media converter for POF/PCF
fiber-optic cable ⇔ standard RJ45
connector (BA SCRJ/RJ45)
④
• As media converter for POF/PCF
fiber-optic cable ⇔ direct connec-
tion of the bus cable
(BA SCRJ/FC)
⑤
• For glass fiber-optic cable
(BA 2xLC) ⑥
• As media converter for glass fiber-
optic cable ⇔ standard RJ45 con-
nector (BA LC/RJ45)
⑦
• As media converter for glass fiber-
optic cable ⇔ direct connection of
the bus cable (BA LC/FC)
⑧
For mixed configuration with an
ET 200AL , you require the
BusAdapter BA-Send 1xFC
①
(plugged into the BaseUnit BU-Send).
Connect the bus cable for ET-
Connection to the BusAdapter
BA-Send 1xFC.
Server module The server module completes the
configuration of the
CPU 1515SP PC2 with I/O modules.
The server module is included in the
CPU's scope of delivery.
