Wiring
4.5 Connecting an encoder
F-TM ServoDrive
Equipment Manual, 02/2020, A5E47579503-AA
29
4.5.3 Connecting the 24 V digital input
Connecting a 24 V digital input
DI
24 V digital input
M
Ground

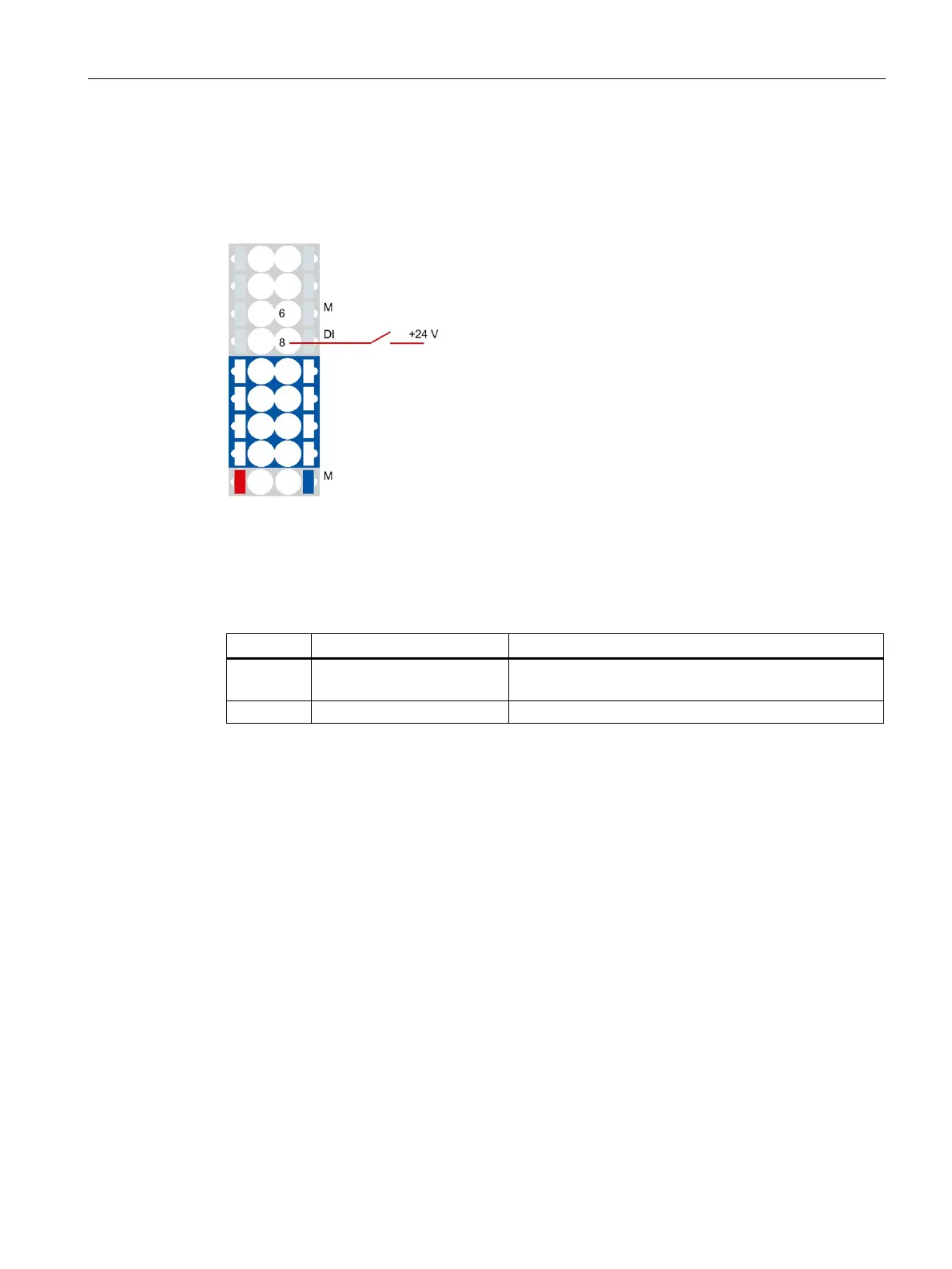

Figure 4-6 24 V digital input connection
Table 4- 3 Pin assignment
Pin
Designation
Function
6 M Ground, internally connected to ground of 24 - 48 V
power supply
8
DI
24 V digital input
