4.3 Wiring of multiple F-TM ServoDrive
F-TM ServoDrive
24 Equipment Manual, 02/2020, A5E47579503-AA
4.3 Wiring of multiple F-TM ServoDrive
In a potential group
You can connect multiple F-TM ServoDrive to form a potential group (drive line-up). The
following figure shows you the F-TM ServoDrive with different motors.

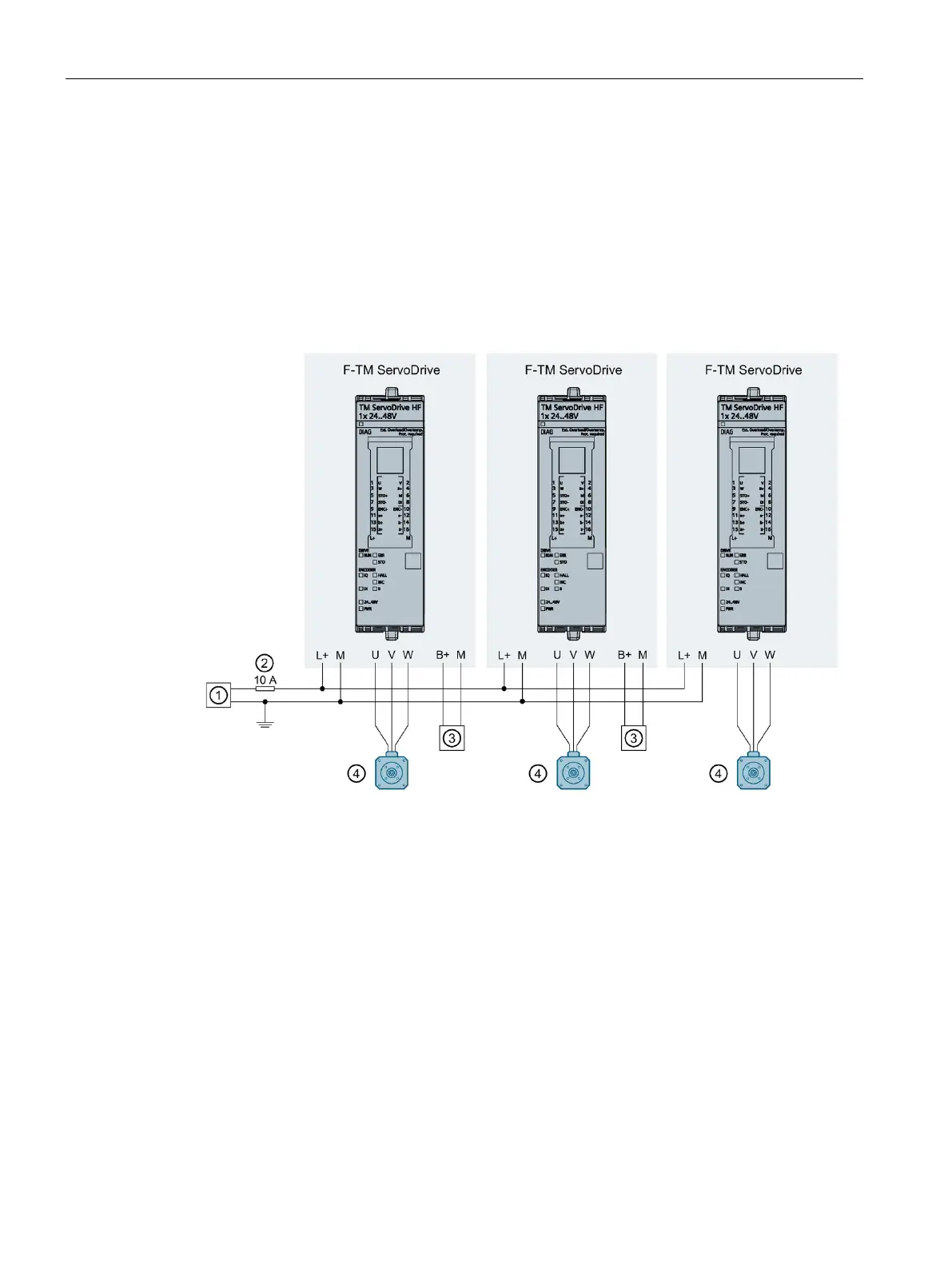

Wiring of multiple F-TM ServoDrive to form a drive line-up
①
Power supply unit
②
Protective device
③
Braking resistor
④
Motor
Figure 4-2 Wiring of multiple F-TM ServoDrive to form a drive line-up
