Product overview
3.2 Properties
F-TM ServoDrive
Equipment Manual, 02/2020, A5E47579503-AA
17
3.2 Properties
Article number
6BK1136-6AB00-0BU0
View of the module
①
Module type and designation
⑧
Function class
②
LED for diagnostics
⑨
Color coding of module type
③
2D matrix code
⑩
Color code for selection of the color-coded labels
④
Wiring diagram
⑪
BU type
⑤
LEDs for motor control
⑫
Article number
⑥
LED for supply voltage
⑦
LED for power

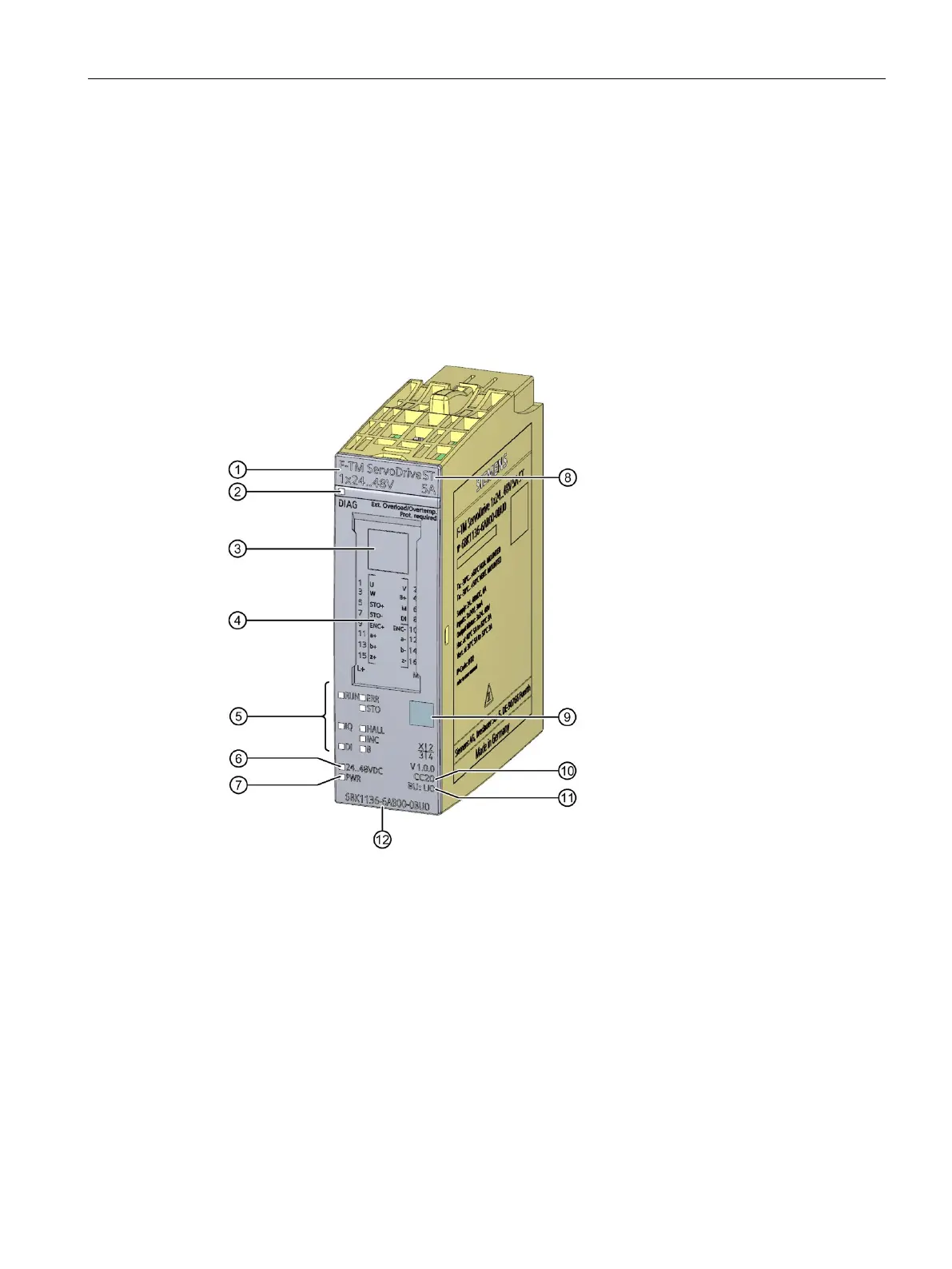

Figure 3-2 View of the F-TM ServoDrive module
