Safety functions integrated in the drive
5.1 Basic safety information
F-TM ServoDrive
Equipment Manual, 02/2020, A5E47579503-AA
35
Examples of safety devices and 3 F-TM ServoDrive
Note
The supply voltage for the STO inputs must be different from
that of the power supply.

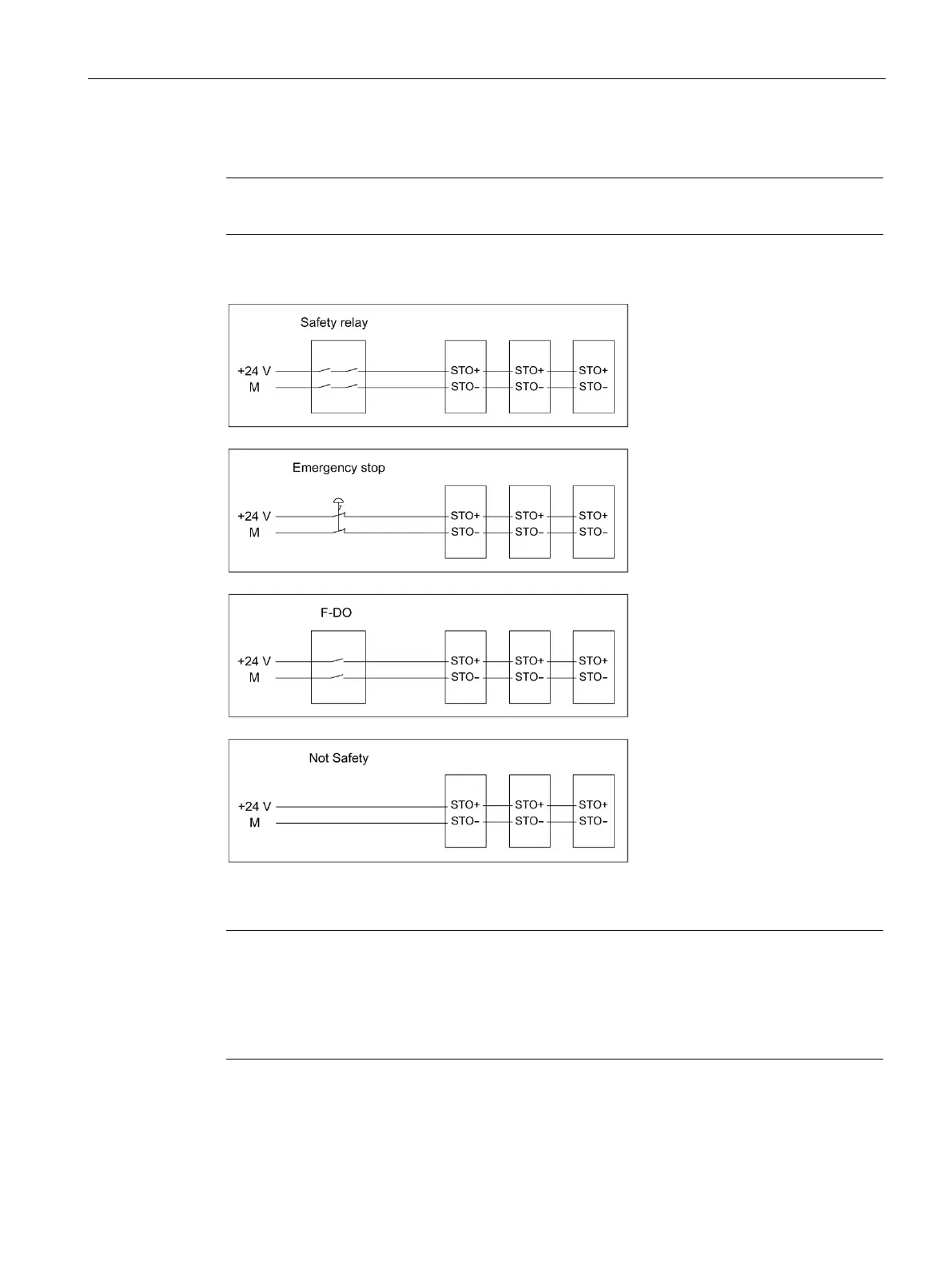

The following figure shows various safety devices connected to 3 F-TM ServoDrive.
Figure 5-1 Safety devices and 3 F-TM ServoDrive
Note
The F-TM ServoDrive does not support startup protection.
Measure:
Startup protection via additional safety relay or in higher
-level controller, depending on the
