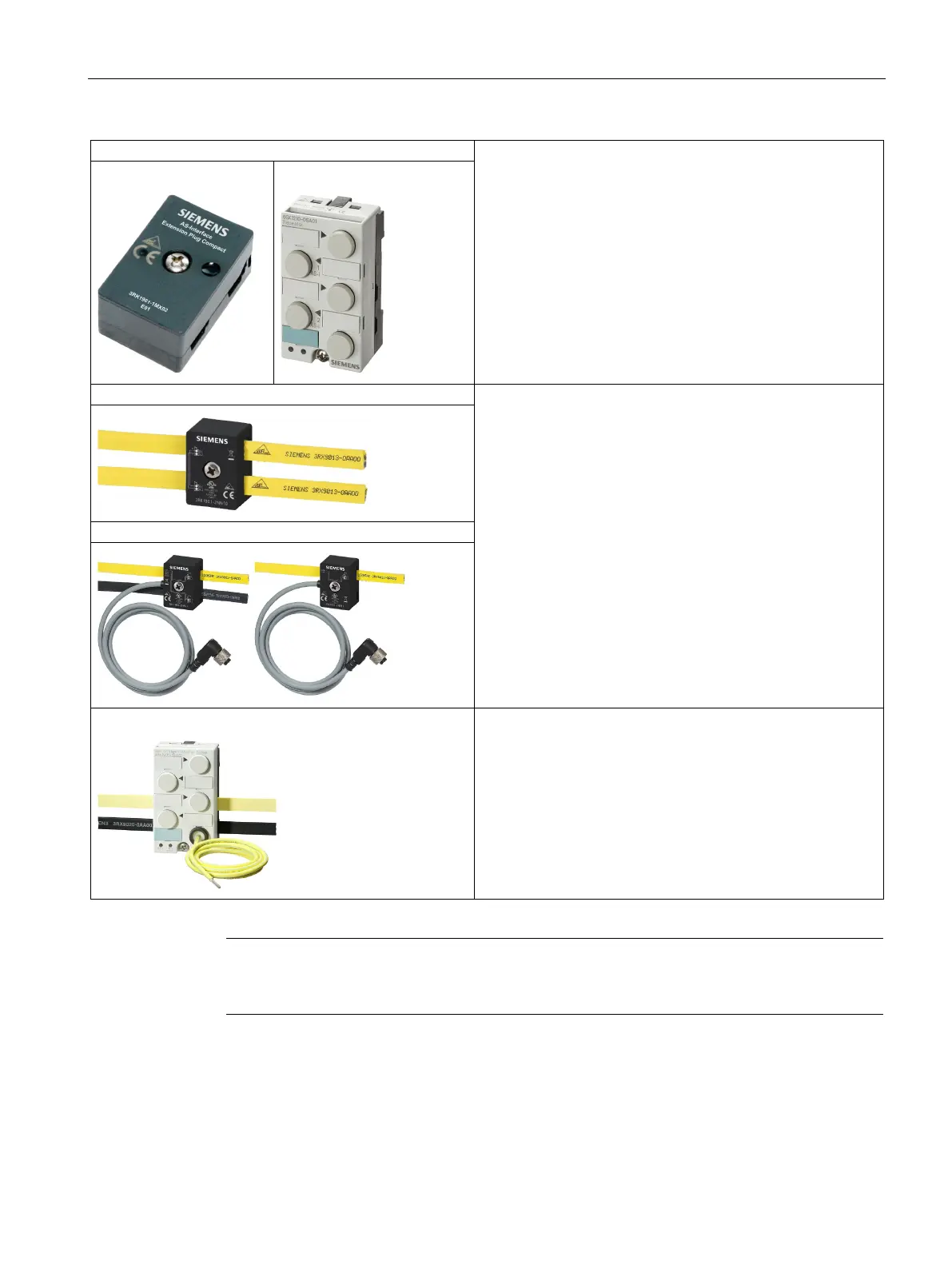

Introduction

3.2 AS-i Safety product overview

Safety engineering with AS‑Interface in the SIMATIC ET 200SP, including typical circuit diagram

Function Manual, 08/2020, A5E44991382002A/RS-AB/002

Range extension

Lower infrastructure costs, more possibilities of use and

greater freedom for plant planning

• Extension of an AS-i segment to a max. of 200 m with

extension plug (without additional power supply unit)

• Extension by one bus segment with AS-i Repeater

Maximum combined extension increases to 600 m or more

(with parallel connection of repeaters)

Extension plug

Repeater

Compact distributor

Quick and easy distribution and branching to the AS-i shaped

cable

• Simple distribution/connection of AS-i shaped cable with

high degree of protection

• Branching from AS-i and U

aux to round cable

• Connection of slaves with M12 bus connection

• M12 branch with direct M12 socket or M12 round cable

available

• Easy to use

M12 branches

Overvoltage protection

Protection against overvoltage on AS-i

• Special module: Overvoltage protection

Note

Ground fault detection is integrated into the CM AS

-i Master ST, AS-i power supply units and

the data decoupling unit
