Siemens simatic et200sp Function Manual

Circuit diagram example
4.5 TIA Portal programming
Safety engineering with AS‑Interface in the SIMATIC ET 200SP, including typical circuit diagram
Function Manual, 08/2020, A5E44991382002A/RS-AB/002
47
4.5 TIA Portal programming
In this typical circuit diagram, the focus is on the safety-related switching of the machine.
Therefore, operational switching is not taken into account, and no standard user program is
programmed. In this example, the user must implement the operational switching – adapted
to the conditions of the machine – in their program with the aid of the "operativeOn" variable
in the DB "DataToSafety" via the FB "StartStop".

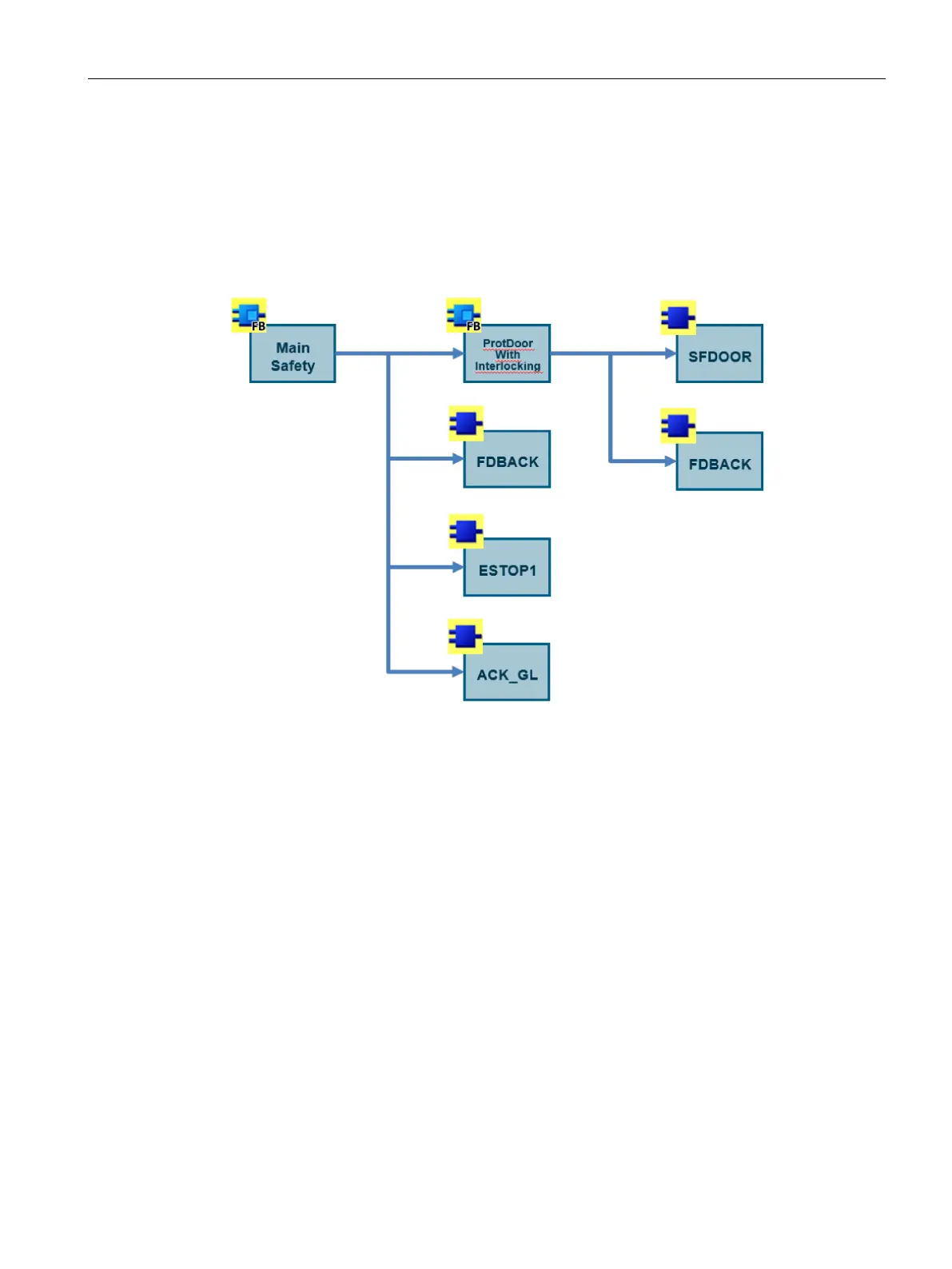

Figure 4-20 Safety program
The MainSafety function block is called cyclically by an F-runtime group. This contains all
other safety-related program parts.

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
