Circuit diagram example
4.4 TIA Portal configuration
Safety engineering with AS‑Interface in the SIMATIC ET 200SP, including typical circuit diagram
44 Function Manual, 08/2020, A5E44991382002A/RS-AB/002
4.4.8 Assigning fail-safe addresses to ET 200SP
After setting the F parameters of the F-CM AS-i Safety ST module, the PROFIsafe-/F
destination address still has to be assigned to the extended module (real hardware).
Fail-safe ET 200SP modules do not have DIP switches with which you can assign the unique
F destination address (= PROFIsafe address) to each module. Instead, assign the PROFIsafe
address directly from STEP 7. F destination addresses are assigned in the hardware
configuration for the F module. An assignment is necessary when a system is commissioned
for the first time, for example. The F destination address can only be assigned if the PROFINET
device name is also assigned.
Open the shortcut menu of the F-CM AS-i Safety ST (right click on the F-CM AS-i Safety
module) and select "Assign F destination address". In the dialog which then appears, identify
the F-CM AS-i Safety ST module, and then assign the PROFIsafe address.

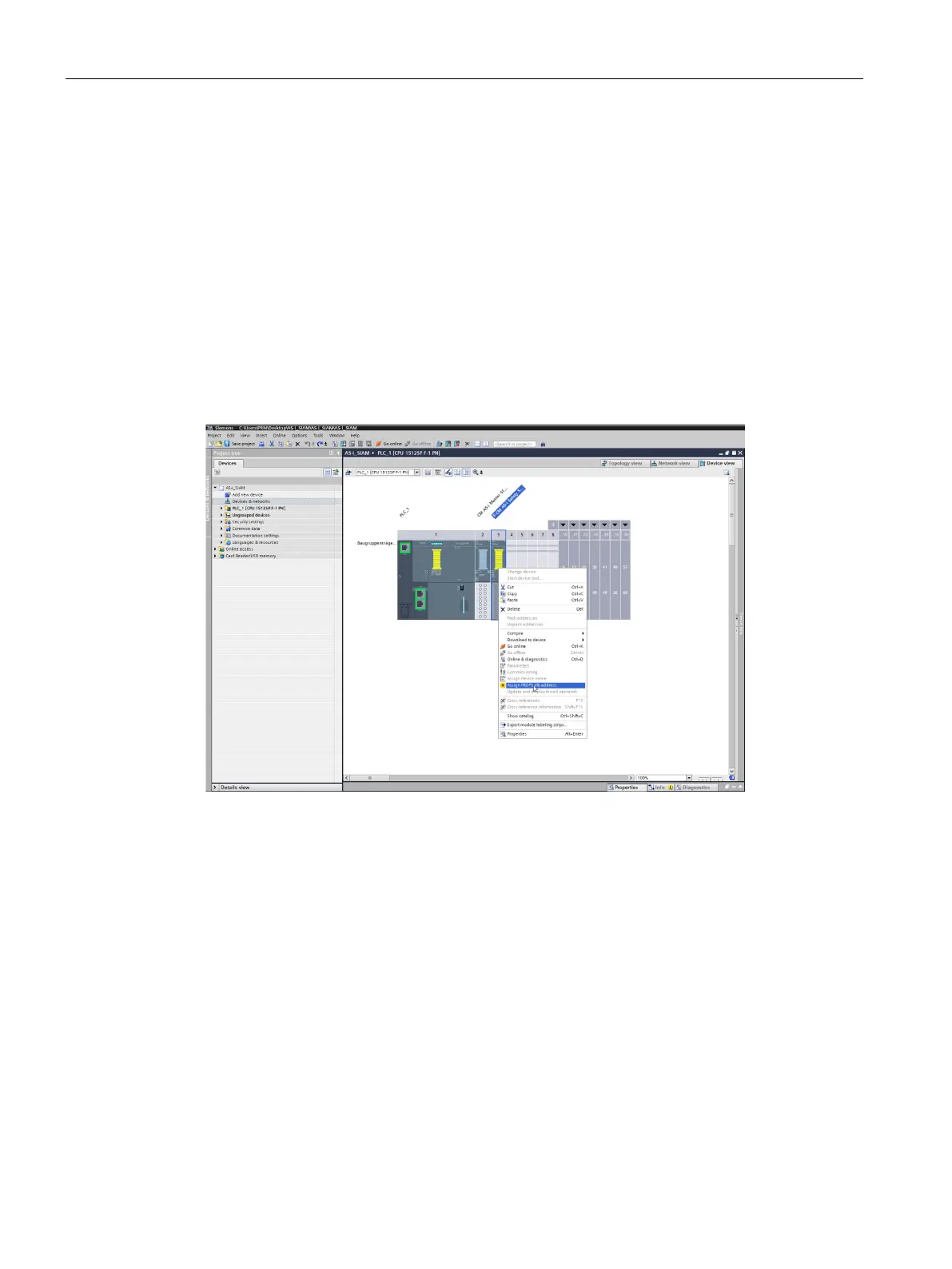

Figure 4-18 Assigning the PROFIsafe address
Repeat the described procedure for assigning the fail-safe address for the F-DQ module.

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
