4.4 TIA Portal configuration
Safety engineering with AS‑Interface in the SIMATIC ET 200SP, including typical circuit diagram
Function Manual, 08/2020, A5E44991382002A/RS-AB/002
35

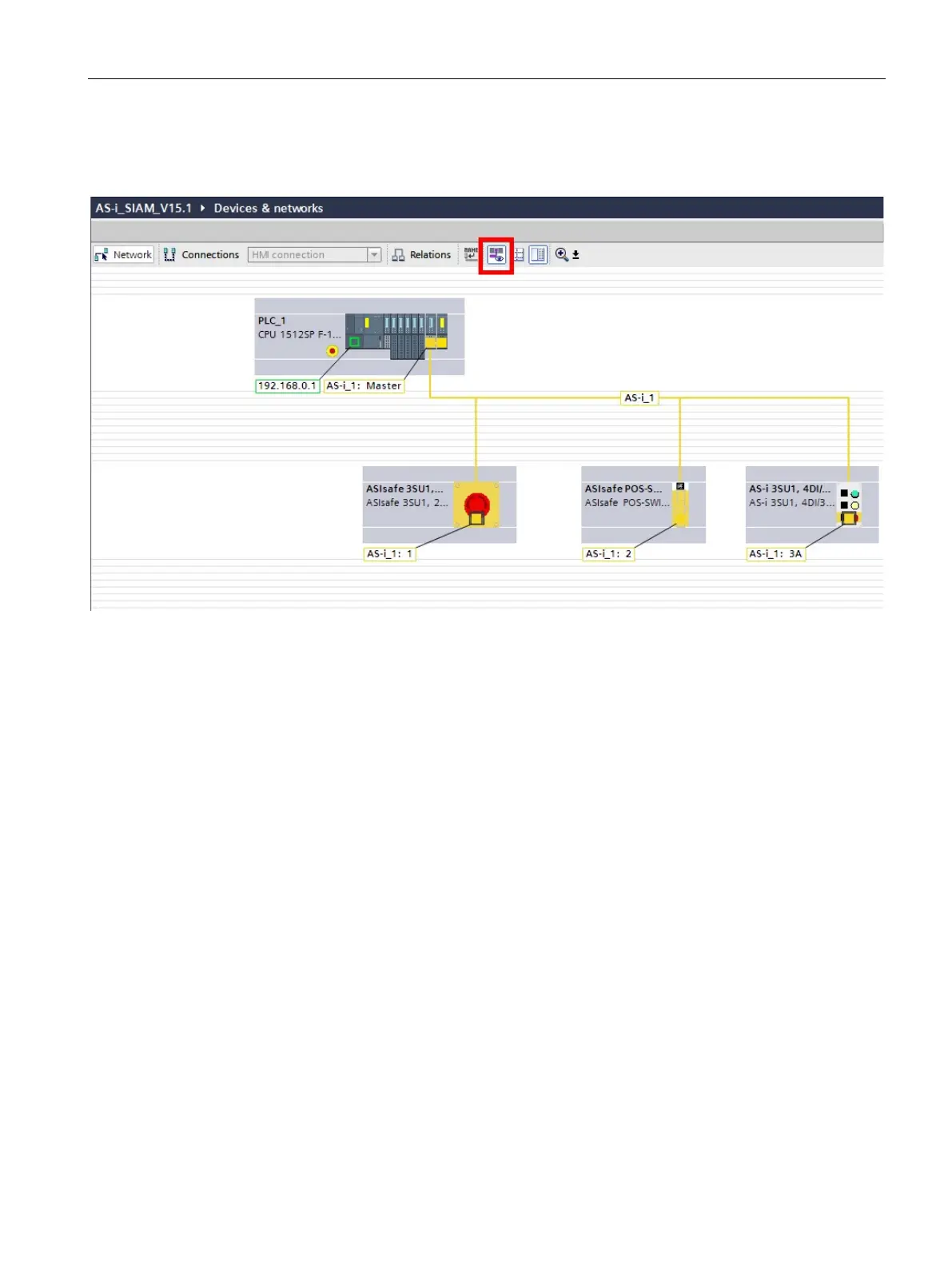

Tip: Display the AS-i addresses on the slaves by activating the "Show addresses" function
(symbol with eye in the menu bar of the network view, above the empty area).
Figure 4-9 Display addresses
