6.5 Interface assignment Terminal Box DP
Mobile Panel 177 (WinCC flexible)
6-14 Operating Instructions (Compact), Edition 07/2005

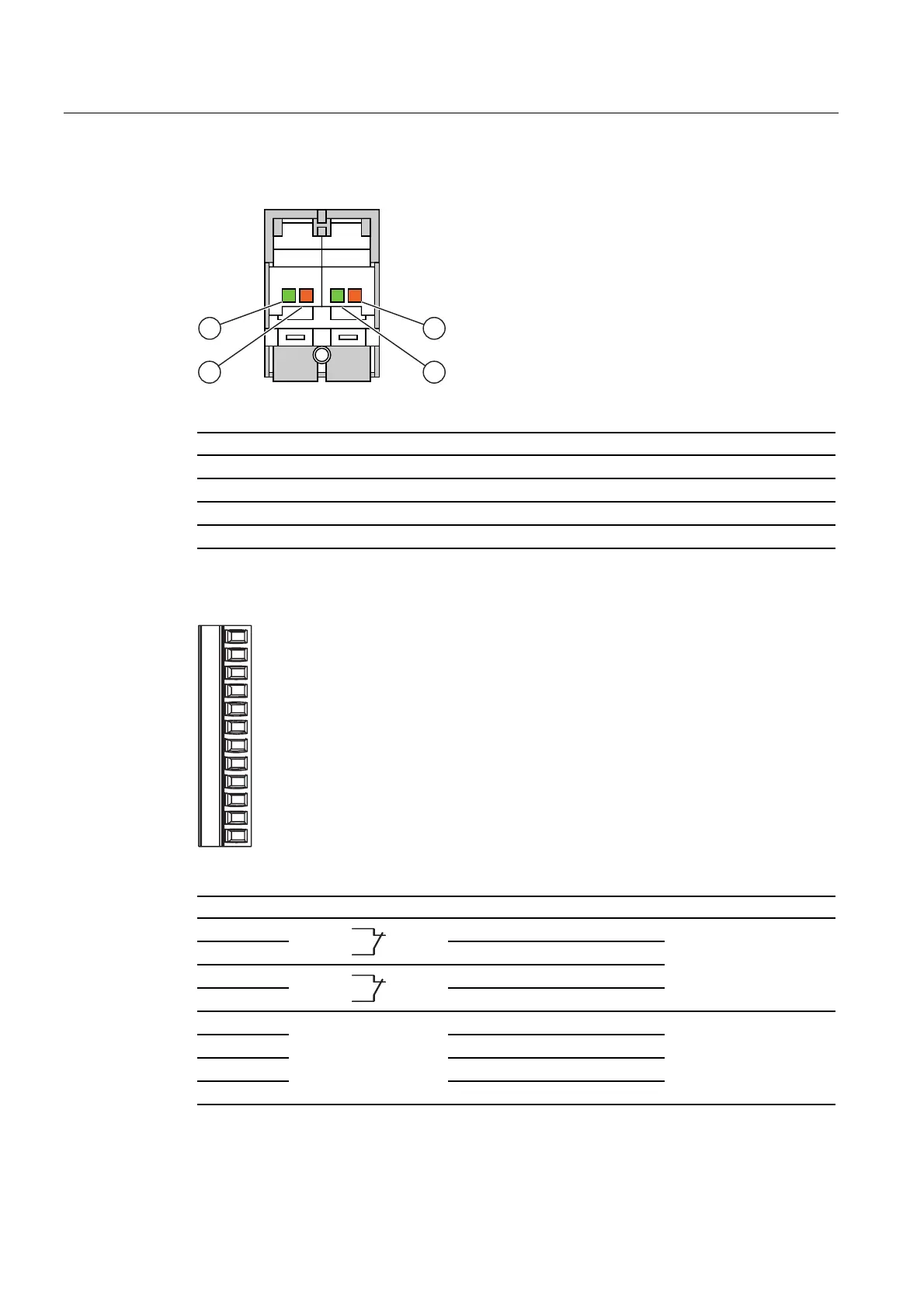

Fast connector
Figure 6-12 Assignment of 4-pin Fast Connector
Pin Assignment
1 LTG-A (–) IN
2 LTG-B (+) IN
3 LTG-A (–) OUT
4 LTG-B (+) OUT
Terminal strip 2: Safety Functions and Supplemental Functions
Figure 6-13 Assignment of 12-pin terminal strip 2
Pin Internal interconnection Name Circuit
1 Stop 13
2
Stop 14
3 Stop 23
4
Stop 24
STOP button
See Female header
5 +24 V
1)
6 STOP button depressed 32
1)
7 Mobile Panel plugged 31
8
+24 V
1)
PLC-accompanying
signals
