Appendix
A.1 Connection point recognition
Mobile Panel 177 (WinCC flexible)
A-4 Operating Instructions (Compact), Edition 07/2005

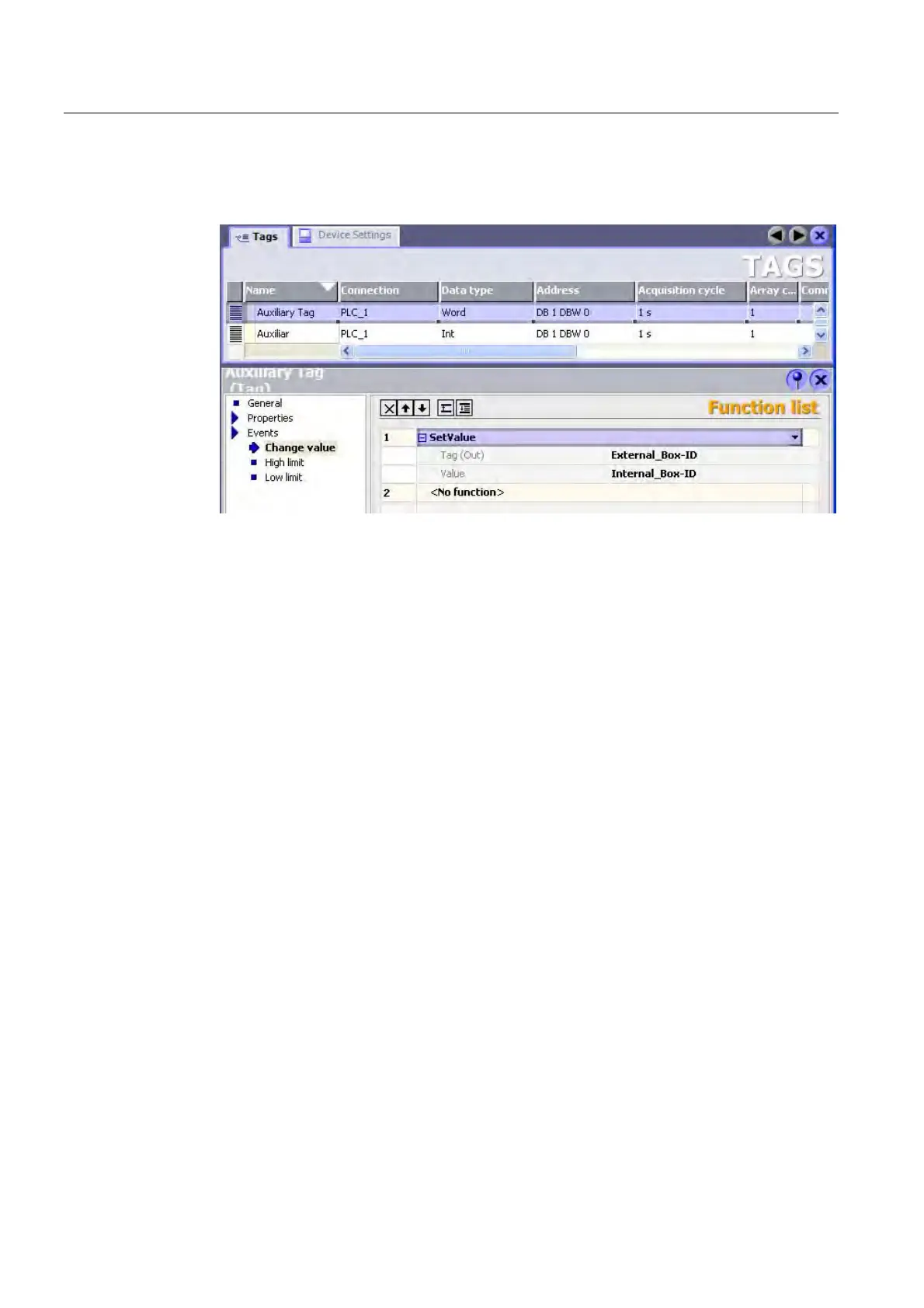

9. Select the system function "SetValue" from the "Calculation" group. Select the
"External_Box-ID" tag at "Tag (output)". Select the "Internal_Box-ID" tag at "Value".
Result
The box ID of the terminal box to which the Mobile Panel 177 is connected is transferred to
the controller.
See also
Setting the box ID at the terminal box (Page 4-7)
