Siemens SIMATIC HMI KTP700F Mobile Arctic User Manual

KTP700F Mobile Arctic
A5E49199858-AB, 02/2021
11

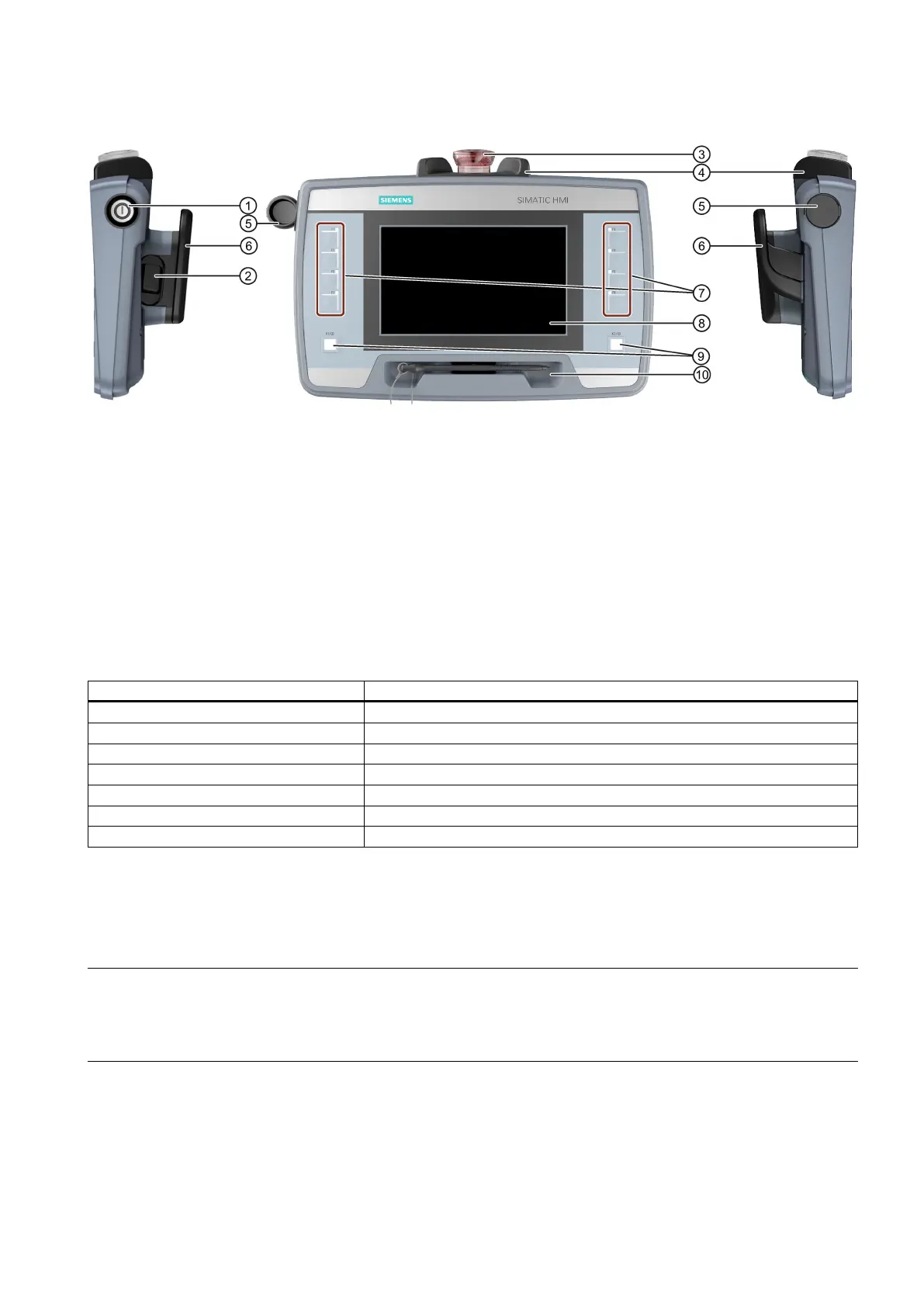

Design of the device
①
Keyswitch
②
Enabling button
③
Emergency stop / stop button
④
Fall protection for the emergency stop / stop button
⑤
Cover cap for USB port
⑥
Handle
⑦
Function key blocks
⑧
Display with touch screen
⑨
Illuminated pushbutton
⑩
Holder with touch pen
Connecting Cable
The following KTP Mobile connecting cables are approved for the device:
Product name and length
Article number
KTP Mobile 2 m connecting cable
6AV2181-5AF02-0AX0
KTP Mobile 5 m connecting cable
6AV2181-5AF05-0AX0
KTP Mobile 8 m connecting cable
6AV2181-5AF08-0AX0
KTP Mobile 10 m connecting cable
6AV2181-5AF10-0AX0
KTP Mobile 15 m connecting cable
6AV2181-5AF15-0AX0
KTP Mobile 20 m connecting cable
6AV2181-5AF20-0AX0
KTP Mobile 25m connecting cable
6AV2181-5AF25-0AX0
Connection boxes
The following versions of the connection boxes are approved for the device:
• Connection Box, Compact, article number 6AV2125-2AE03-0AX0, production version FS-03 or higher
• Connection Box, Advanced, article number 6AV2125-2AE23-0AX0, production version FS-05
Note
The standard
connection box can be used together with the device as intended in the weather-protected, permissible
temperature range.
The standard
connection box is not approved for the "Arctic" extended operating temperature range.
Install the connection box in a suitable climatic environment.

Siemens SIMATIC HMI KTP700F Mobile Arctic Specifications

General

Brand	Siemens
Model	SIMATIC HMI KTP700F Mobile Arctic
Category	Control Panel
