Siemens SIMATIC HMI KTP700F Mobile Arctic User Manual

KTP700F Mobile Arctic
14 A5E49199858-AB, 02/2021

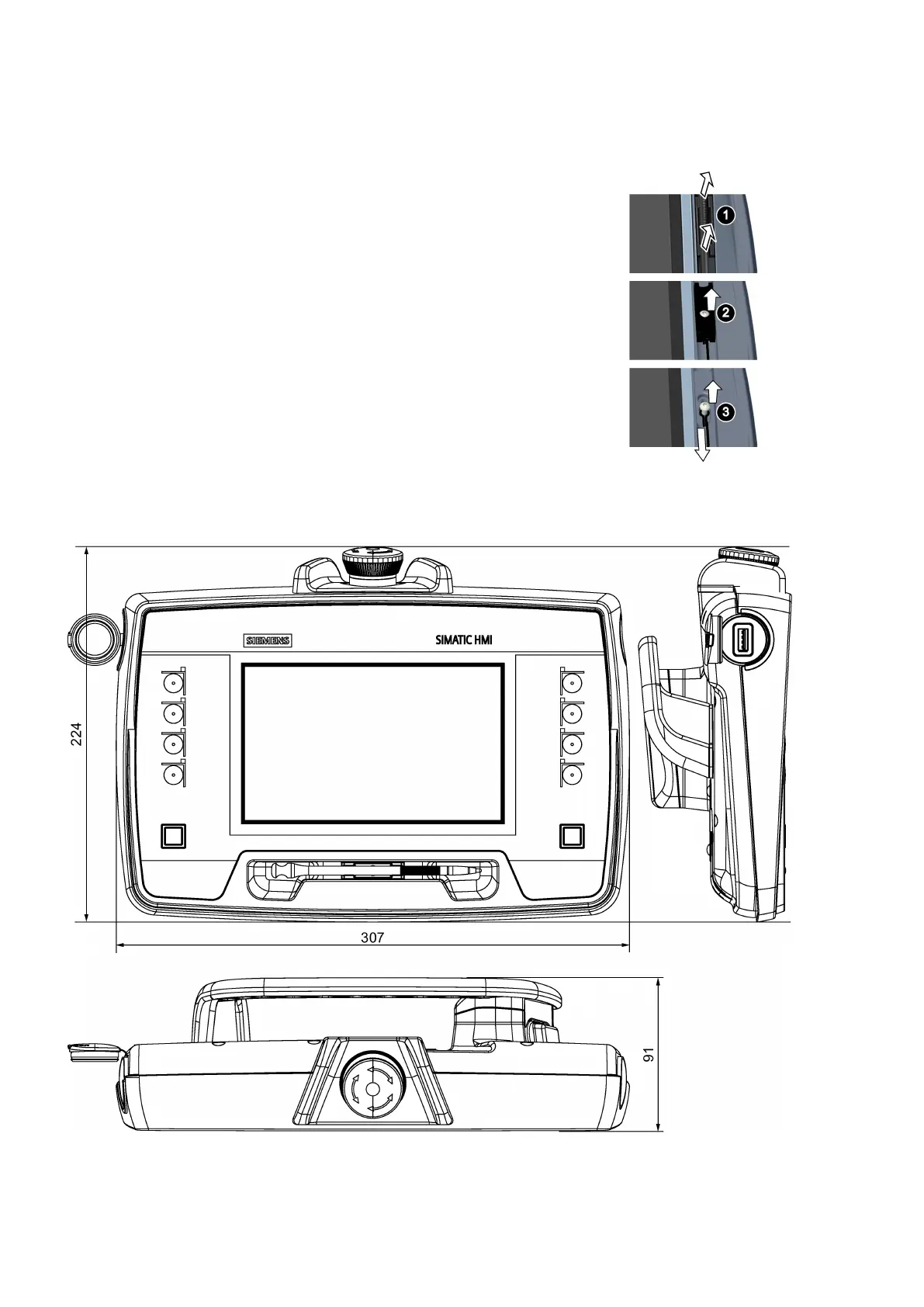

Replacing the touch pen
The HMI device also has a front holder for a touch pen, see section "Overview". The following section describes how to
replace the touch pen.
Requirement
•
HMI device
•
A touch pen, article number
6AV6645-7AB14-0AS0
•
A T10 Torx screwdriver
Procedure
1.
Remove the touch pen from its holder.
2.
Remove the screw of the pen holder and take it out.
3.
Remove the screw for fastening the strap and remove the strap.
Follow the steps in reverse order to install the new touch pen.
At the same time tighten the two screws with a torque of 0.3
Nm.
Technical specifications
Dimension drawing KTP700F Mobile Arctic
All dimensions in mm

Siemens SIMATIC HMI KTP700F Mobile Arctic Specifications

General

Brand	Siemens
Model	SIMATIC HMI KTP700F Mobile Arctic
Category	Control Panel
Language	English
