1.2 Structure of the devices
SIMATIC IPC227E
Operating Instructions, 11/2016, A5E35782395-AB
11
1.2
Structure of the devices
1.2.1

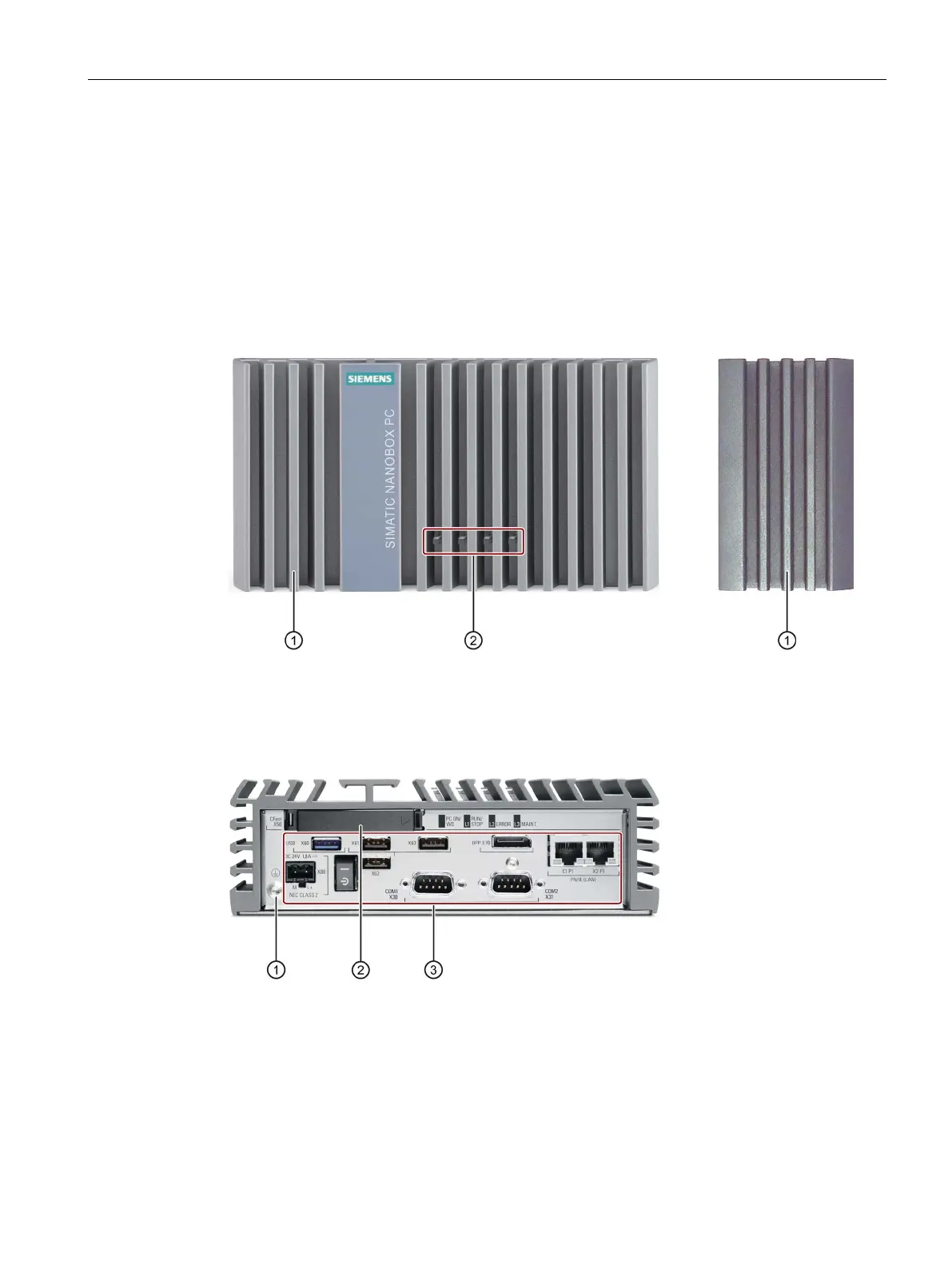

Views of the basic device
Front view and side view
The front view on the left is the standard mounting position, side view on the right.
①
Cooling fins
②
LED display
Bottom view
①
Protective conductor connection
②
Memory card slot
③
Ports
