Siemens simatic ipc227e - Interfaces and Operator Controls of the Basic Device

Overview
1.2 Structure of the devices
SIMATIC IPC227E
14 Operating Instructions, 11/2016, A5E35782395-AB
1.2.3

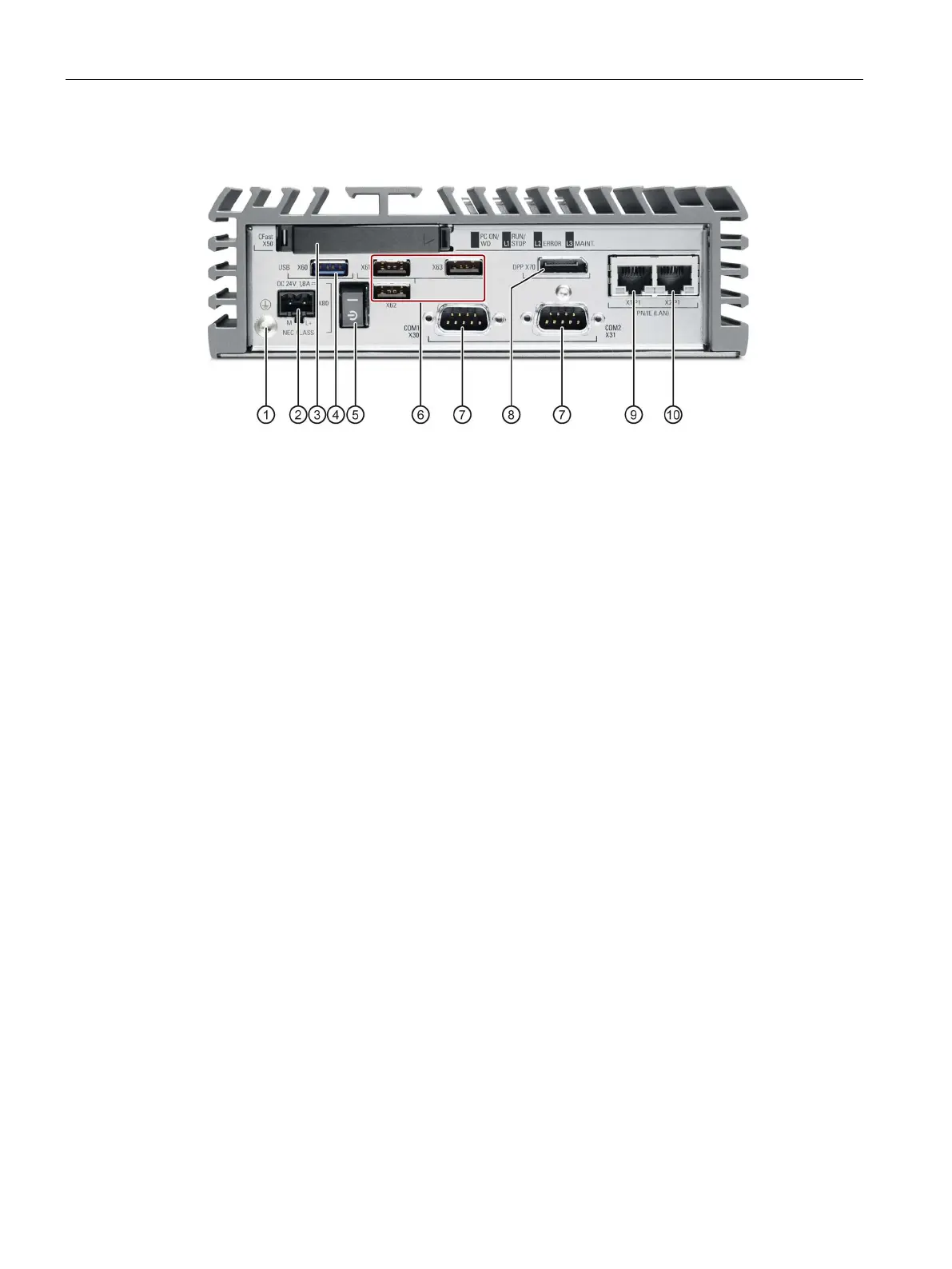

Interfaces and operator controls of the basic device
①
Protective conductor connection
②
Connection for a 24 VDC power supply
③
Memory card slot
④
USB 3.0 port, high current
⑤
On/off switch. OFF position, when the symbol "C
-" is pressed in.
⑥
USB 2.0 port, high current
⑦
Serial interface, 9
-pin (optional)
•
RS 232
•
RS 422
•
RS-485
⑧
DisplayPort connection
⑨
RJ45 Ethernet connection 1 for 10/100/1000 Mbps
⑩
RJ45 Ethernet connection 2 for 10/100/1000
Mbps
