3.1.5
Installing Ethernet connector strain relief
The Ethernet connector strain relief prevents accidental loosening of the Ethernet connector
from the device. The Ethernet connector strain relief is available as an accessory.

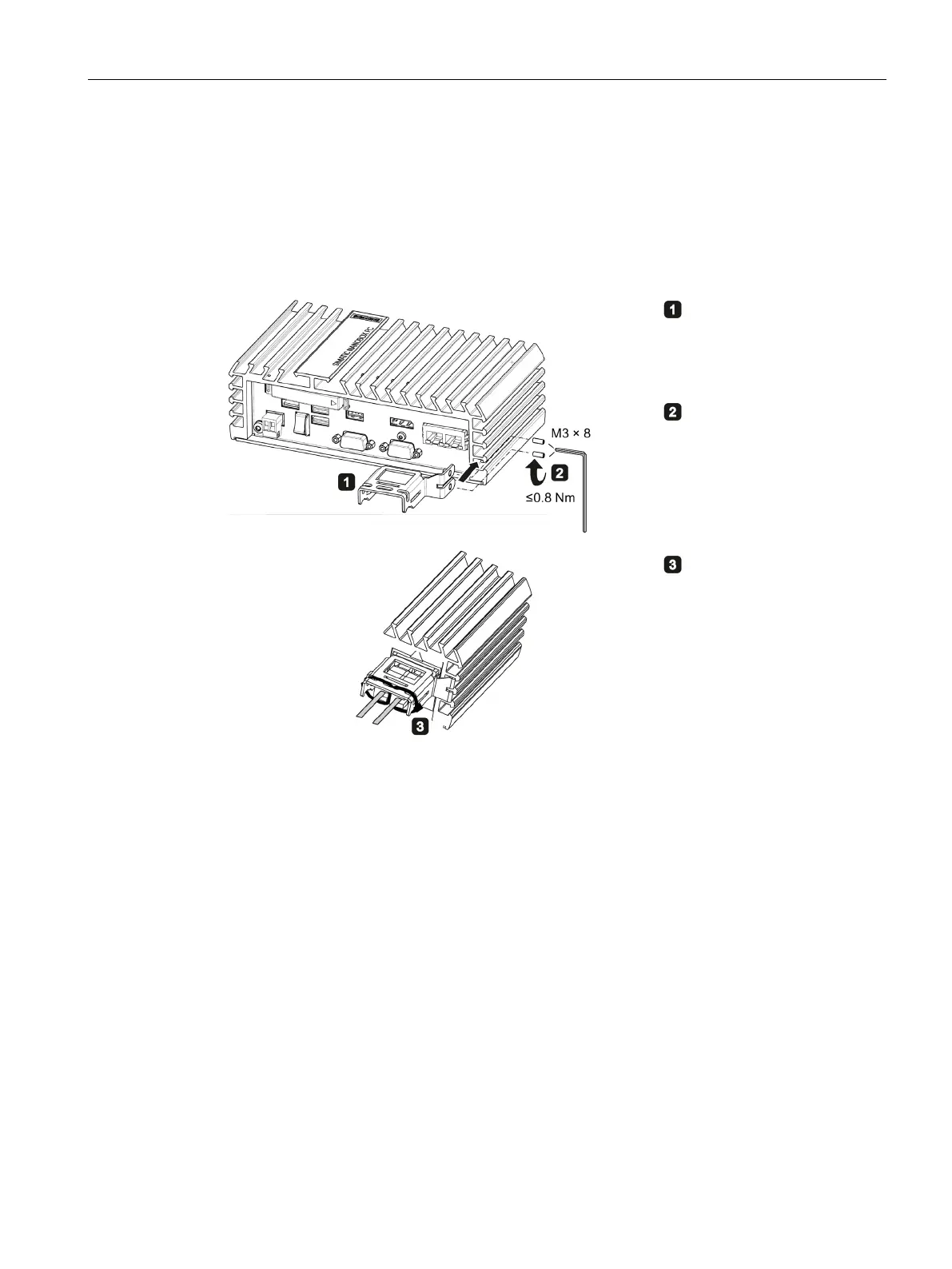

Procedure
Insert the metal plate of
the Ethernet connector
strain relief into the s
ec-
ond and third to the last
notch.
Fasten the Ethernet co
n-
nector strain relief with 2
setscrews.
Secure the Ethernet co
n-
nector with cable ties.
