Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC227E
36 Operating Instructions, 11/2016, A5E35782395-AB
Wall mounting is suitable for horizontal mounting of the device.
● Two mounting brackets
The mounting brackets are available in two versions - for the basic device versions and
for the PCIe device version. The mounting bracket and four screws are included in the
order variant "Wall mounting".
● A T20 screwdriver
● Four anchors and four screws

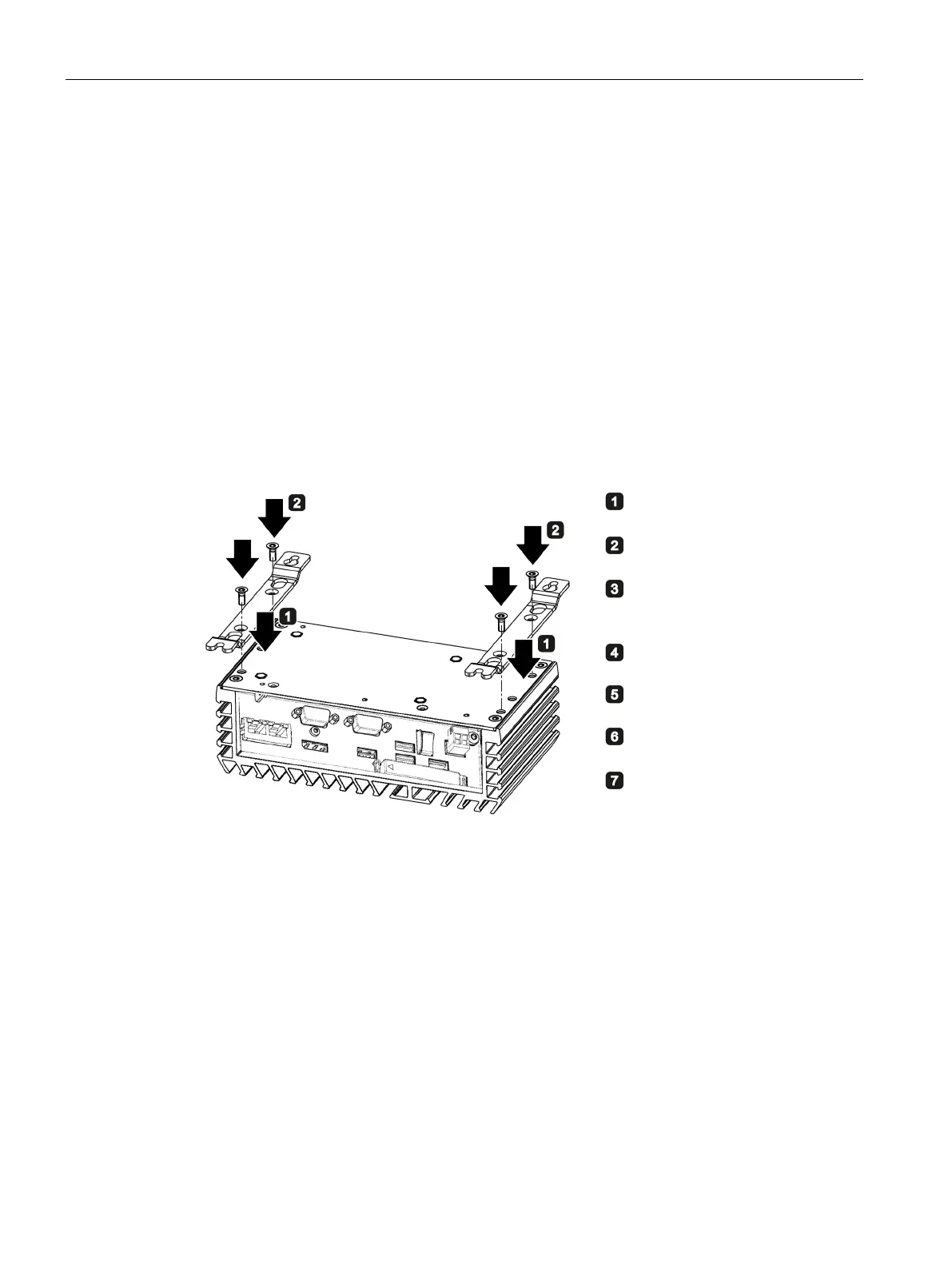

Place the mounting bracket on
the rear of the device.
Secure the mounting bracket
with 2 screws.
Place the device with the moun
t-
ing brackets onto the mounting
surface.
Insert the anchors in the drilled
holes.
