Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC227E
Operating Instructions, 11/2016, A5E35782395-AB
33

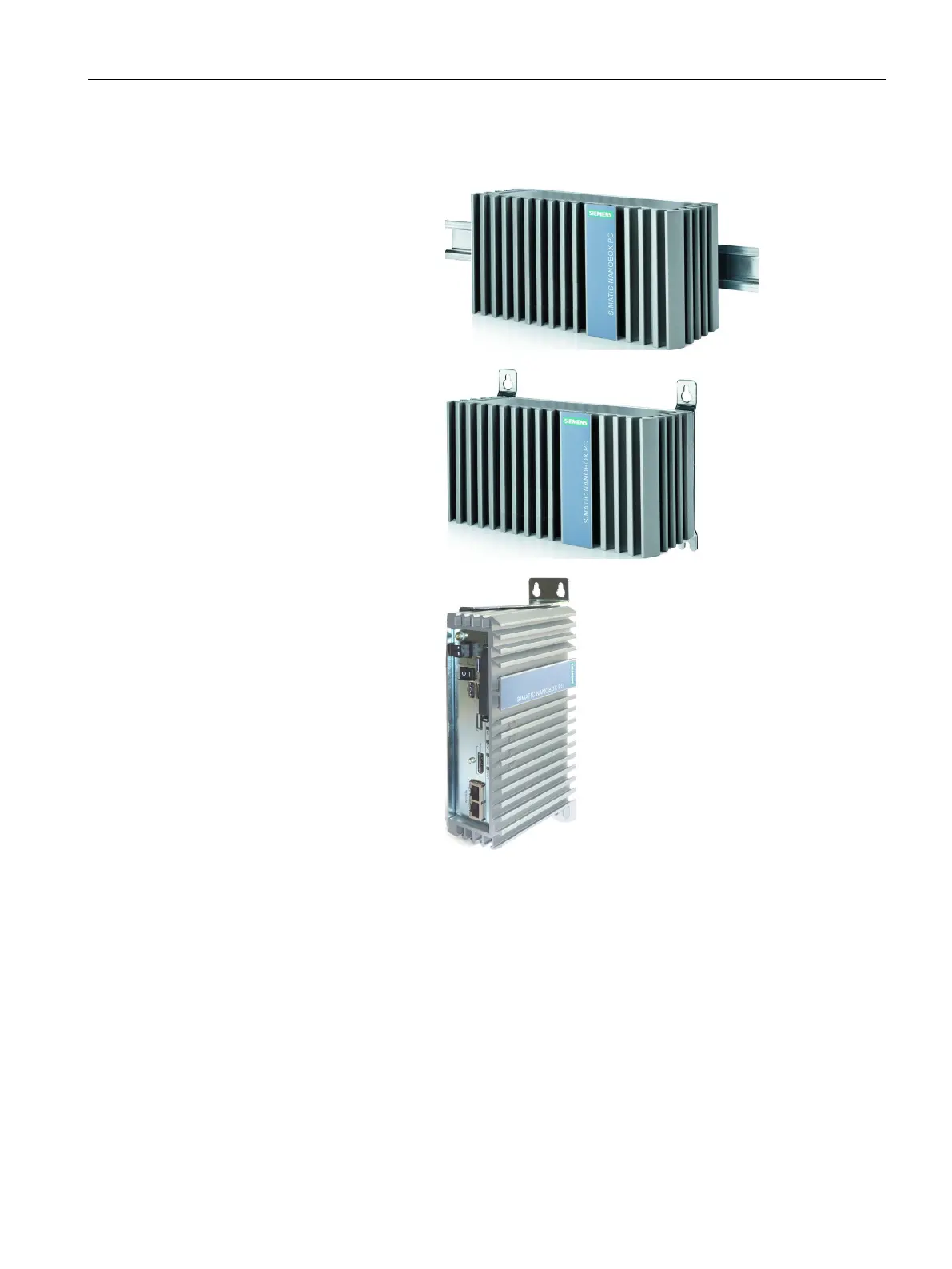

Possible mounting types of the device:
Mounting on a standard rail
The mounting types are described in the following sections using the basic device as an
example.
Position of the interfaces
For standard rails, the interface side of the device can point either up or down. In the case of
wall mounting, the interface side of the device can point up, down, to the left or to the right.
The position of the interface side is determined by the mounting of the mounting bracket.
