Initial startup
3.3 Touch screen calibration
SIMATIC IPC427C Bundles, SIMATIC HMI IPC477C Bundles
Manual, 07/2009, A5E02280126-02
15
3.3 Touch screen calibration
While the "SIMATIC PC Wizard" is running different drivers will be installed. The wizard
automatically identifies and chooses the type of SIMATIC Embedded Bundle.
Procedure
To calibrate the Touch Screen, proceed as follows:

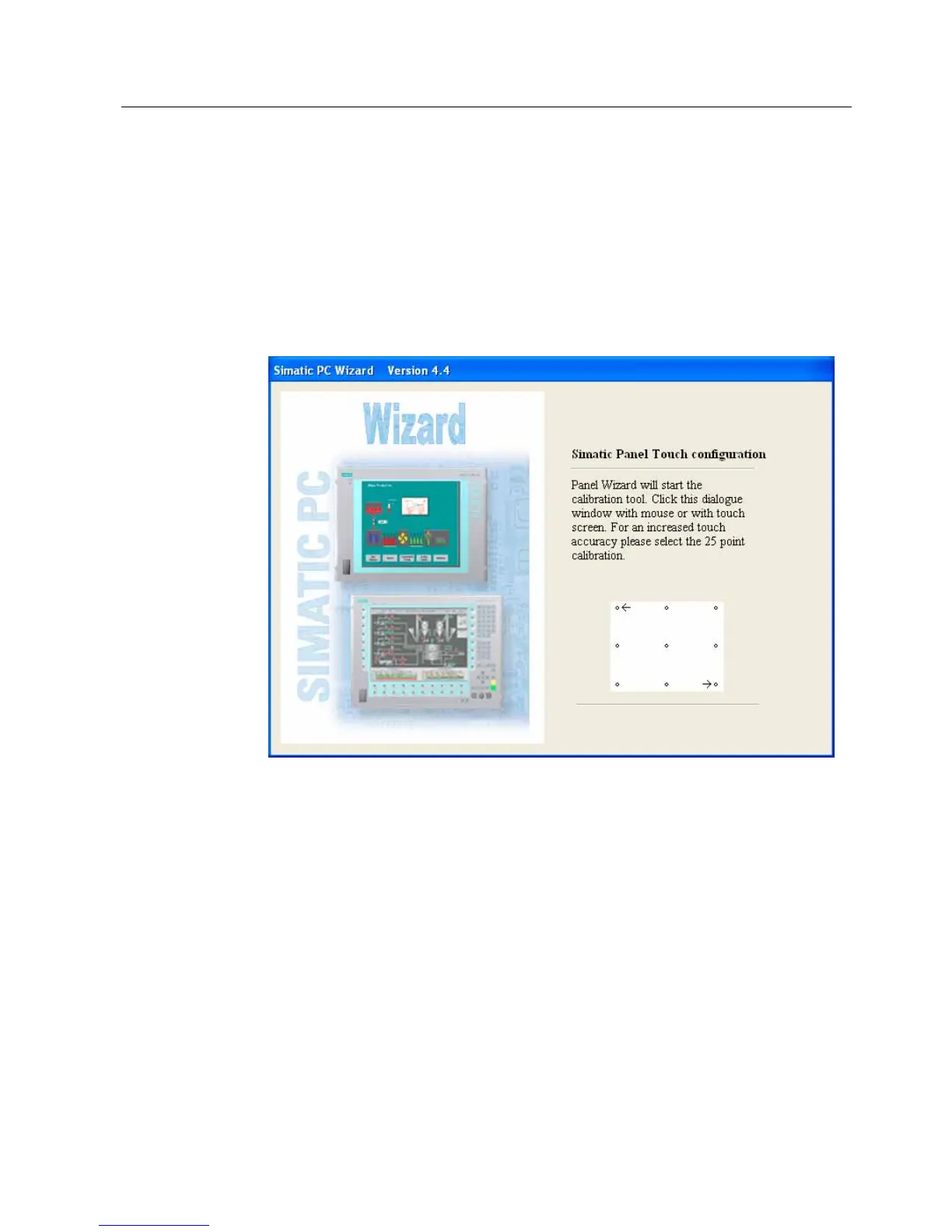

1. Click on the dialog window of the wizard.
The calibration starts.
