Siemens SIMATIC IPC427C User Manual

Initial startup
3.4 Pre-configurations
SIMATIC IPC427C Bundles, SIMATIC HMI IPC477C Bundles
20 Manual, 07/2009, A5E02280126-02
3.4.3 Pre-configured -RTX, -HMI/RTX PROFINET (PN RT)
The PN software package includes the Windows Embedded operating system, WinAC RTX,
and integrated IE General. All software is pre-installed on your hardware platform and
pre-configured. You do not have to perform any additional installation or configuration.
Software and interface configurations for SIMATIC use
Index Software Hardware location
1 OPC Server
2 WinLC RTX
IF1
IF2 IE General PN/IND.ETHERNET (LAN) X2 P1
IF3
IF4
3 IE General PN/IND.ETHERNET (LAN) X2 P2
4 WinCC flexible RT *1)
5
*1) WinCC flexible RT for –HMI/RTX configurations only


① PN/IND.ETHERNET (LAN) X2 P1
② PN/IND.ETHERNET (LAN) X2 P2

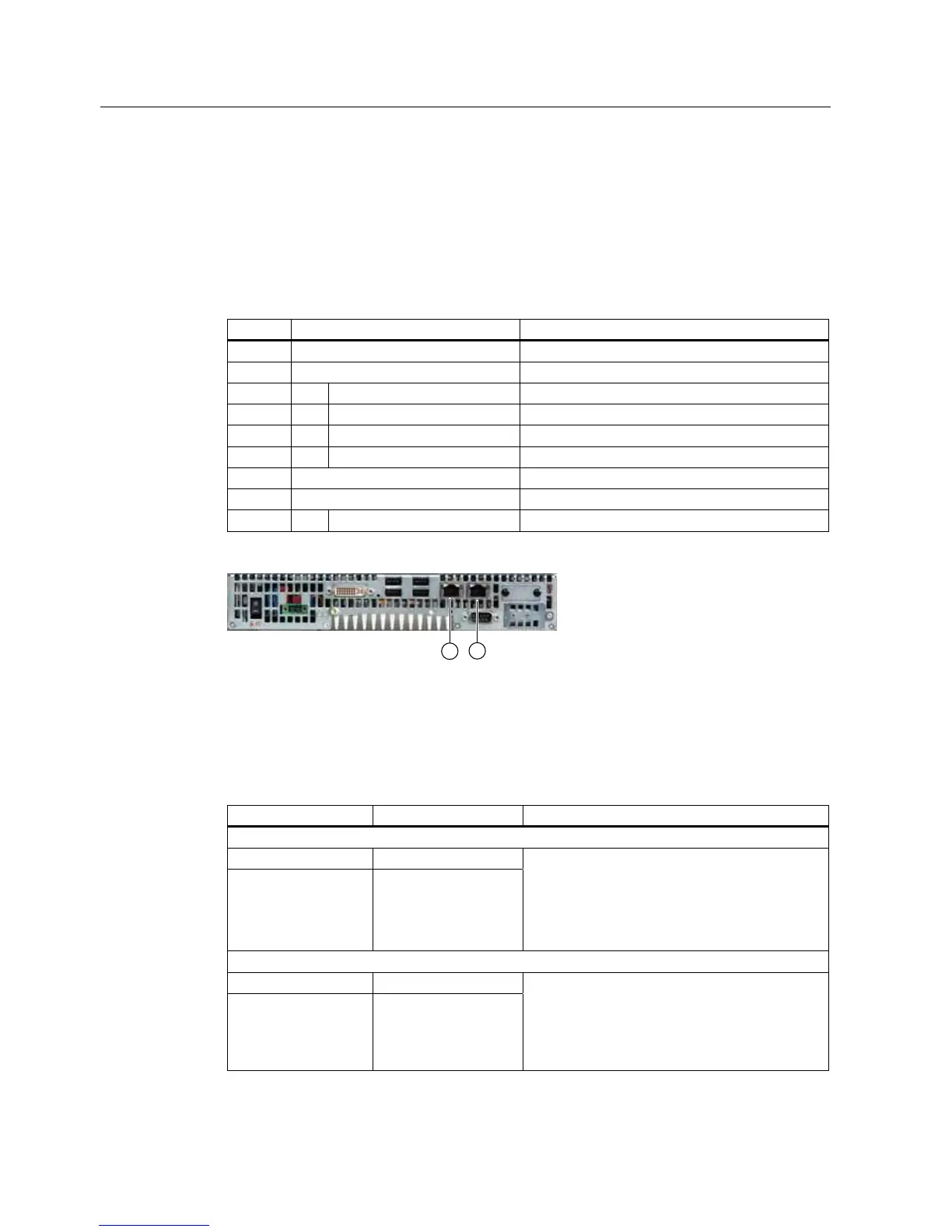

Figure 3-1 Connection components of a SIMATIC IPC427C Bundle
SIMATIC Embedded Bundle interface default settings
Interface Configuration Usage
ETHERNET 1 (IE General, PROFINET)
IP address 0.0.0.0
Subnet mask 255.255.255.0
WinLC RTX use:
 PROFINET IO Controller
 CBA
 S7 communications
 OUC
ETHERNET 2 (IE General, Windows communication)
IP address 192.168.1.2
Subnet mask 255.255.255.0
Windows use:
 For SIMATIC PG or SIMATIC HMI access
 S7 communications
 For standard Windows Ethernet
communication
