Initial startup
3.4 Pre-configurations
SIMATIC IPC427C Bundles, SIMATIC HMI IPC477C Bundles
Manual, 07/2009, A5E02280126-02
21
3.4.4 Pre-configured -RTX, -HMI/RTX PROFIBUS (DP)
The -RTX DP software package includes the Windows Embedded operating system,
WinAC RTX software package, and integrated CP 5611 and Industrial Ethernet
communication interfaces. All software is pre-installed on your hardware platform and
pre-configured. You do not have to perform any additional installation or configuration.
Software and Interface configurations for SIMATIC use
Index Software Hardware location
1 OPC Server
2 WinLC RTX *1)
IF1 CP 5611 MPI/DP X2 (FIELDBUS X3)
IF2 IE General PN/IND.ETHERNET (LAN) X2 P1
IF3
IF4
3 IE General PN/IND.ETHERNET (LAN) X2 P2
4 WinCC flexible RT *2)
5
*1) also applies to WinLC RTX F
*2) WinCC flexible RT for –HMI/RTX configurations only
 

① PN/IND.ETHERNET (LAN) X2 P1
② PN/IND.ETHERNET (LAN) X2 P2
③ MPI/DP X2 (FIELDBUS X3)

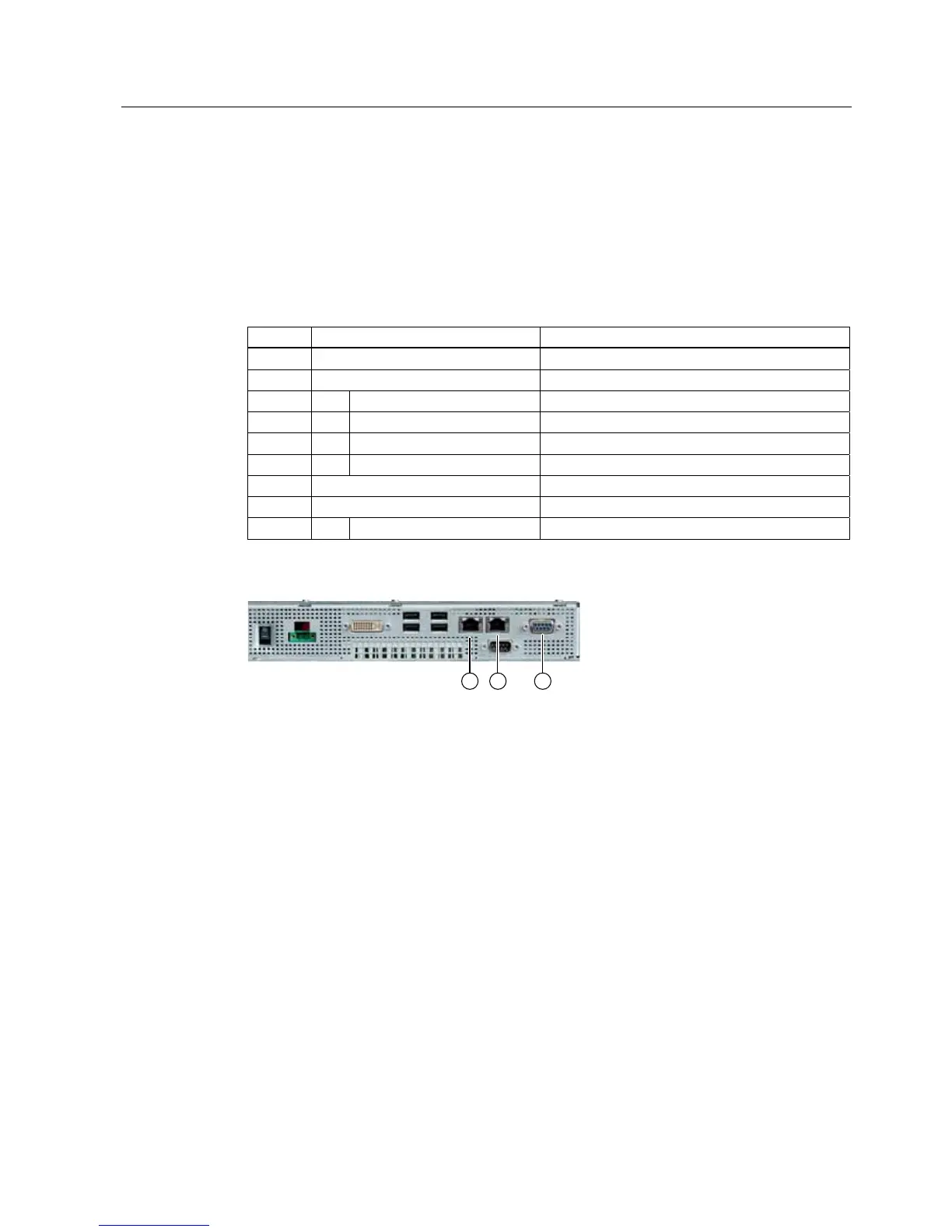

Figure 3-2 Connection components of a SIMATIC HMI IPC477C Bundle
