4.3 Configuring the Windows Ethernet interface
SIMATIC IPC427C Bundles, SIMATIC HMI IPC477C Bundles
30 Manual, 07/2009, A5E02280126-02
Entering the selected IP address in your STEP 7 project
If you choose a different IP address, subnet mask, or gateway for the Ethernet interface, you
must configure this IP address or other parameters for the SIMATIC Embedded Bundles and
for the IE General properties in STEP 7. To configure the IP address in STEP 7, follow these
steps:
1. Right-click IE General in PC Station index 3 in the hardware configuration of your
STEP 7 project.
2. Select Object Properties from the context menu.
3. Click the Properties button from the "General" tab of the Properties - IE General dialog.
4. Enter the IP address from the "Parameters" tab of the "Properties - Ethernet interface
IE General" dialog. You can also specify a subnet mask or gateway address from this
dialog:
IE General properties in STEP 7

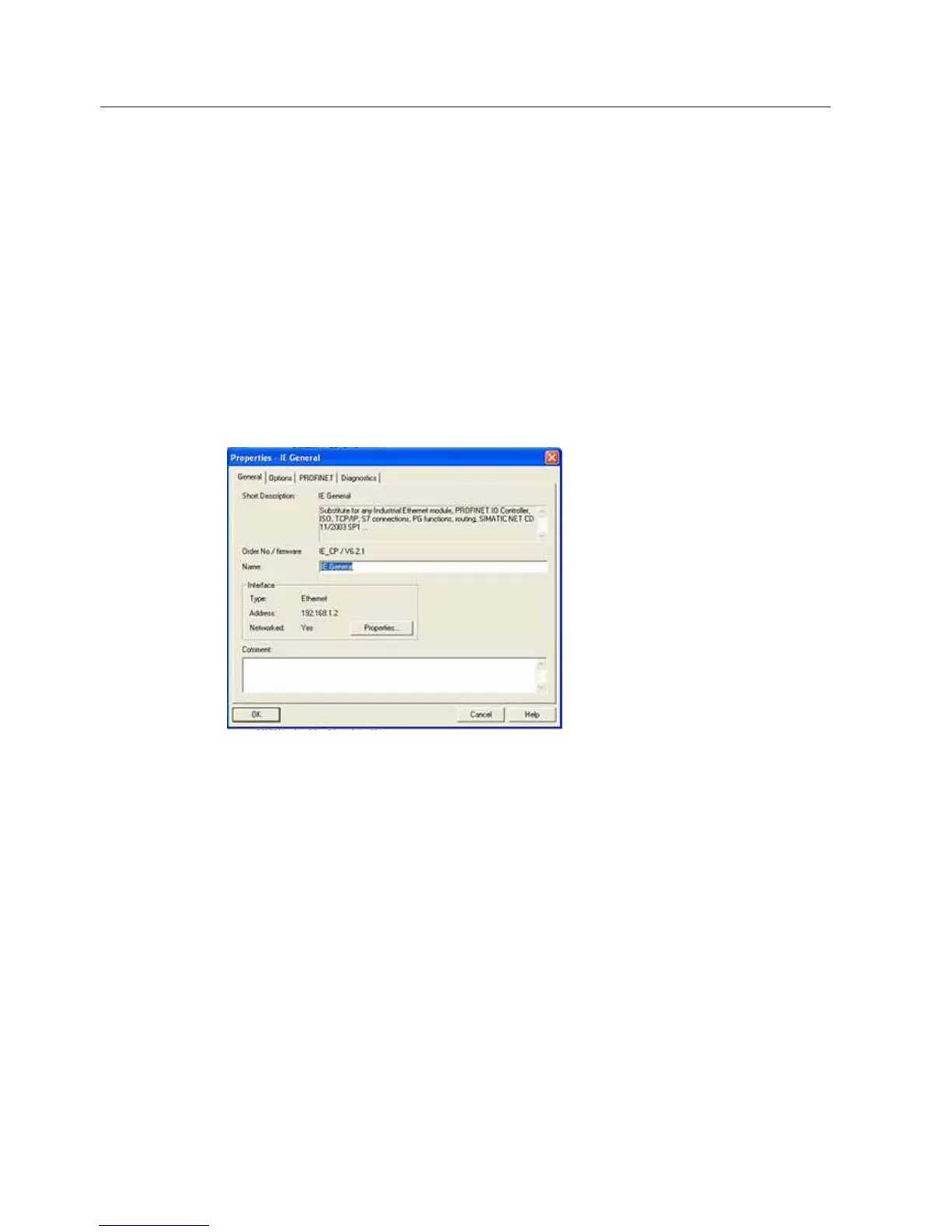

Figure 4-6 STEP 7 IP address: IE General properties in STEP 7
