1.2 Design of the device
SIMATIC IPC427E
Operating Instructions, 09/2017, A5E37454814-AB
13
Design of the device
1.2.1

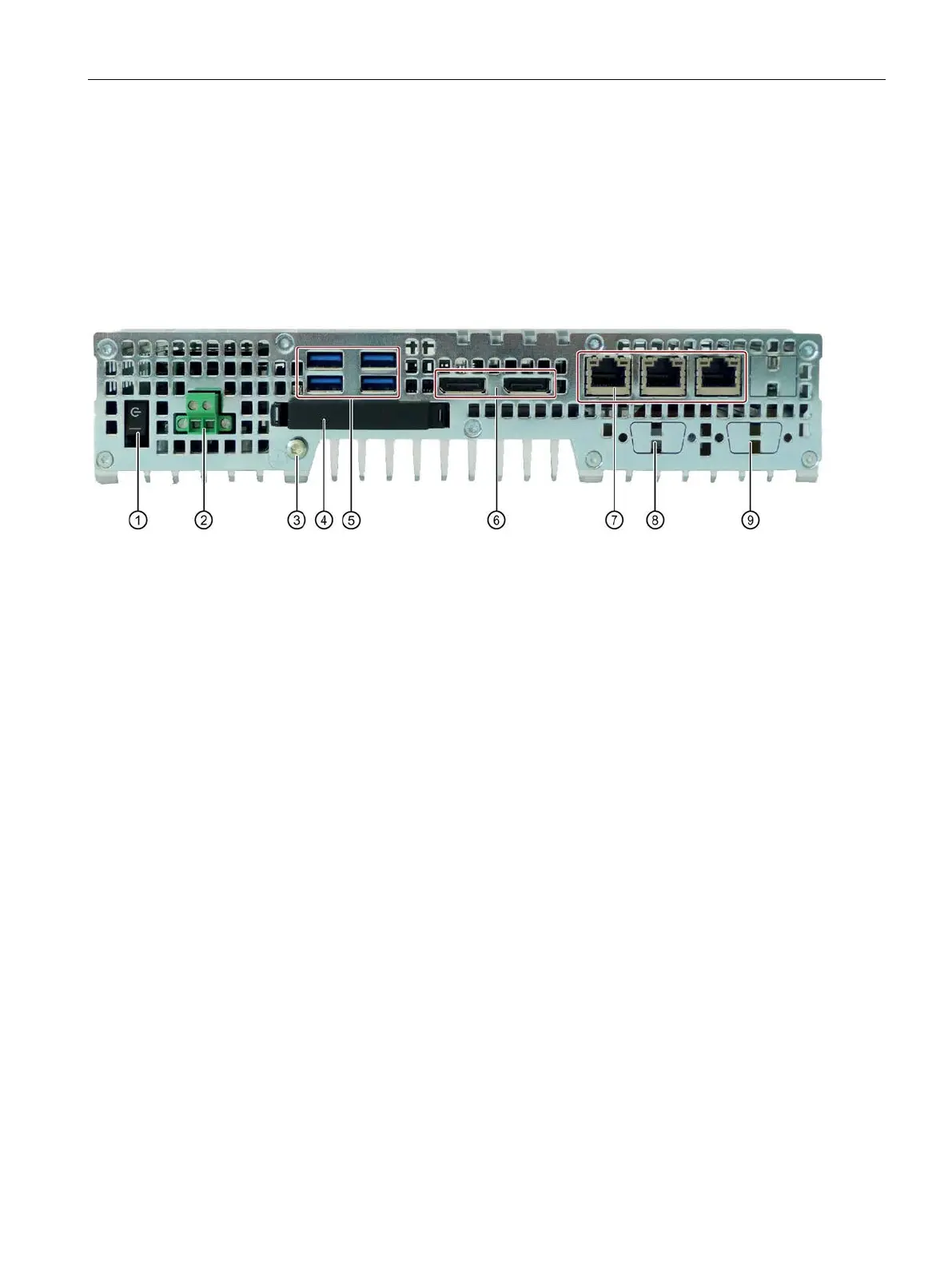

Interfaces and operating elements
On/off switch The on/off switch does not isolate the device from the power supply. Position
"OFF", when the "_" symbol is pressed. Position "OFF" is the delivery state.
Protective conductor terminal
Slot for CFast card with cover
USB 3.0 high current, backward compatible with USB 2.0/1.1
DisplayPort connection for digital monitor
3 × Ethernet / 2 x Ethernet
RJ45 interface (10/100/1000 Mbps); 2 x RJ45 (optional)
Serial interface (optional)
Serial interface (optional)
