Installing and connecting the device
3.2 Installing the device
SIMATIC IPC427E
32 Operating Instructions, 09/2017, A5E37454814-AB
3.2.2.2
Mounting on DIN rails
Requirement
DIN rail, 35 mm standard profile
The DIN rail is installed at the installation site.
Note
Ensure that the wall or ceiling can hold four times the total weight of the device including DIN
profile rail and additional expansion cards. See
Mounting instructions (Page 29).
Procedure

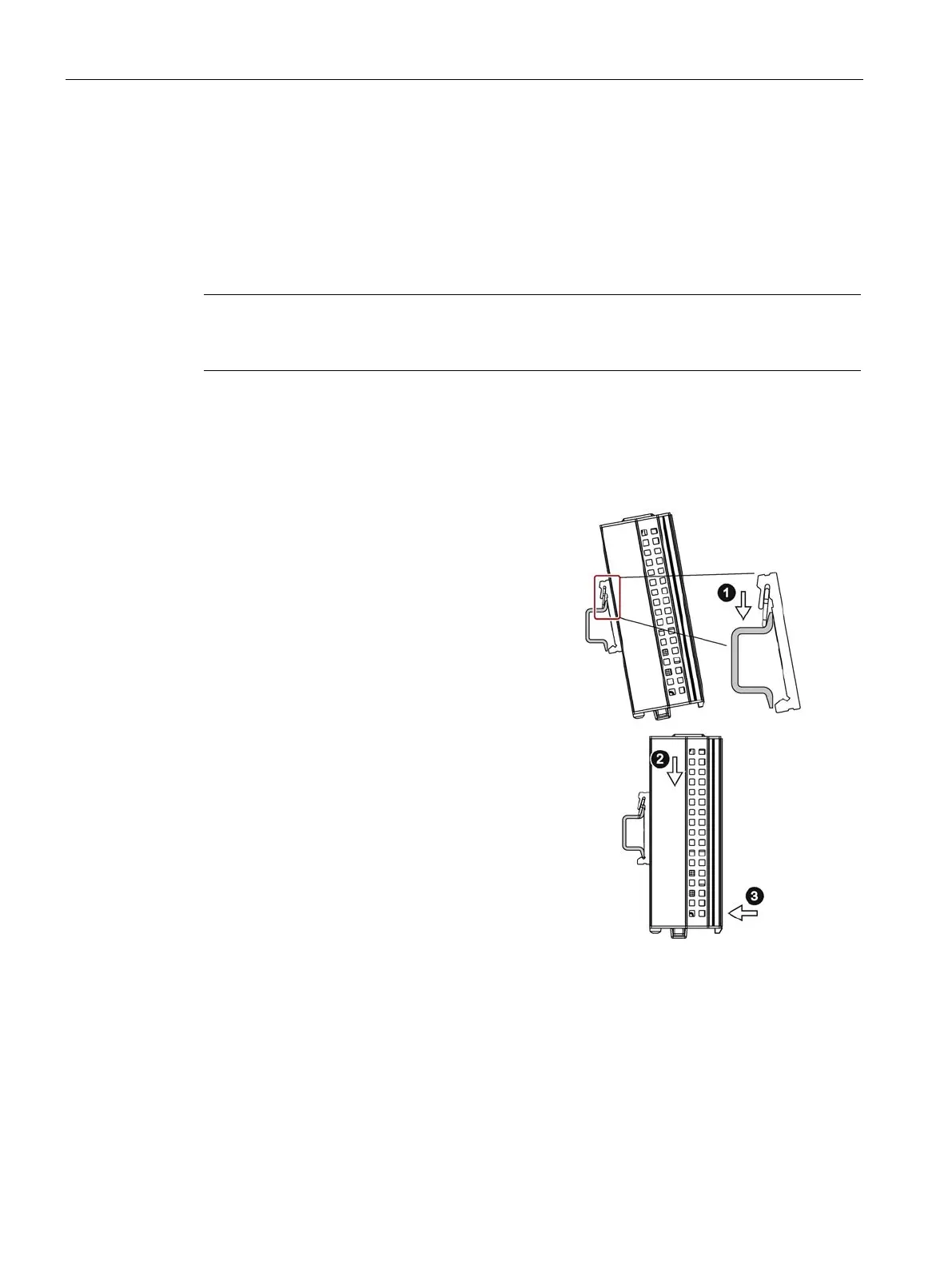

Installation
1.
Place the device and rail clip on the u
p-
per edge of the standard profile rail at the
position shown.
2.
Push down the device. Once the rail clip
is over the bottom edge of the
standard
profile rail, push the device towards the
standard profile rail. You will hear the
device click into place.
Removal
1. Push down the device until it is released by the rail clips.
2. Swing the device out of the standard profile rail.
3. Lift the device up and off.
