Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC427E
28 Operating Instructions, 09/2017, A5E37454814-AB

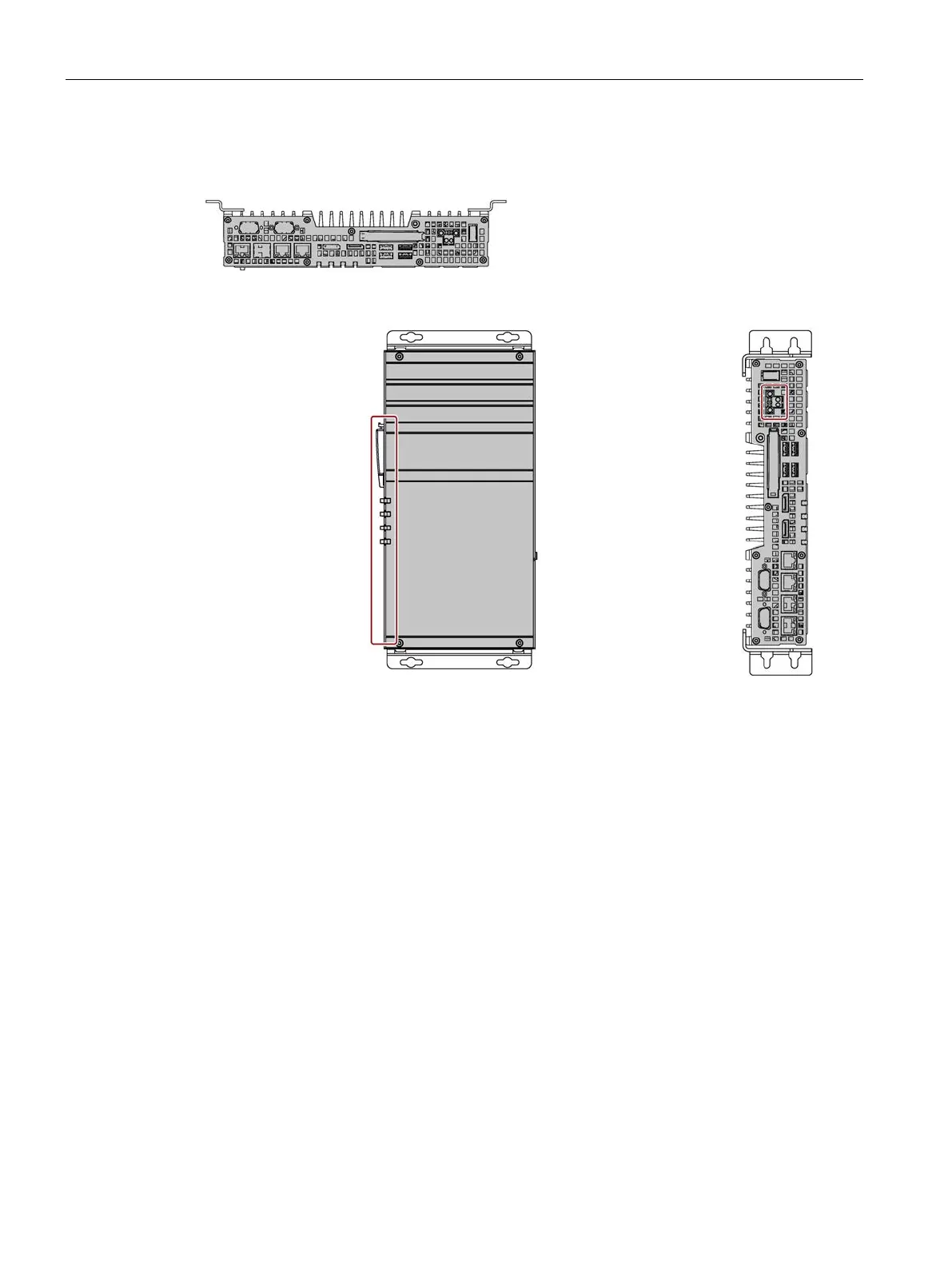

The device can be mounted vertically on DIN rails or on the wall. The figure shows the
interfaces on the front.
The vertical mounting options are as follows:
The interfaces are at
the left.
The interfaces are
at the front. The
power supply co
n-
Observe the permitted temperature range for operation in the respective mounting position
as defined in "Technical specifications (Page 105)".
