Overview

1.2 Design of the built-in units

SIMATIC IPC477E

12 Operating Instructions, 12/2016, A5E37455003-AB

1.2

Design of the built-in units

1.2.1

Devices with resistive single touch screen

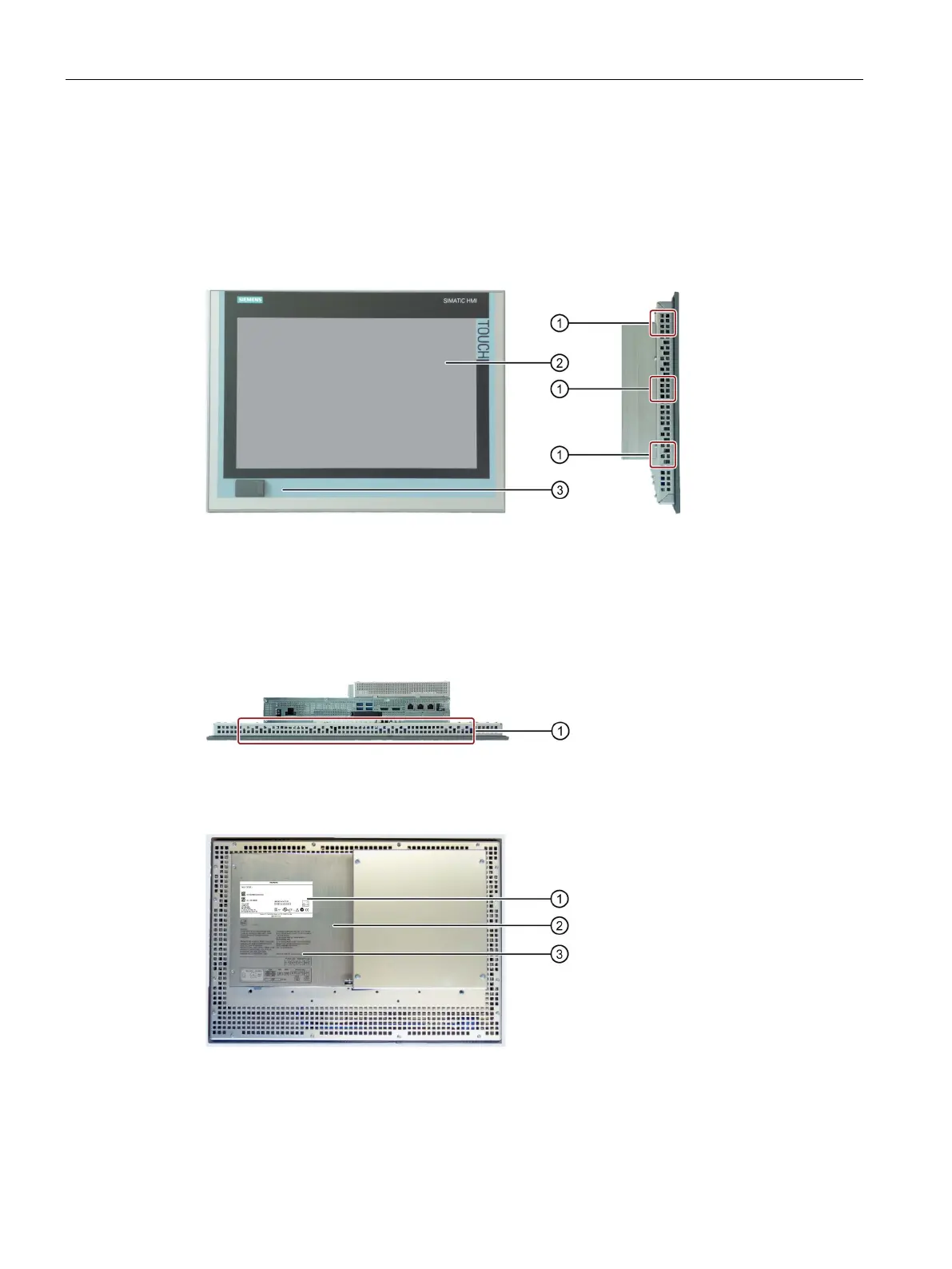

Front and side views

①

Recesses, each of which for a mounting clip

②

Display with touch screen

③

USB socket

Bottom view

The bottom view shows a device with 24 V DC power supply.

①

Recesses for one mounting clip each

Rear view

①

Rating plate

②

Rear panel / rear panel of expansion

③

Labeling for the interface arrangement
