Maintaining and servicing your device
7.4 Installing and removing hardware
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
95
This chapter applies to devices with hard disk drive.
● The device is disconnected from the power supply.
● The device is open, see the section "Opening the device (Page 79)".
● Hard disk drive
● T10 screwdriver
Remove the marked screws.
Carefully remove the base plate with the
hard disk fastened to it.

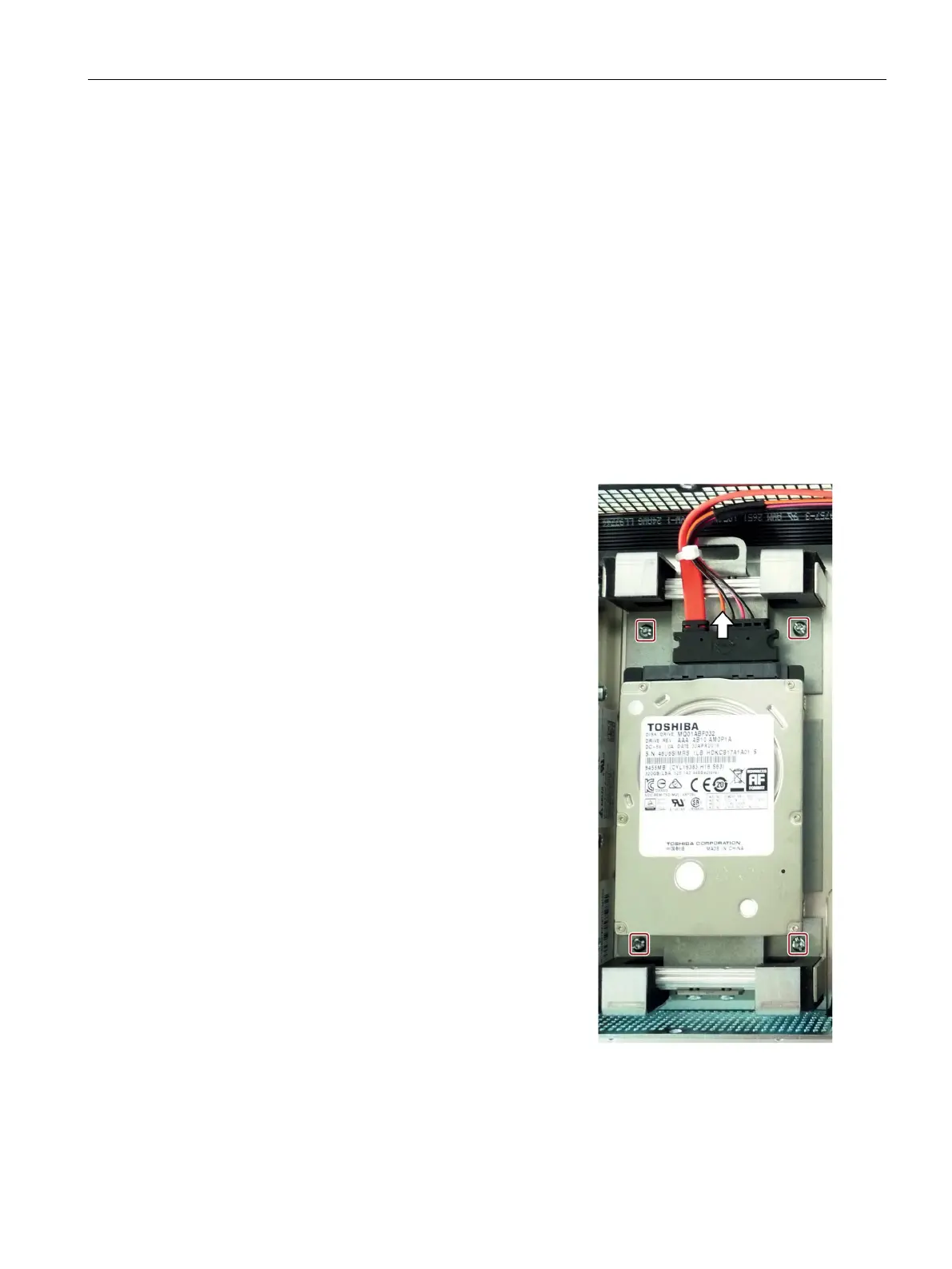

Remove the connector in the direction of
the arrow.
Detach the hard disk from the base plate.
Remove the four screws that connect the
hard disk and the base plate.
