1.2 Design of the built-in units
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
15
1.2.4

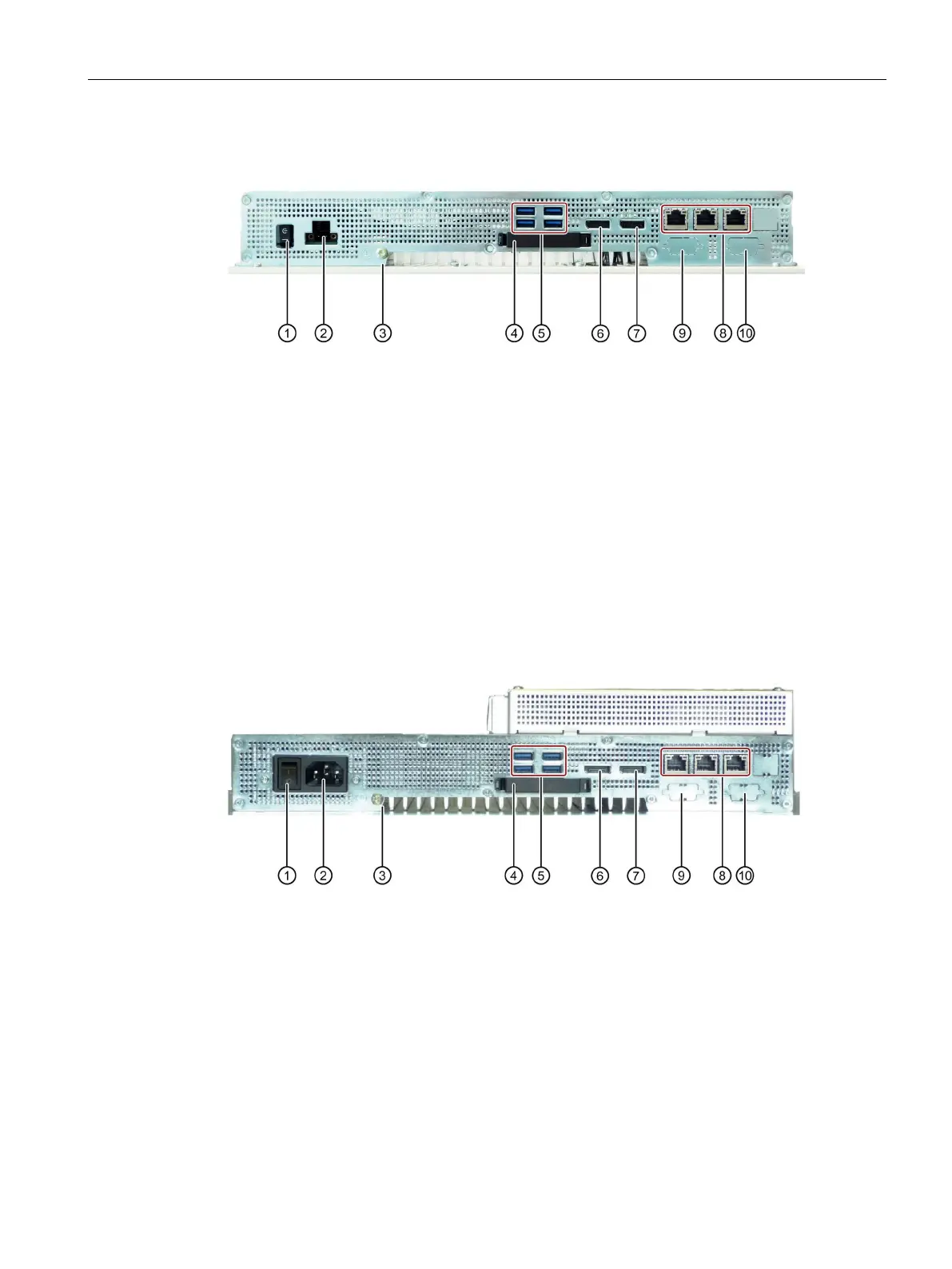

Interfaces and operator controls for devices with 24 V DC power supply
①
On/Off switch
②
24 V DC power supply
③
Protective conductor connection
④
Slot for external CFast card
With cover
⑤
4 x USB port
USB 3.0 high speed/high current
⑥
Display port
⑦
Display port
⑧
3 × Ethernet port
3 x RJ45 (10/100/1000 Mbps)
⑨
COM1 port (optional)
Serial interface, 9-pin D-Sub pin
⑩
COM2 port (optional)
Serial interface, 9-pin D-Sub pin
1.2.5
Interfaces and operator controls for devices with 100-240 V AC power supply
①
On/Off switch
②
100-240 V AC power supply
③
Protective conductor connection
④
Slot for external CFast card
With cover
⑤
4 x USB port
USB 3.0 high speed/high current
⑥
Display port
⑦
Display port
⑧
3 × Ethernet port
3 x RJ45 (10/100/1000 Mbps)
⑨
COM1 port (optional)
Serial interface, 9-pin D-Sub pin
⑩
COM2 port (optional)
Serial interface, 9-pin D-Sub pin
