Siemens SIMATIC IPC477E - Replacing the SSD (devices with 15, 19 or 22 display)

Maintaining and servicing your device
7.4 Installing and removing hardware
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
93
7.4.1.2
Replacing the SSD (devices with 15", 19" or 22" display)
Depending on the version ordered, an SSD may be installed in the touch device with 15",
19", or 22" display.
Requirement
● The device is disconnected from the power supply.
● The device is open, see the section "Opening the device (Page 79)".
● SSD
● T10 screwdriver
Procedure
Removal

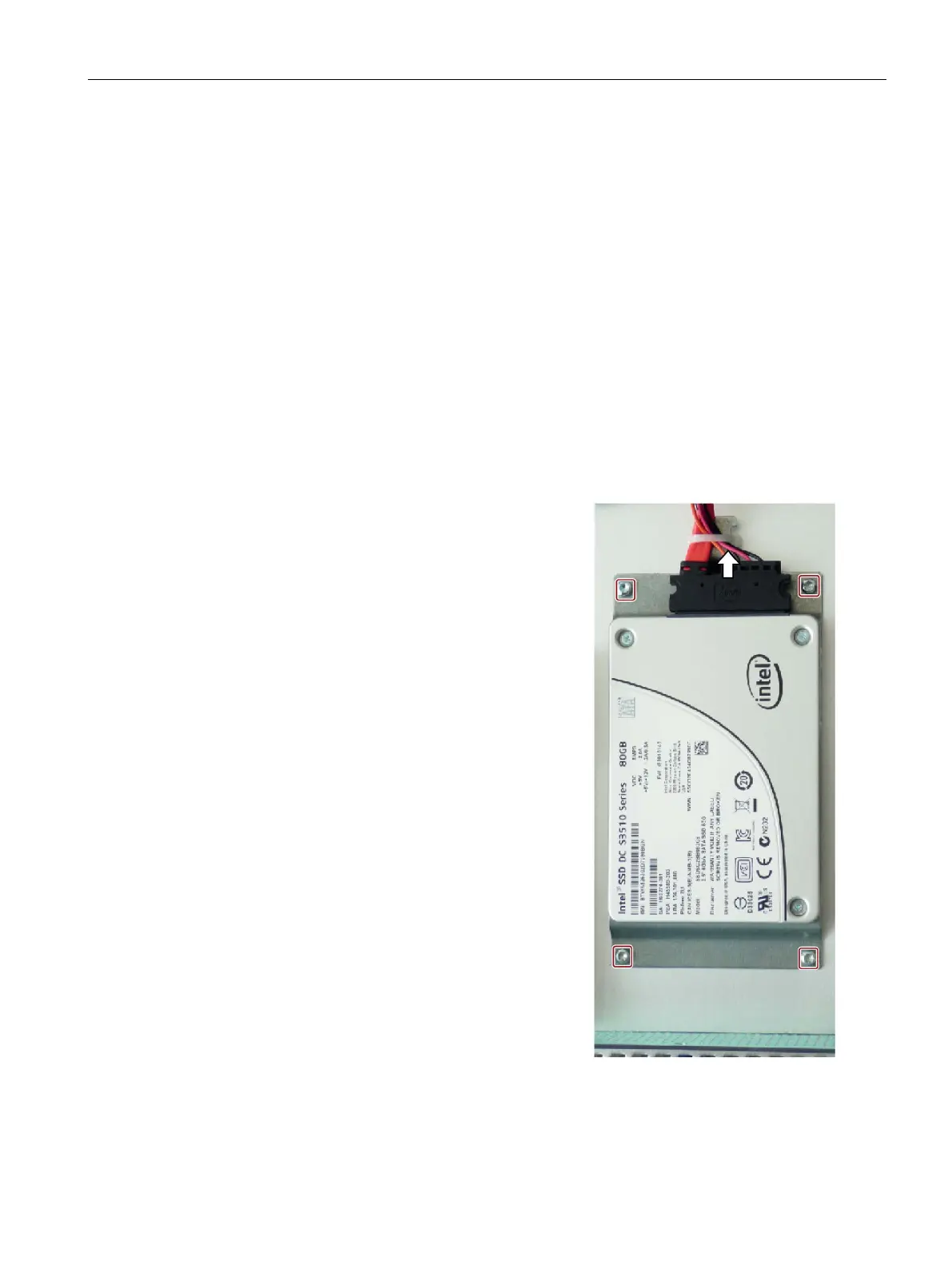

1.
Remove the marked screws.
2.
Remove the connectors from the port.
