Siemens SIMATIC IPC477E - Dimension Drawing of 22 Device with Capacitive Multi-Touch Screen

Technical information
8.3 Dimension drawings
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
121
8.3.3

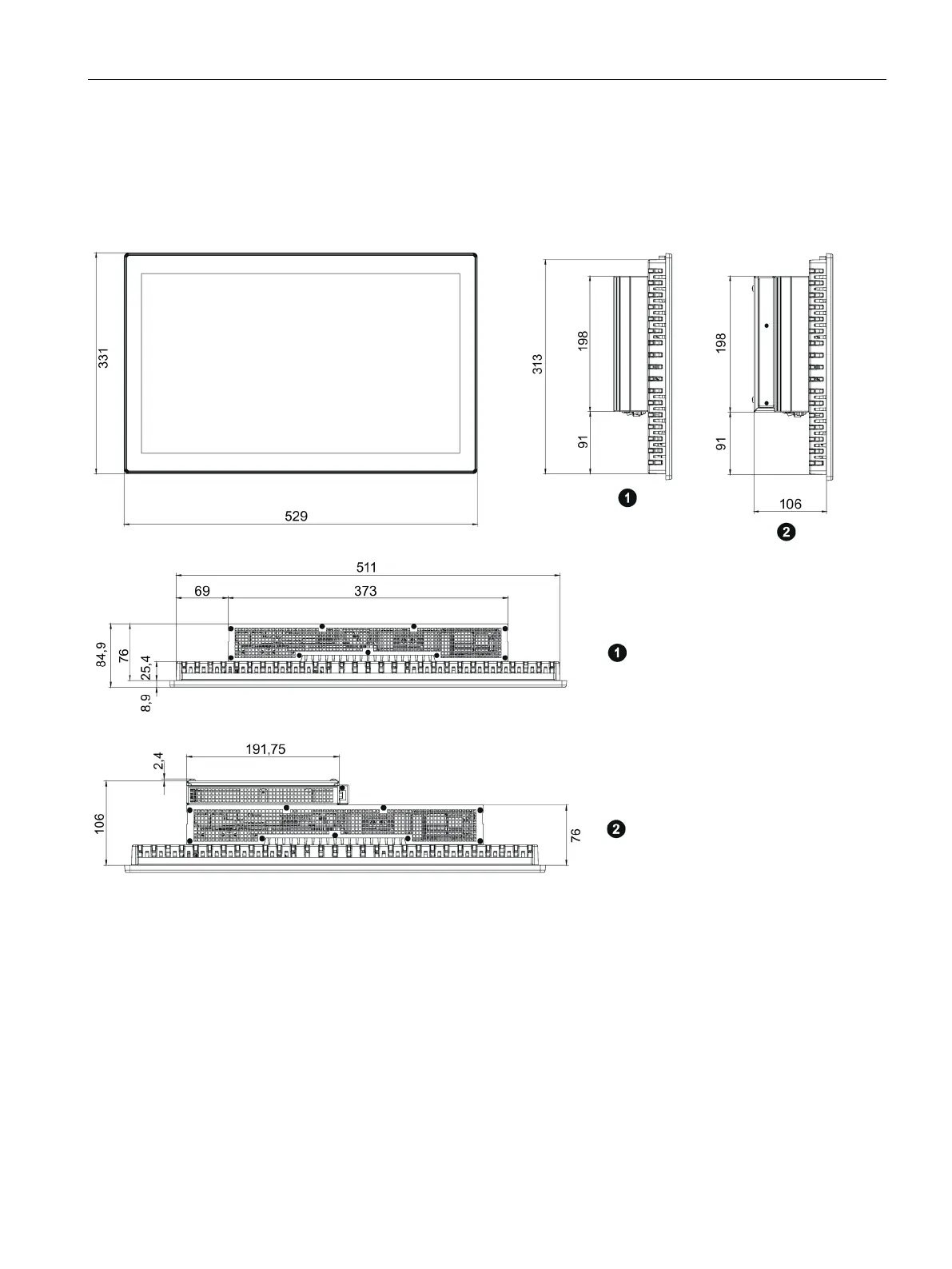

Dimension drawing of 22" device with capacitive multi-touch screen
The figure shows the front view and directly associated side view and top view of a device
without PCI expansion. The side view and top view of a device with PCI expansion are
shown beyond at a distance.
1
Device without PCI expansion
2
Device with PCI expansion
