Expanding the device and assigning device parameters
6.3 Installing and removing a PCIe card (built-in units with PCIe card)
SIMATIC IPC477E
Operating Instructions, 12/2016, A5E37455003-AB
83
6.3
Installing and removing a PCIe card (built-in units with PCIe card)
The following section describes the installation and removal of a PCIe card with devices that
are expanded only with a PCIe card.
Requirements
● The device is disconnected from the power supply.
● The device is removed.
● 1 PCIe card
● 1 T10 screwdriver
Procedure
NOTICE
Note the protective measures required when working with ESD in the section
"ESD guideline (Page 114)".

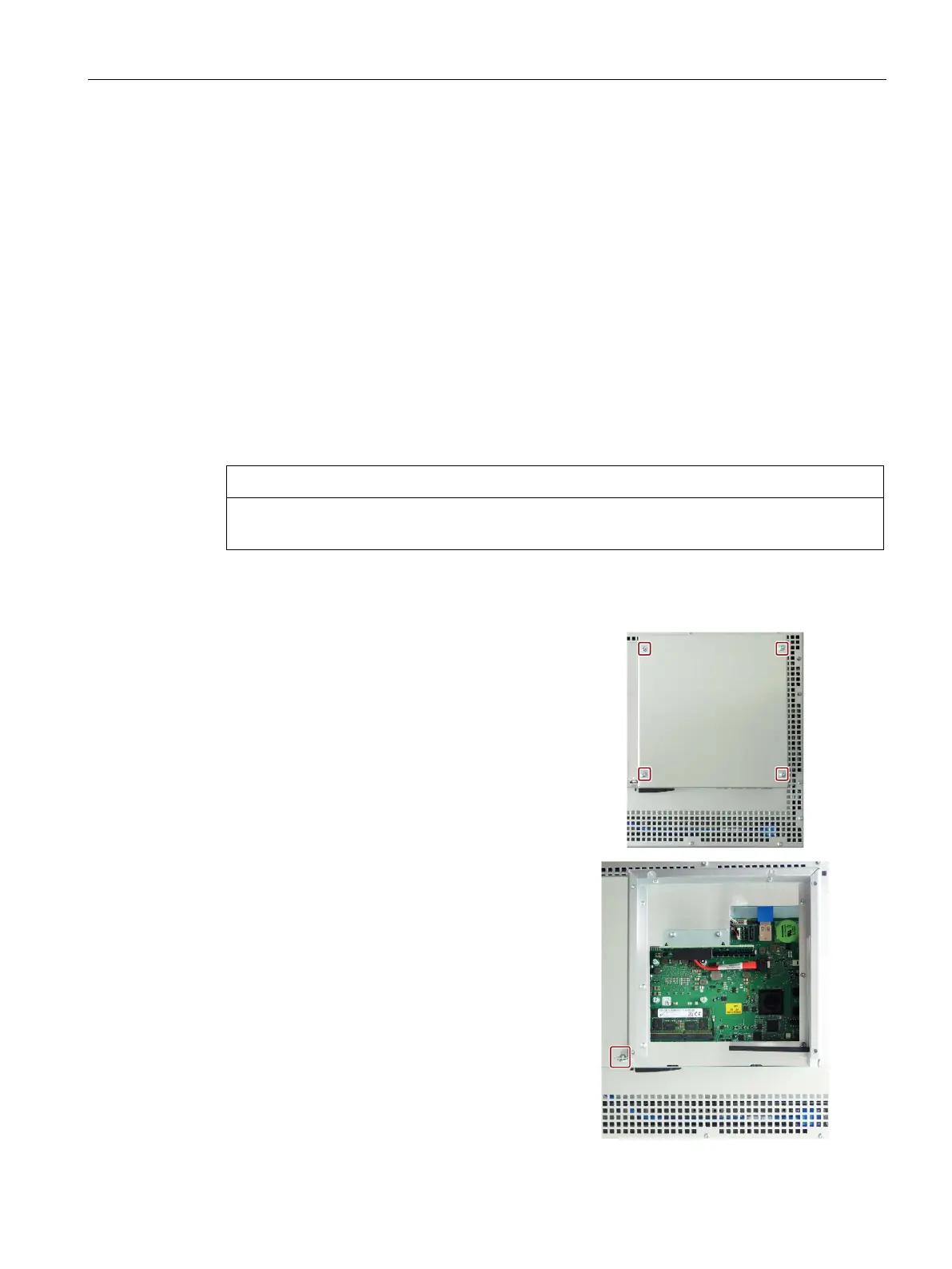

Installation
1.
Remove the marked screws and take off
the rear panel of the of the enclosure.
2.
Remove the marked screws and pull out
the blanking plate.
