Siemens SIMATIC IPC477E User Manual

Expanding the device and assigning device parameters
6.3 Installing and removing a PCIe card (built-in units with PCIe card)
SIMATIC IPC477E
84 Operating Instructions, 12/2016, A5E37455003-AB
3.

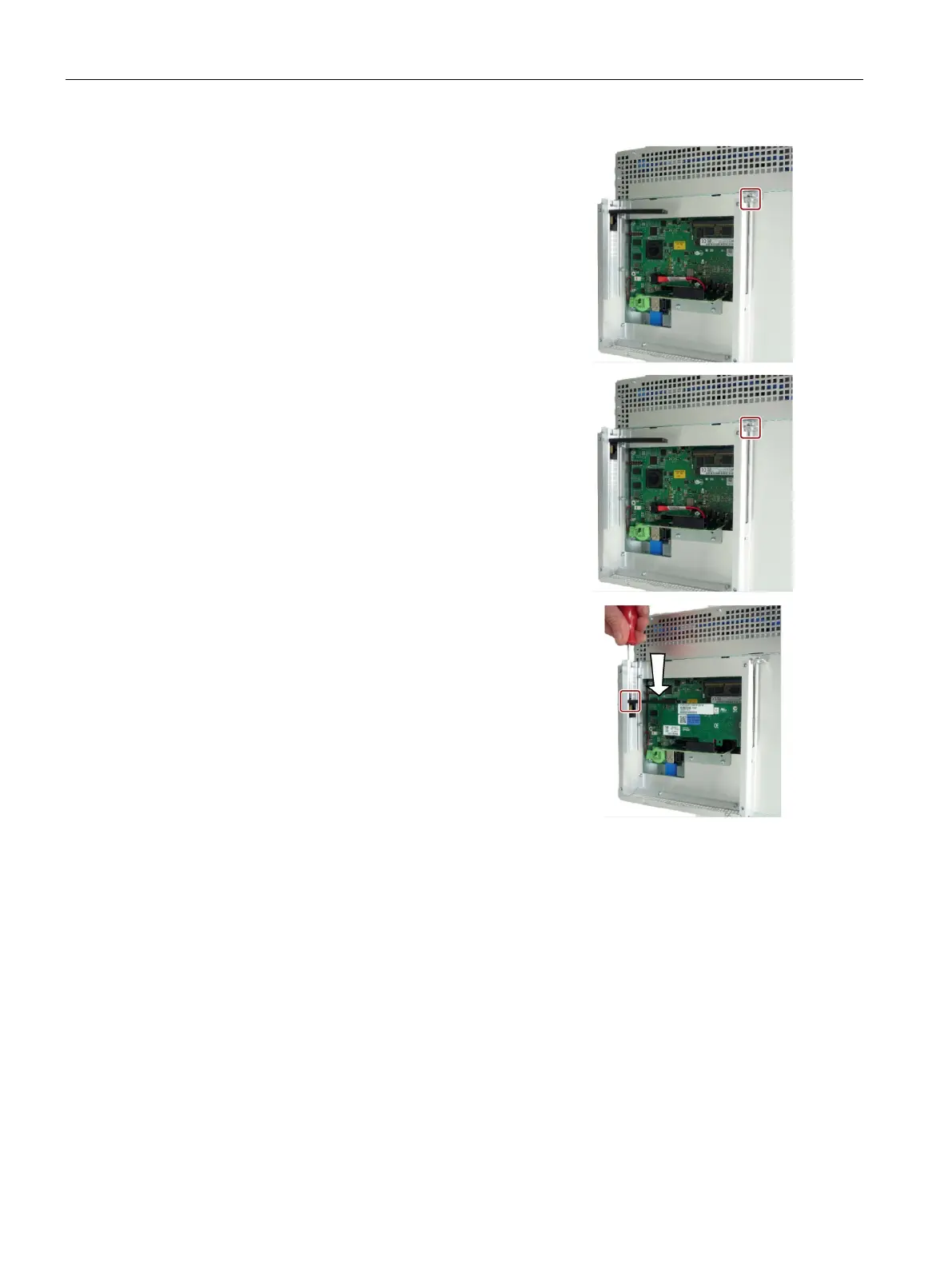

Loosen the marked screw of the PCIe
card holder and remove t
he masking
frame.
4.
Insert the PCIe card in the direction of the
arrow and secur
e this with the marked
screw.
5.
Push the PCIe card holder in the dire
c-
tion of the PCIe card and secure this with
the marked screw.
6.
Close the device.
Removal
Follow the steps for installation in reverse order.
