Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC477E
30 Operating Instructions, 12/2016, A5E37455003-AB
● Inclined installation in horizontal format with a vertical inclination of maximum ±45 °
In an inclined mounting position, the device enclosure satisfies the requirements of a fire
protection enclosure.

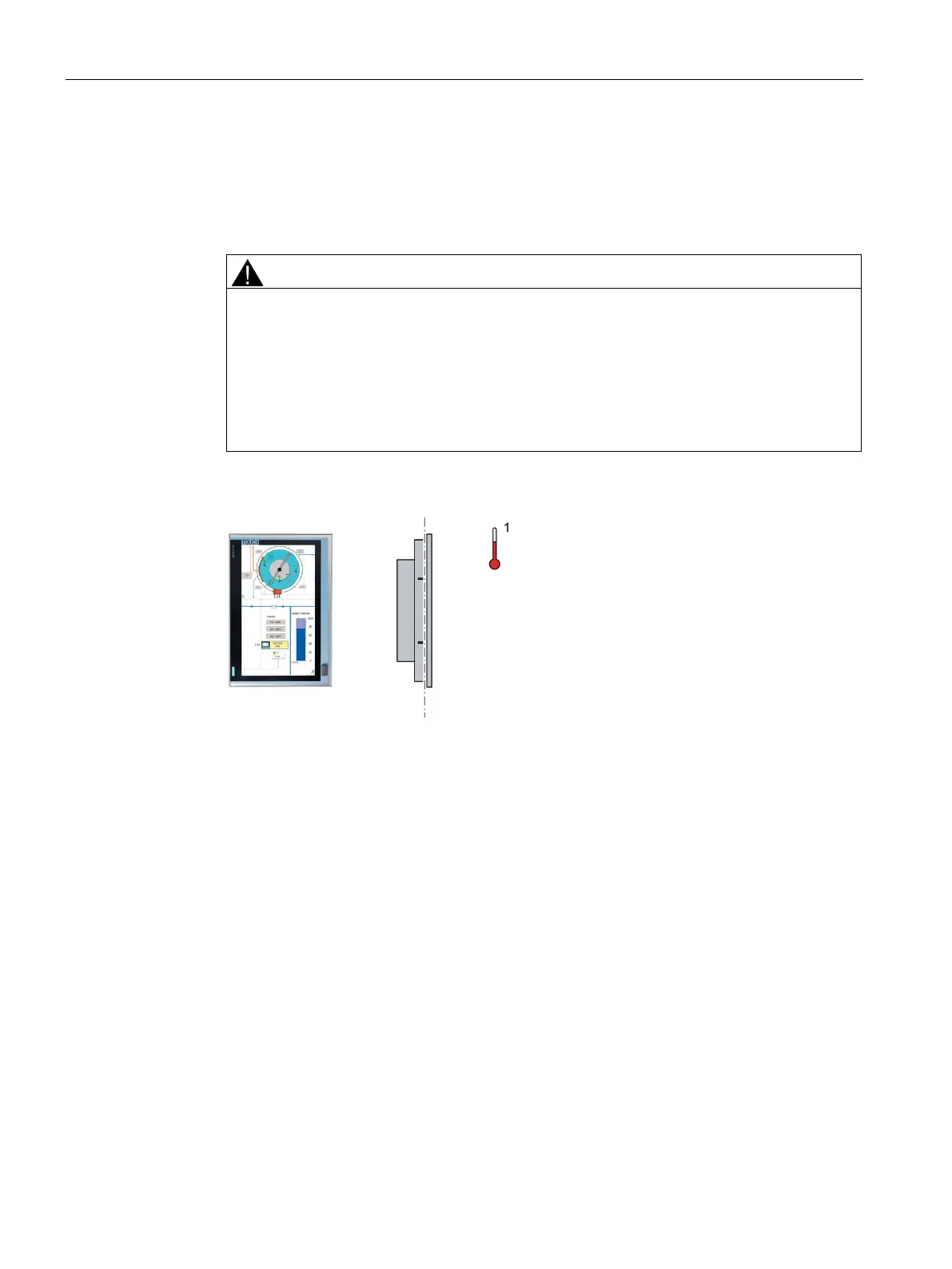

● Upright mounting in vertical format (only permitted for the built-in unit)
Fire protection enclosure requirement not fulfilled
In the "Upright mounting in vertical position" mounting position, the device enclosure
does not satisfy the requirement of a fire protection enclosure.
If you want to operate the built-in unit in this mounting position, check if the built-in unit
has to meet the requirement for a fire protection enclosure in the desired operating area.
If in doubt, install the built-in unit in an enclosure that is compliant with the requirements
of sections 4.6 and 4.7.3 of the IEC/UL/EN/DIN-EN 60950-1 standard.
Display rotated 90° vertical from the standard position. The power supply is located at the
top.
1
For temperature specifications, see section "Environmental conditions (Page 133)".
